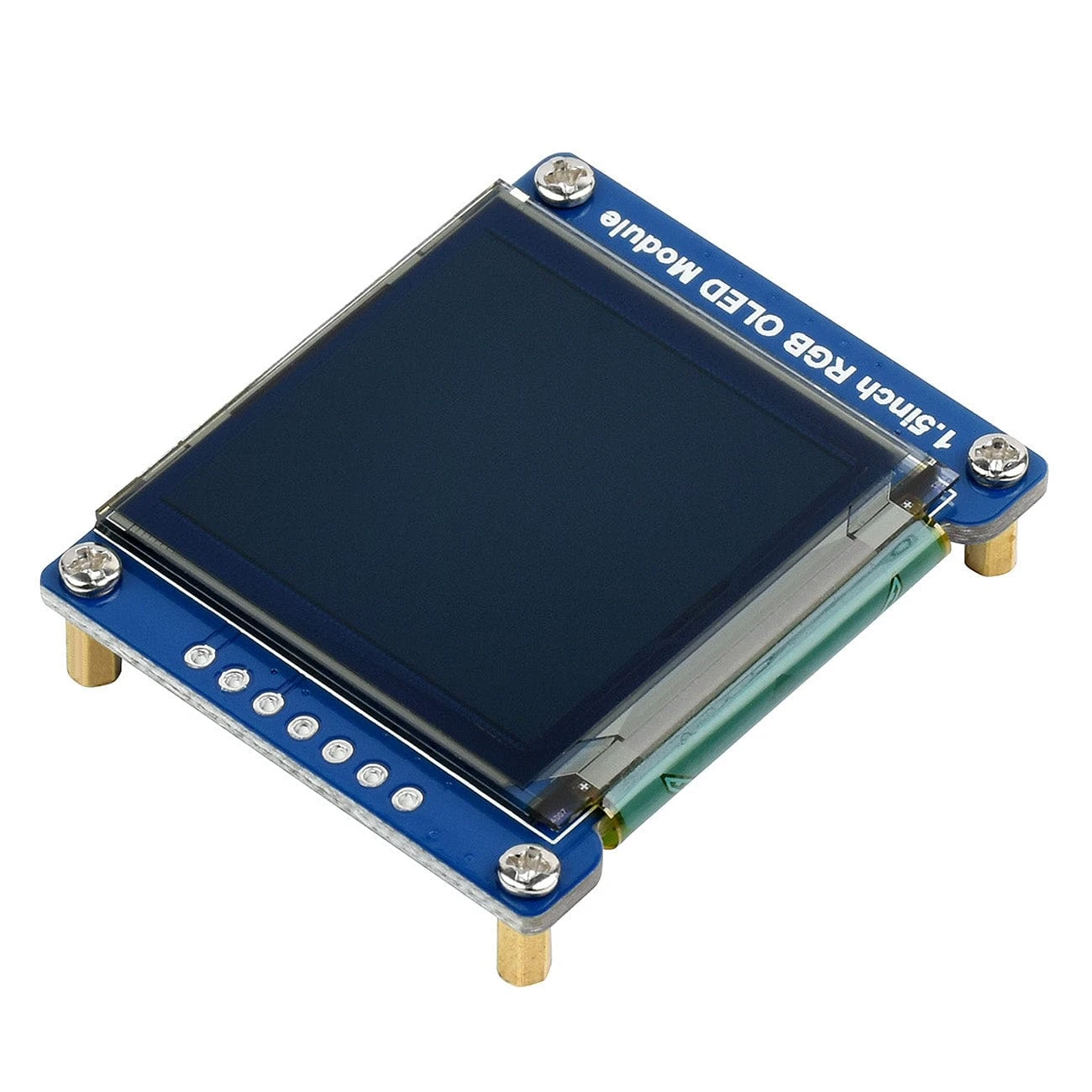

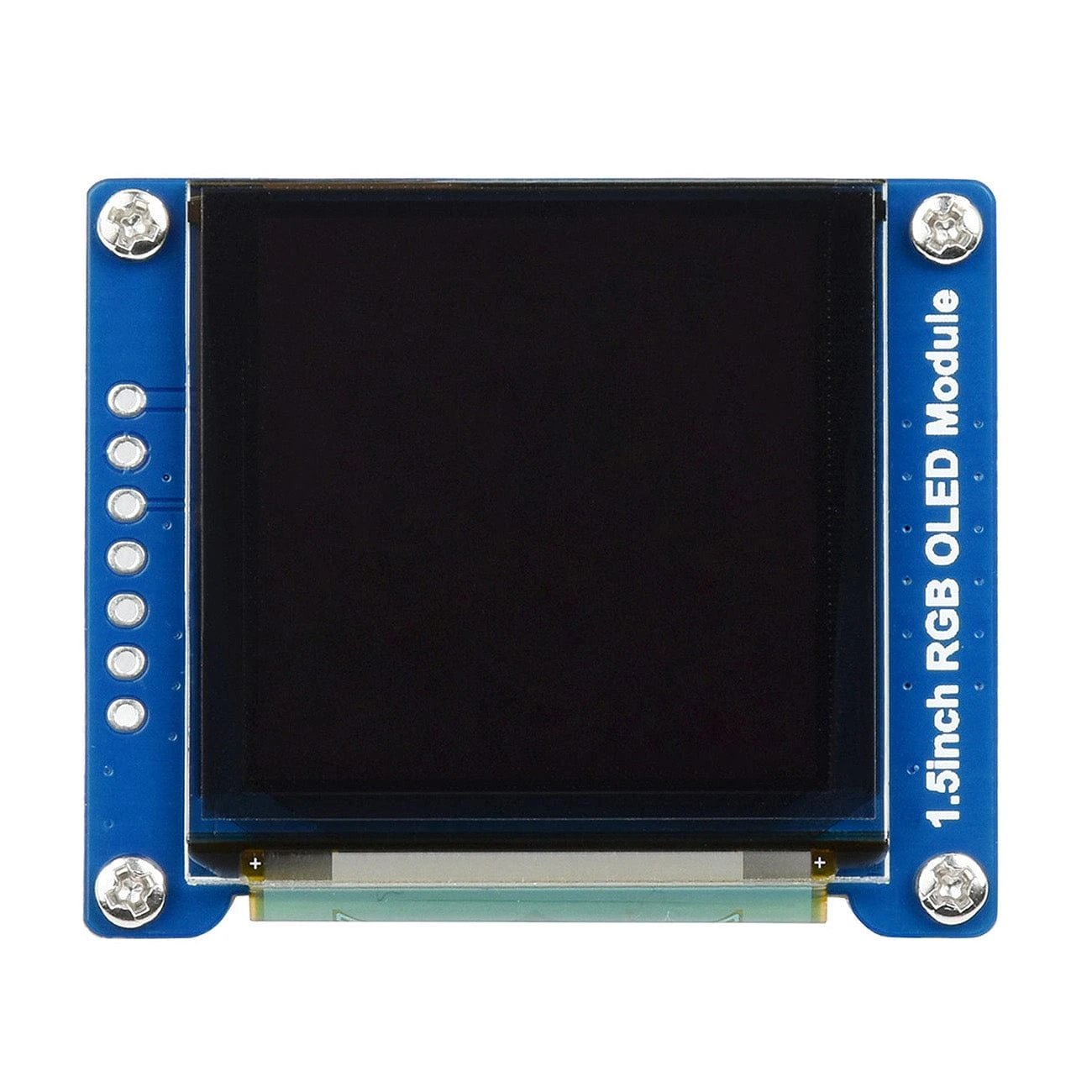

1.5″ RGB OLED Display Module – 16-bit High Colour (128×128)

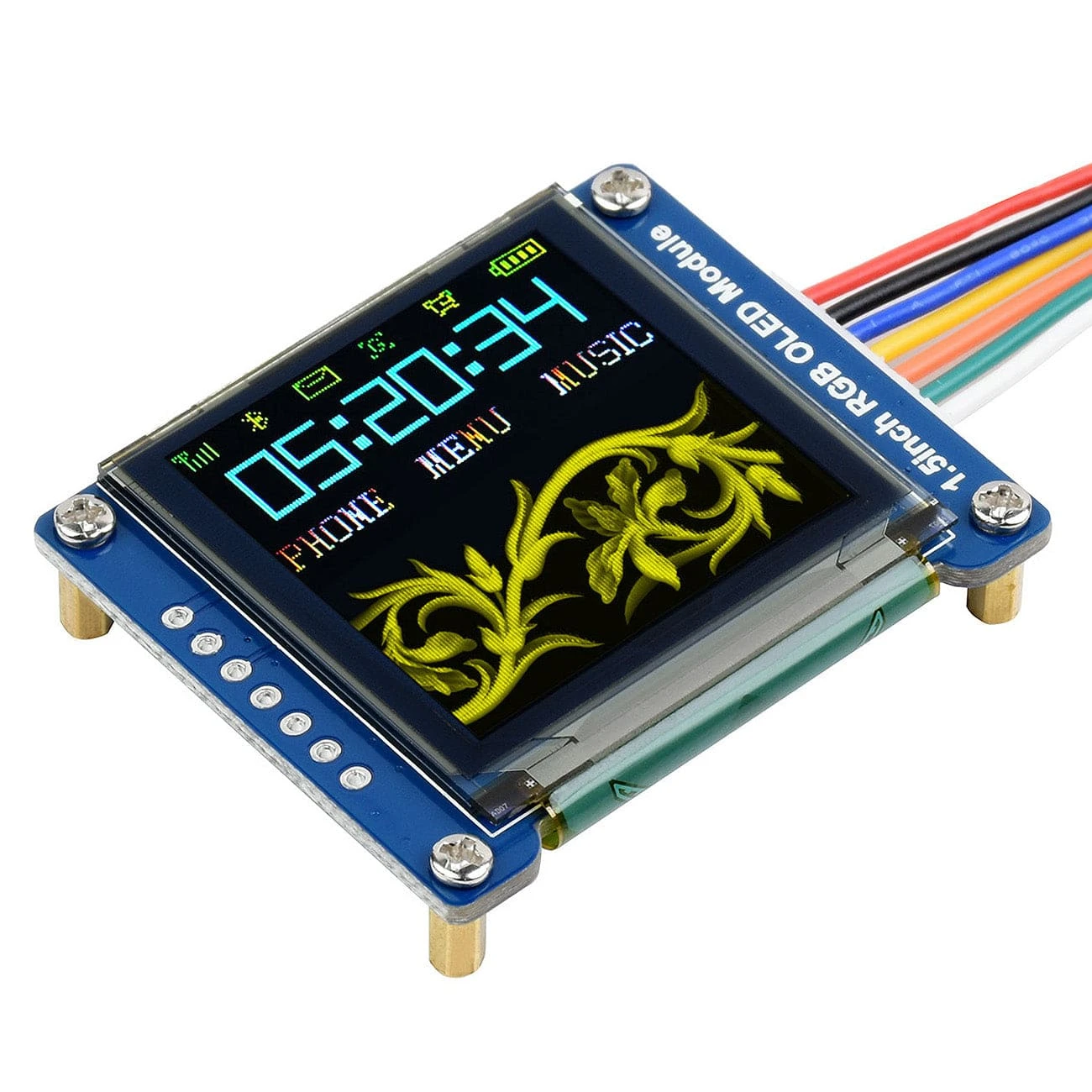

This is a stunning RGB OLED Display Module measuring 1.5″ diagonally with 128×128 pixels. This high resolution combined with the 16-bit high colour (65K colours) offers incredibly clear and colourful images.

The module has an embedded controller communicating via SPI interface – use it with your favourite SPI-ready development board, such as the

Raspberry Pi

or

Arduino

(

demo code

available)

Features

• 128×128 high resolution, 65K colours – clearly displays colourful images
• Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
• Comes with

  online development resources and manual

  (examples for Raspberry Pi/Arduino)

Package Contents

• 1x 1.5″ RGB OLED Module
• 1x PH2.0 7-pin wire

Resources

• Product Wiki and user guide

Specifications

• Driver: SSD1351
• Interface: 4-wire SPI, 3-wire SPI
• Display colour: RGB, 65K colours
• Resolution: 128×128
• Viewing angle: >160°
• Operating voltage: 3.3V / 5V
• Dimension: 44.5 x 37 (mm)

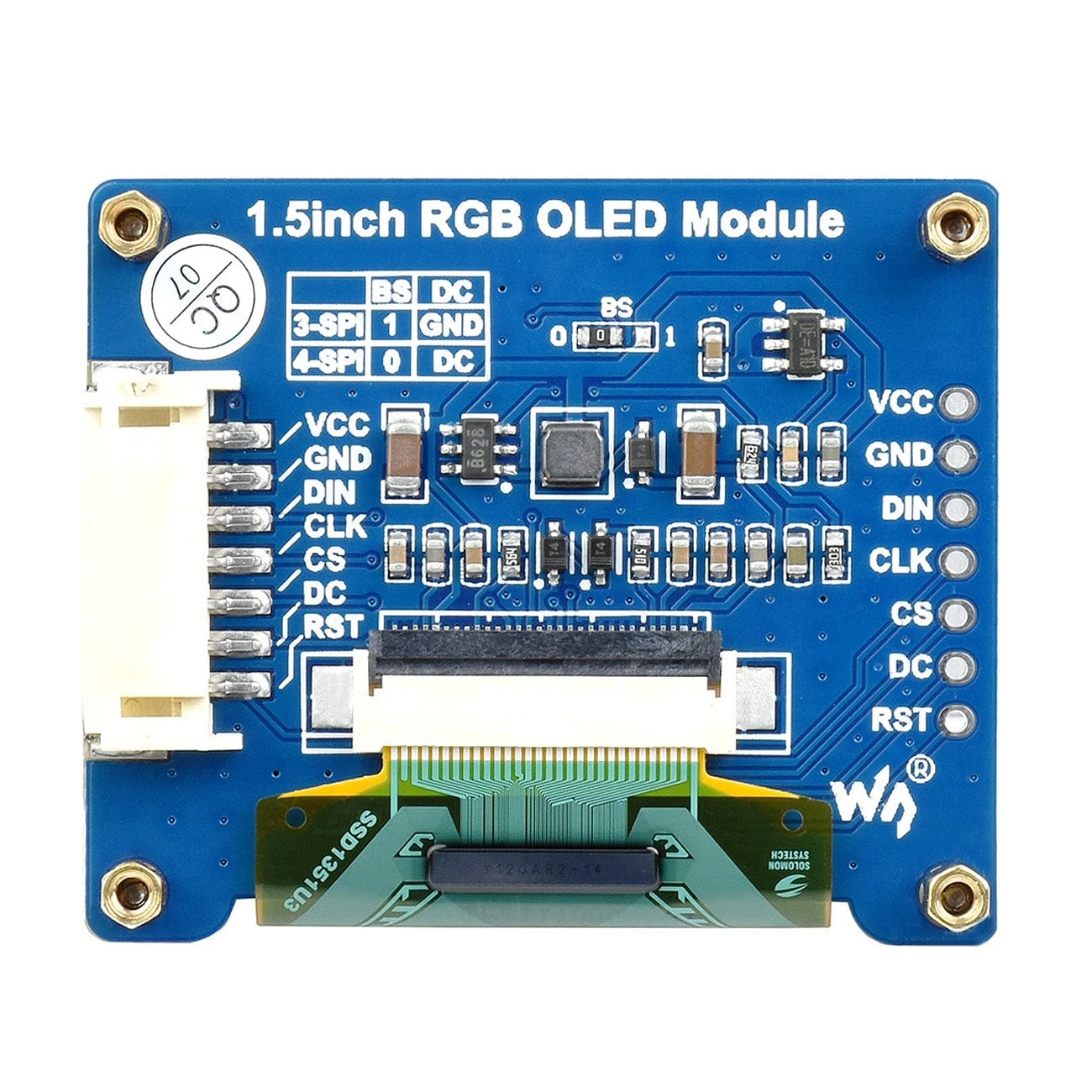

Interface

SYMBOL	DESCRIPTION
VCC	Power (3.3~5V input)
GND	Ground
DIN	Data input
CLK	Clock data input
CS	Chip selection, low active
DC	4-wire SPI: Data/Command selection (high for data, low for command) 3-wire SPI: Connects to GND, keeps low
RST	Reset, low active

There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI:

	BS	DC
4-wire SPI	0	DC
3-wire SPI	1	Connects to GND
