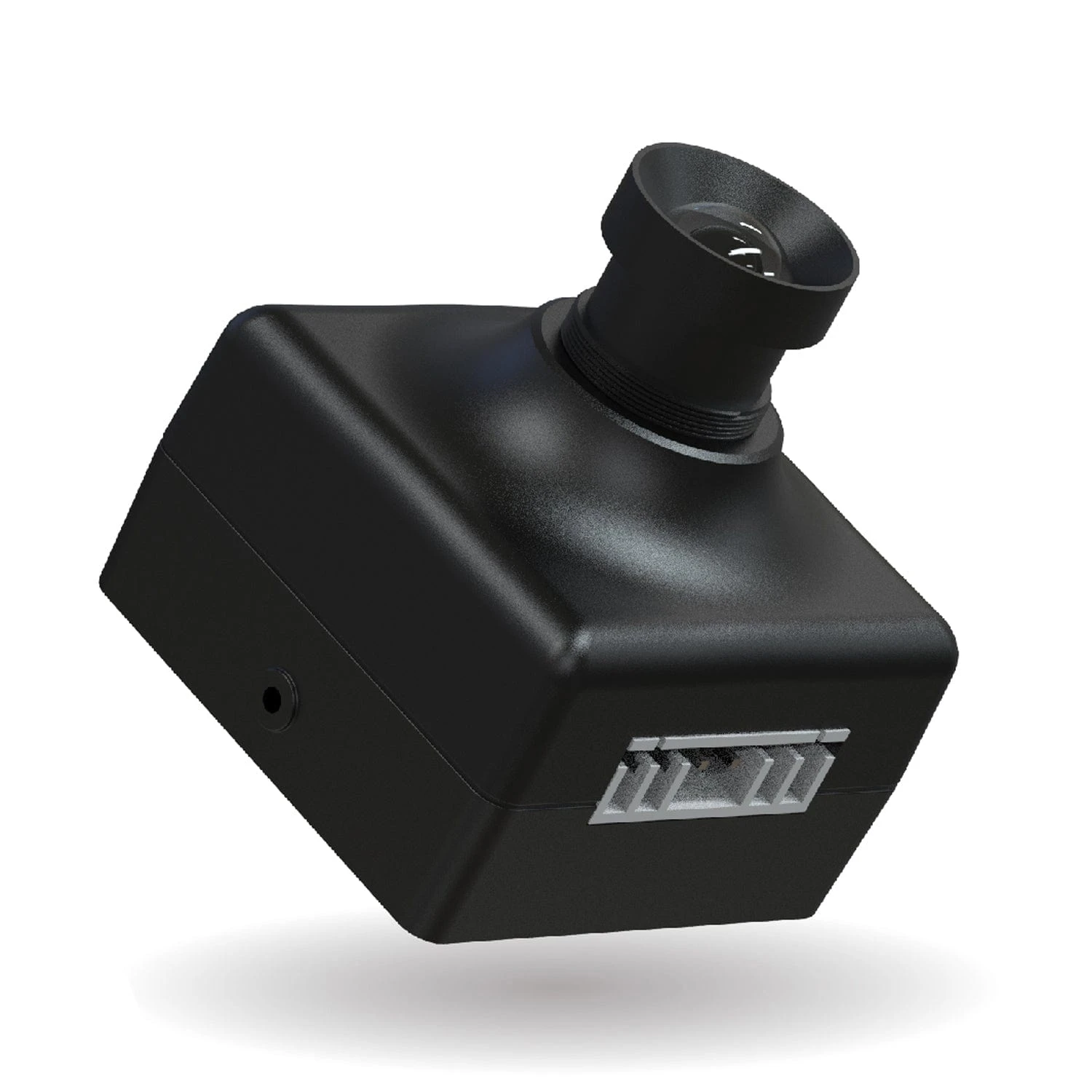

This NoIR SPI Camera Module is the ultimate imaging solution for low-light environments, and space-constrained projects, and offers exceptional versatility and image quality. It comes equipped with an alternative M12 lens (NoIR) featuring a 75-degree horizontal field of view (HFOV) specifically designed for low-light applications. High-level commands are built into the module, allowing you to manipulate camera settings through API access. It’s as intuitive as using a DSLR camera, with the convenience of button clicks for quick adjustments.

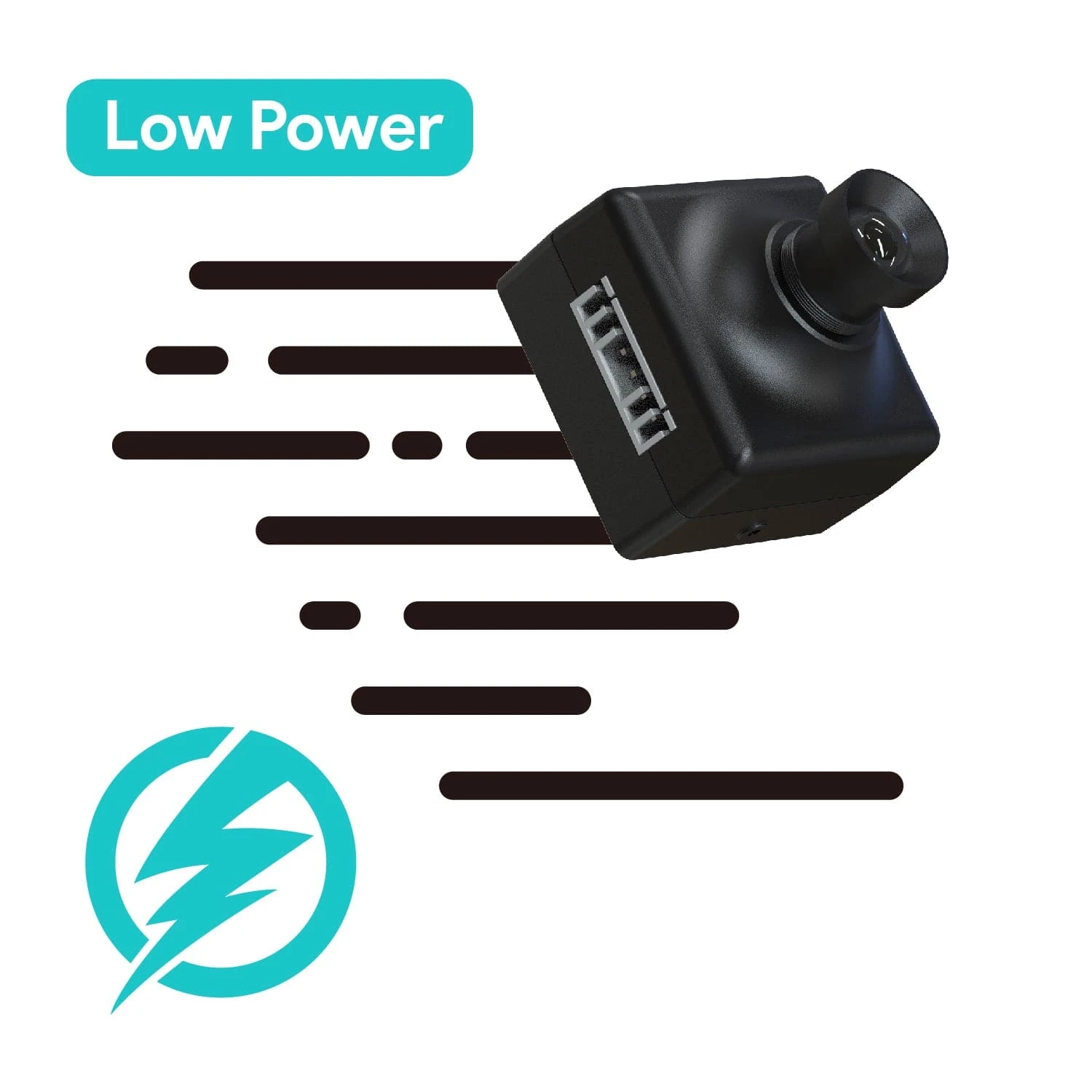

This module offers a rapid 94ms wake-up time, ensuring that you’re always ready to capture the perfect shot, and it keeps power consumption low, consuming as little as under 200mw to use it for longer on a single charge. Designed to work seamlessly with any microcontroller supporting a standard SPI interface, this camera module is the perfect choice for various platforms, including
Arduino
,
Raspberry Pi
,
ESP32
, and more.
This SPI Camera Module ups its imaging game, with DSLR-like control, quick response, and compatibility with various microcontrollers, it’s the go-to solution for all your imaging needs, even in challenging lighting conditions.
You can find the normal lens version
here
Features

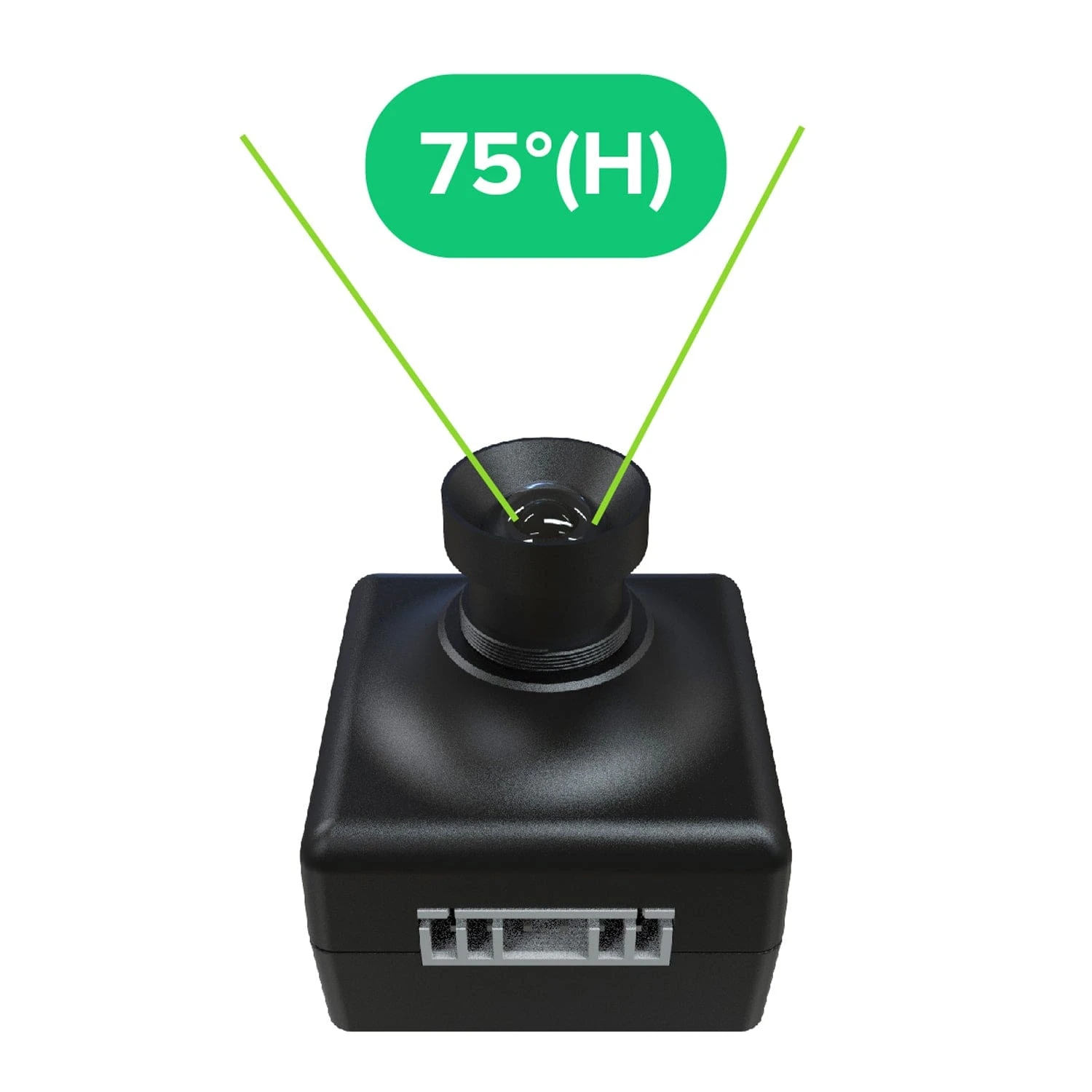

- Low Light Vision: Equipped with an alternative M12 Lens (NoIR) with 75-degree HFOV. Especially suitable for low-light environment applications, e.g. night/darkness vision.
- Easy Using: High-level commands are built in so you manipulate the camera through API access like using a DSLR camera via button clicks.
- Multiplexing: Up to 4 cameras running on a single MCU by using an adapter board. They capture at the same time with sequential readout.
- Open Source SDK: The SDK is fully open-source with an MIT license. A lean architecture with a hardware abstraction layer, enabling you to add a new MCU without effort.

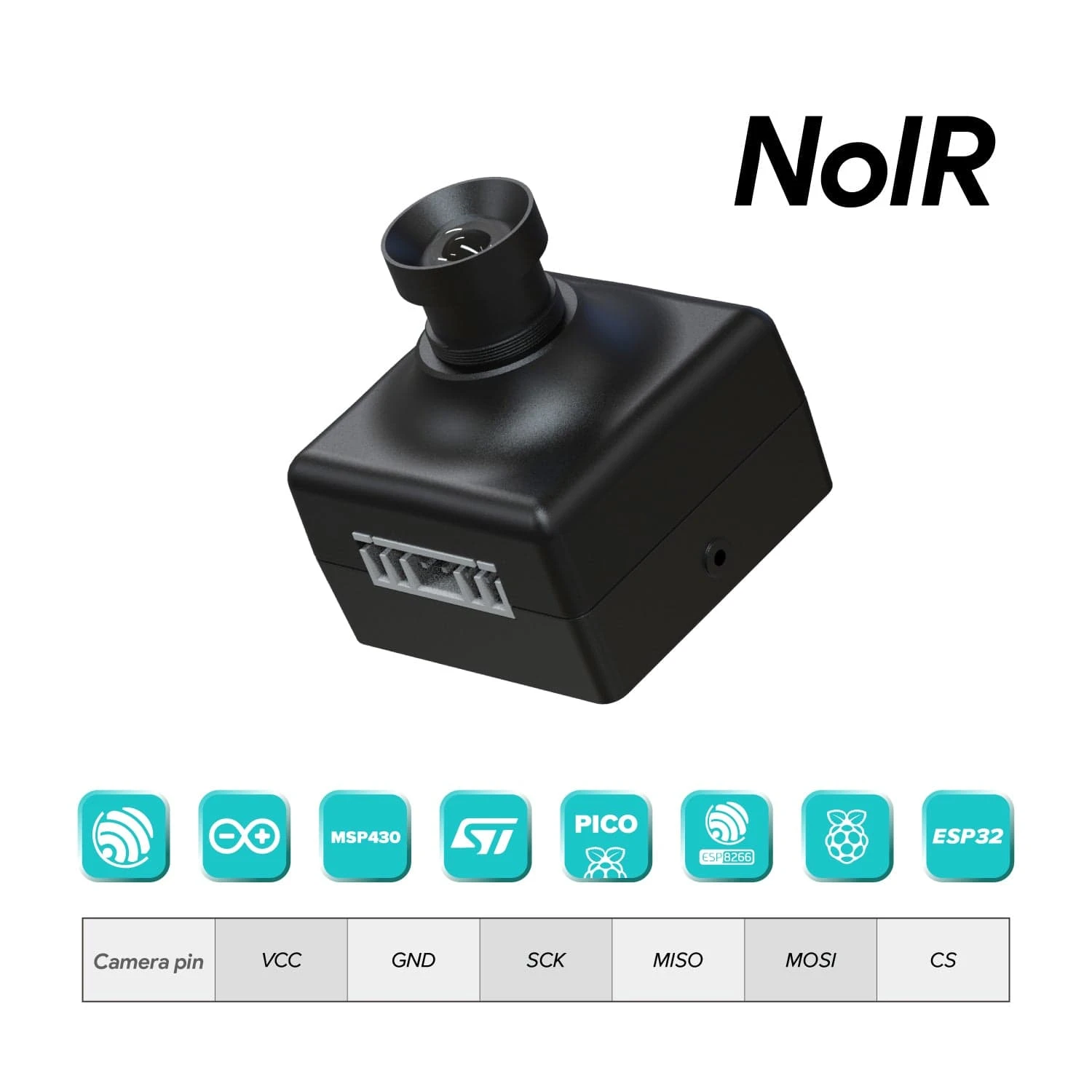

- One Fits All: It fits any microcontroller with a single standard SPI interface (either native or mimic). 8-bit, 16-bit, or 32-bit, ARM, RISC-V, or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, and countless more.
Specifications
| Optical Size | 1/4” |
| Speed | 8Mhz |
| Number of effective pixels | 2592 x 1944 |
| Power Supply | 3.3V/5V |
| Interface | SPI (4-wire) |
| Shutter Type | Rolling Shutter |
| Colour Filter | Colour |
| Power Consumption(ldle/Working) | 182mW-650mW |
| Field of View | 90°(D) x 75°(H) x 56.4°(V) |
| F.NO | F2.8 |
| Lens Type | M12 Lens (Distortion<1.53%) |
| EFL/BFL | 2.8mm/2.6mm |
| IR Sensitivity | without IR-cut filter, IR Sensitive |
| Focus Distance | 8cm-INF |
| Electric Current (Idle/Working) | 55mA-154mA |
| Output Format | RGB/YUV/JPEG |
| Camera Board Size | 33 x 33 x 17 mm |
| Connector No. | XH2.54-6P |
Resources
-
Arducam Mega SPI Camera
-
Quick Start for Mega Camera
-
Mega SPI Camera Application Note
-
Troubleshooting
Package Contents
- 1x Arducam Mega 5MP SPI Camera with M12 Lens (NoIR)
- 1x 300mm 6-pin cable
