ABS Case With 3.5″ TFT Touchscreen For Raspberry Pi 4 (480×320)

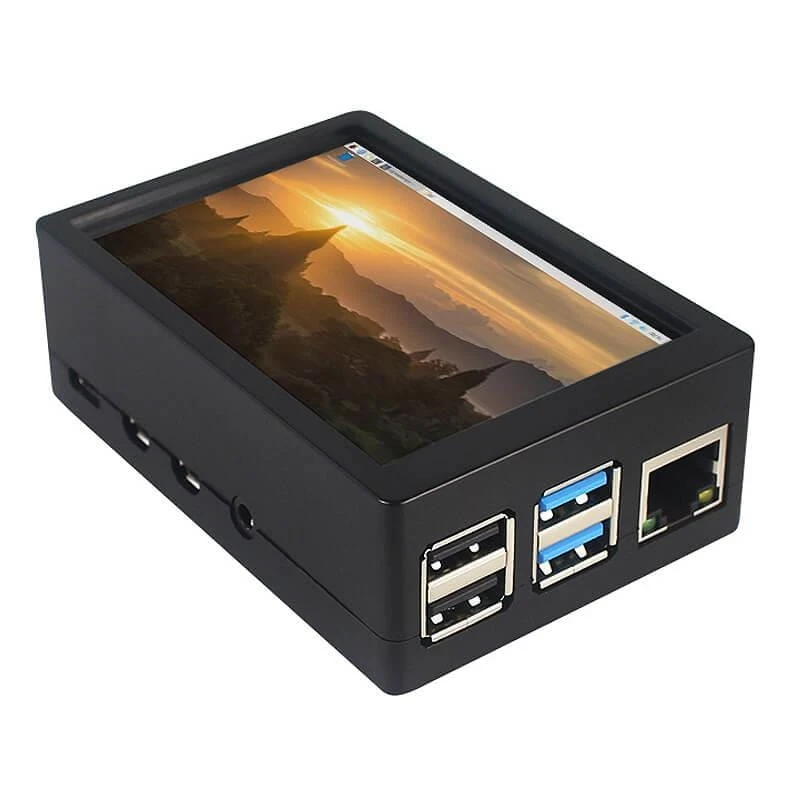

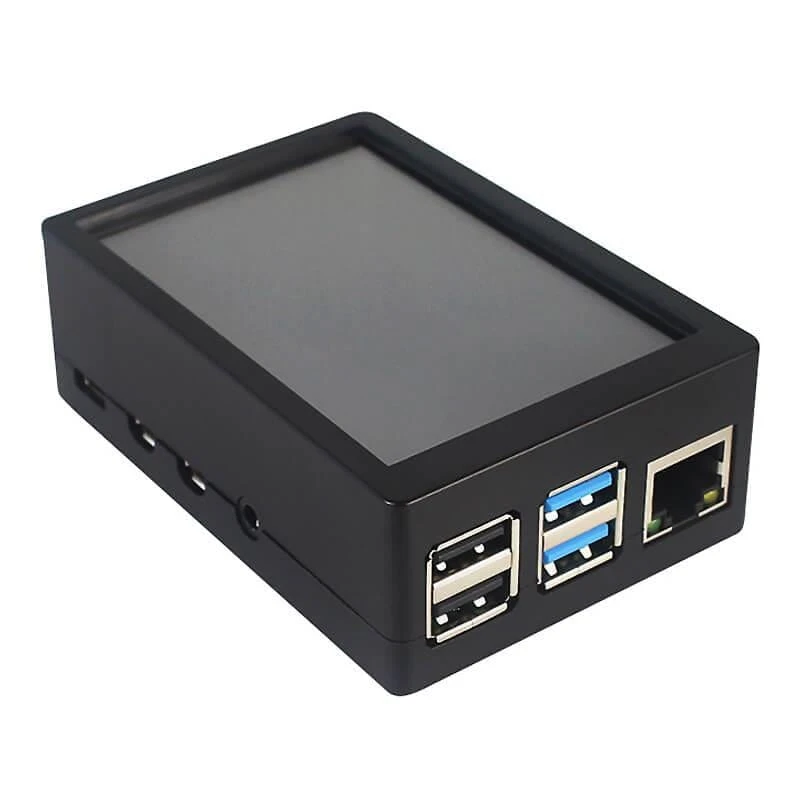

This is a display kit for the

Raspberry Pi 4

including an ABS case, 3.5″ TFT 480×320 touchscreen display and a 4-piece aluminium heatsink pack. It’s a great combination of a robust housing with a small, clear display and touch control!

The display is a 3.5″ 480×320 resistive touch TFT panel, which connects to the Raspberry Pi via GPIO pin header and communicates via SPI. The resistive touch is surprisingly nippy, accurately registering gentle touches on the Raspberry Pi OS desktop.  A small plastic stylus is included in the kit for interacting with the screen if you’d prefer.

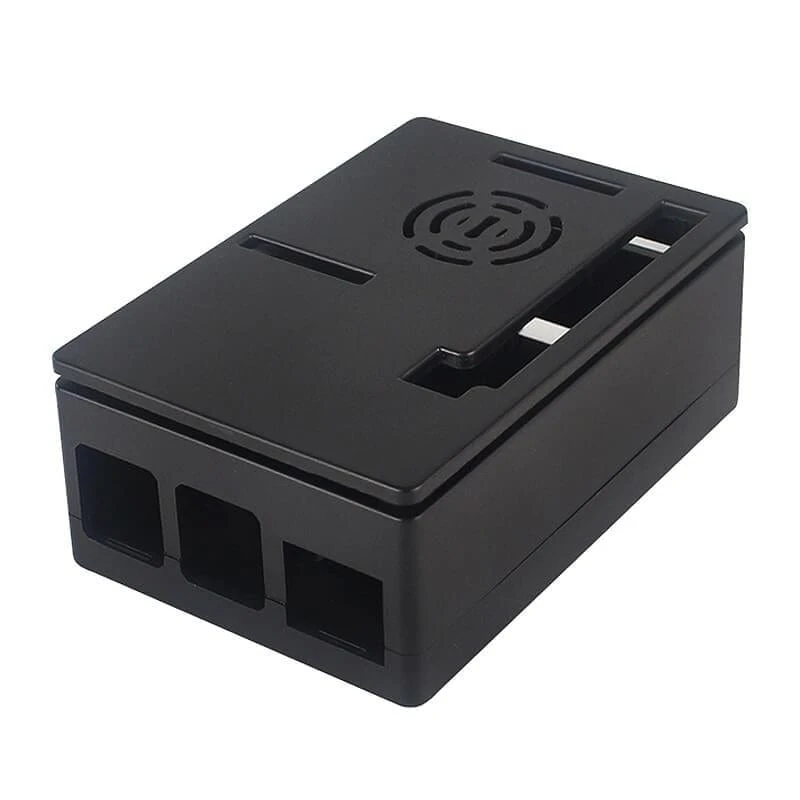

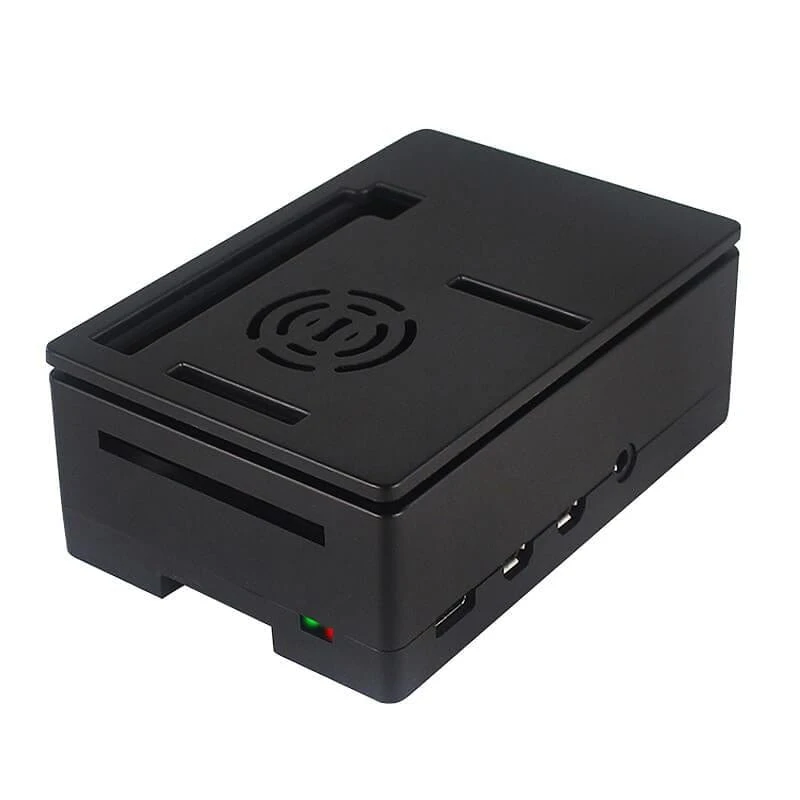

The ABS case is a robust home for your Pi4 and display, which feels solid, resists scratches and provides good protection and ventilation. All Raspberry Pi ports and the SD card are accessible, including slot cut-outs for the Camera and other cables. remove the top cover for use with the included display.

A similar product with a powder-coated metal case

is available here

.

Installation

The following commands will set up the display in Raspberry Pi OS (other operating systems have not been tested, so we can’t guarantee they will work). You will need an internet connection to download the scripts. Either enter these commands using your Pi with a monitor and keyboard connected or open an SSH session with your Raspberry Pi:

sudo rm -rf LCD-show
git clone
https://github.com/goodtft/LCD-show.git

chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD35-show

After the last command, your Raspberry Pi will reboot and the display will move to the TFT.

If you want to switch back to the HDMI display, enter the following command from the same LCD-show directory before removing the screen:

sudo ./LCD-hdmi

Additional information

can be found at the display’s Wiki

 page

.

Resources

• Product Wiki

• Display Driver GitHub

Specification

• LCD Type: TFT
• Touch Screen Type: Resistive
• LCD Interface: SPI (Fmax:32MHz)
• Touch Screen Controller: XPT2046
• Colours: 65536
• Driver IC: ILI9486
• Backlight: LED
• Resolution: 320*480 (pixels)
• Backlight Current: 120ma
• Power Dissipation: 0.13A*5V
• Operating Temperature: (℃) -20~60
• Active Area: 48.96 x 73.44mm
• Approximate Weight: 75g

Package Contents

• 1 x ABS Case for Raspberry Pi 4
• 1 x 3.5″ Resistance TFT Touch Screen
• 1 x Resistance Pen
• 1 x Aluminum Heat Sinks pack (4 pieces)

Raspberry Pi not included
