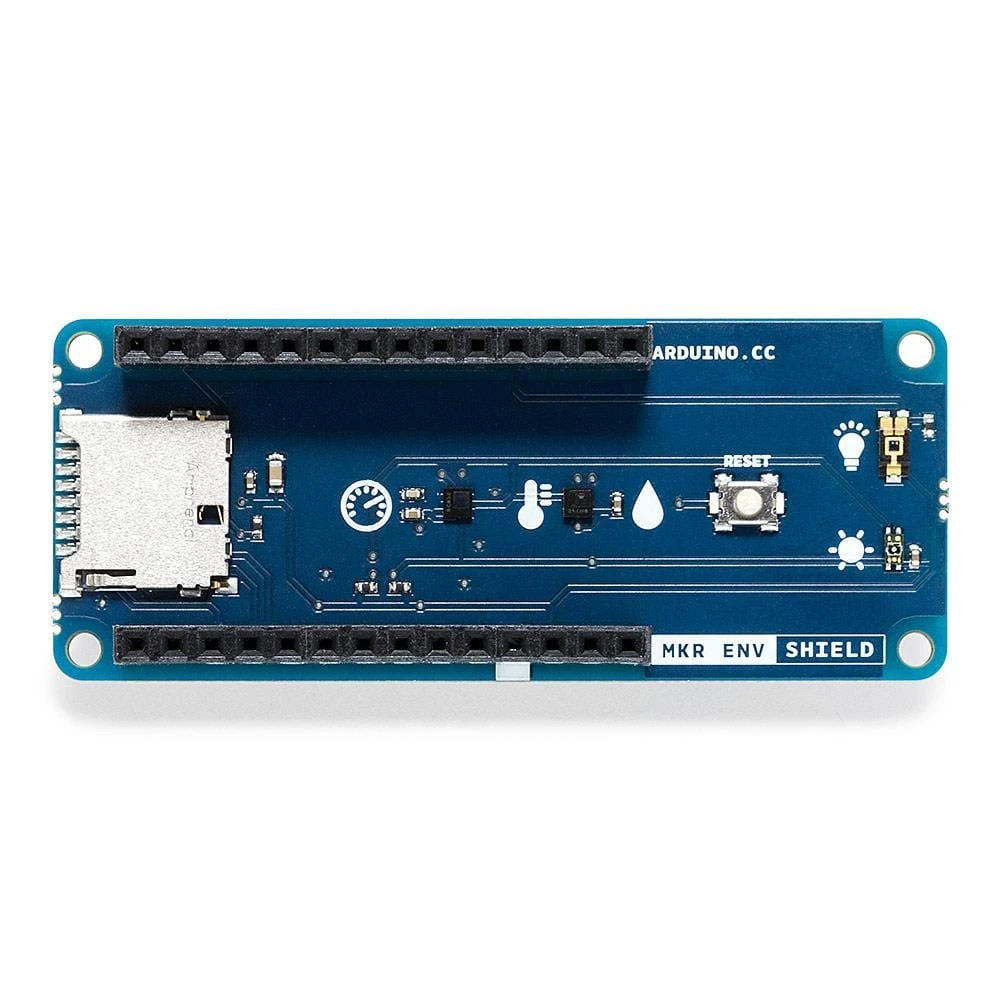

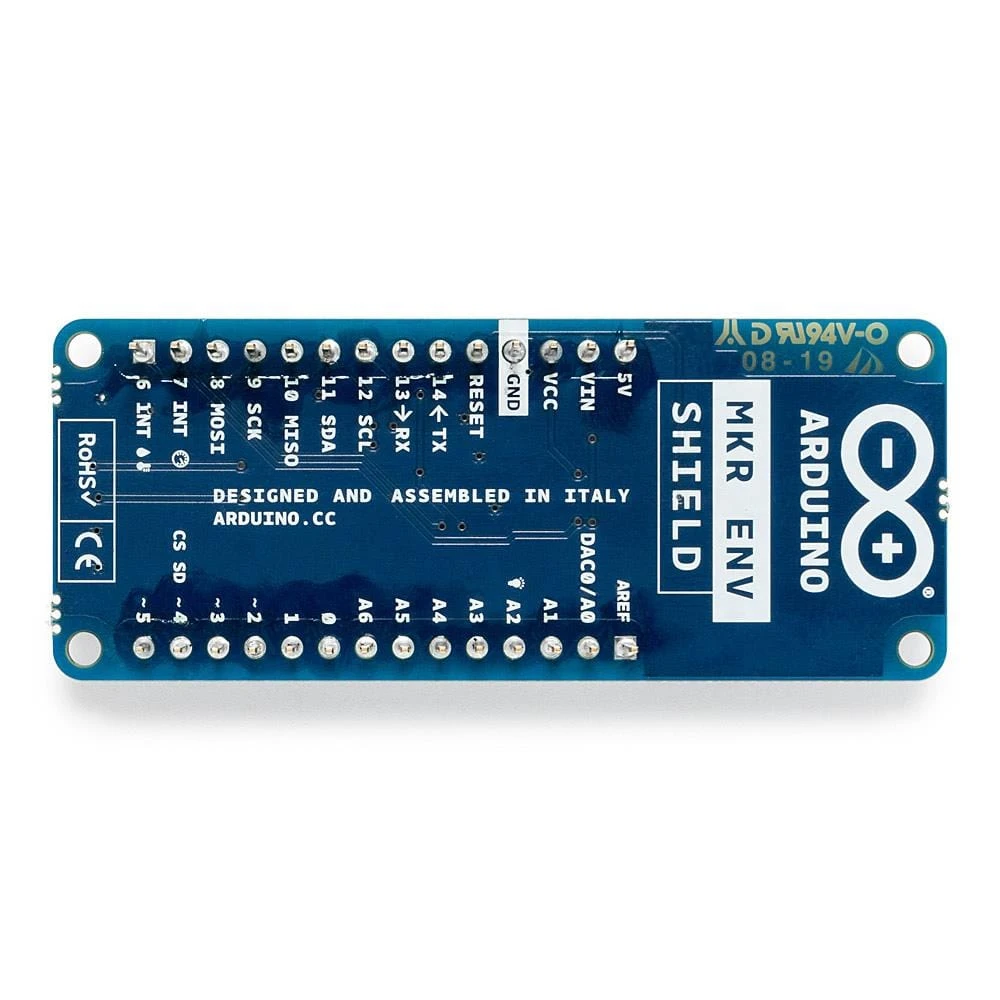

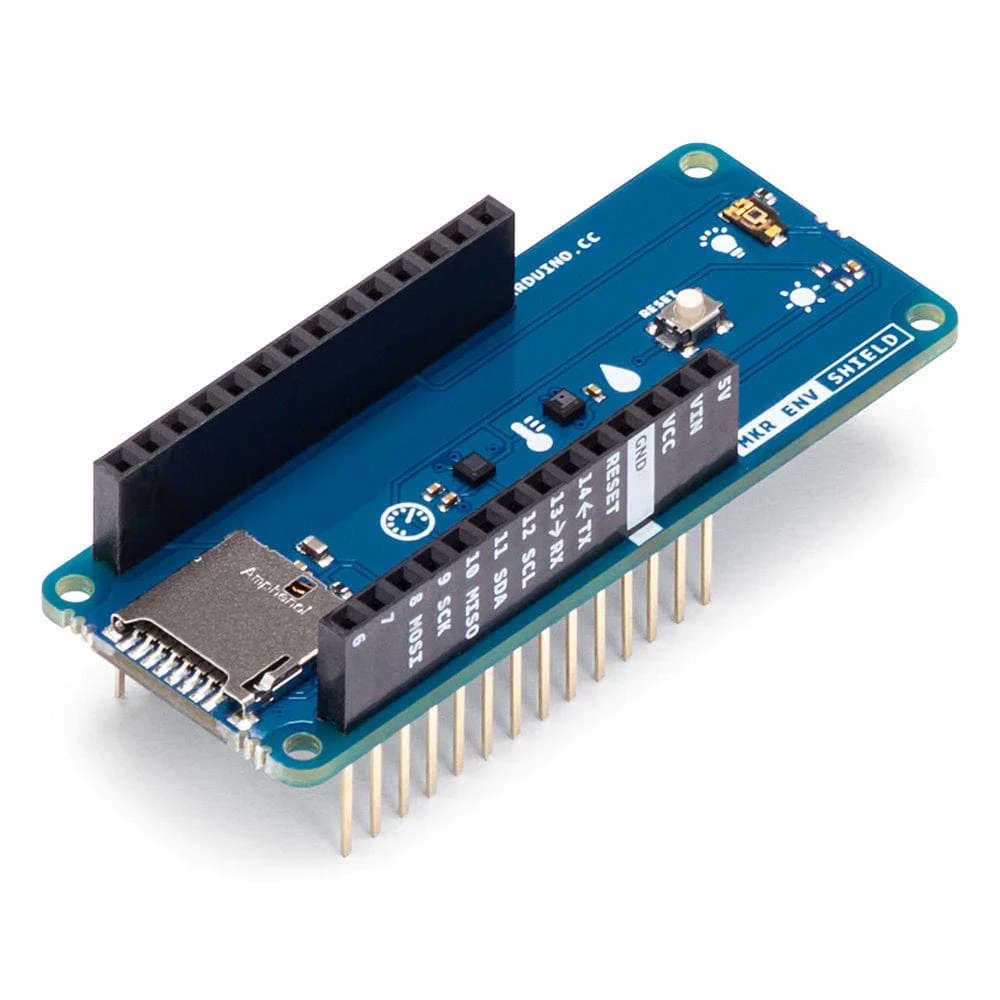

The MKR ENV Shield Rev2 allows an
Arduino MKR board
to acquire environmental data collected by an array of sensors.
These sensors are of the latest generation and measure:
- Atmospheric pressure
- Temperature and humidity
- Light intensity (in LUX)
To help you build projects and store the data collected locally, this shield has a slot for a
microSD card
(not provided).
There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.
Sensors used
- ST
LPS22HB
: atmospheric pressure
- ST
HTS221
: temperature and humidity
- VISHAY
TEMT6000
: Lux of the ambient
Resources
- Development Environments
-
Arduino IDE
-
Arduino CLI
-
Arduino Web Editor
-
Arduino IoT Cloud
-
-
Schematics
-
Getting Started
Specifications
| ICs | LPS22HB |
| Input Voltage | 3.3V |
| Operating Voltage | 3.3V |
| Ranges | Pressure: 260 to 1260 hPa |
| Communication | I2C/Analog |
| Length | 61 mm |
| Width | 25 mm |
| Weight | 32 gr. |
