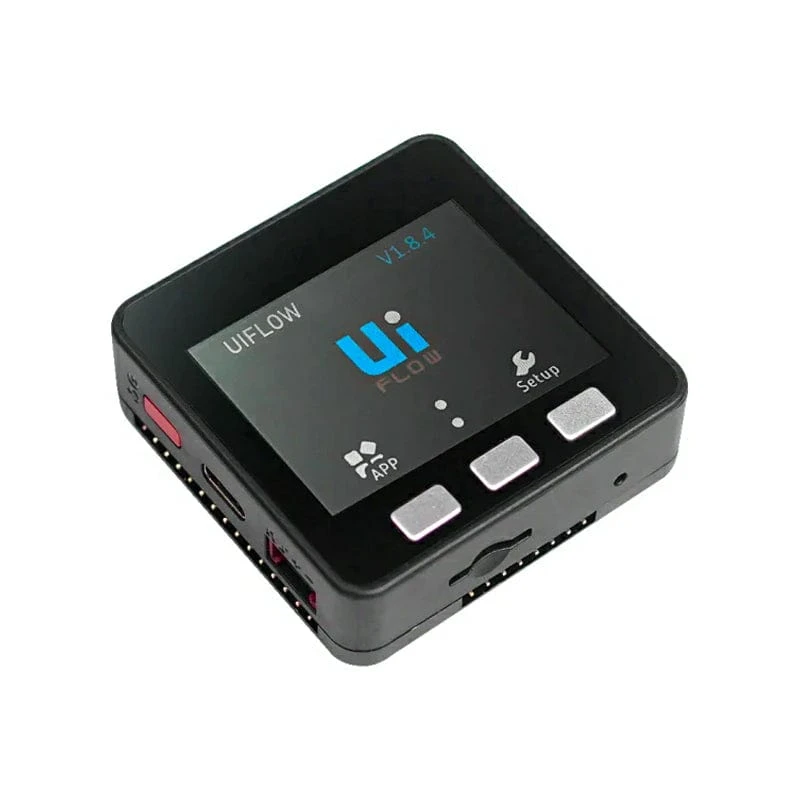

The ESP32 Basic Core is a cost-effective entry-level IoT main controller.
It has an Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with a main frequency of up to 240MHz, built-in 16M FLASH memory, integrated 2.0-inch full-colour HD IPS display panel, speaker, TFCard slot and other peripherals.
The full-coverage housing gives circuit stability even in complex industrial applications. Internal provides a variety of interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. It’s ideal for a variety of product prototyping, industrial control, and intelligent building applications.
High productisation
- Exquisite designs, Prototyping right into products
- Product-grade full-coverage cover for more stable circuit operation
Low Code Development:
- Support UIFlow graphical programming platform, scripting-free, cloud push
- Fully compatible with mainstream development platforms such as Arduino and ESP32-IDF
- Support FreeRTOS, with dual-core and multitasking mechanism, it can perform tasks efficiently, Program optimisation.
High Integration:

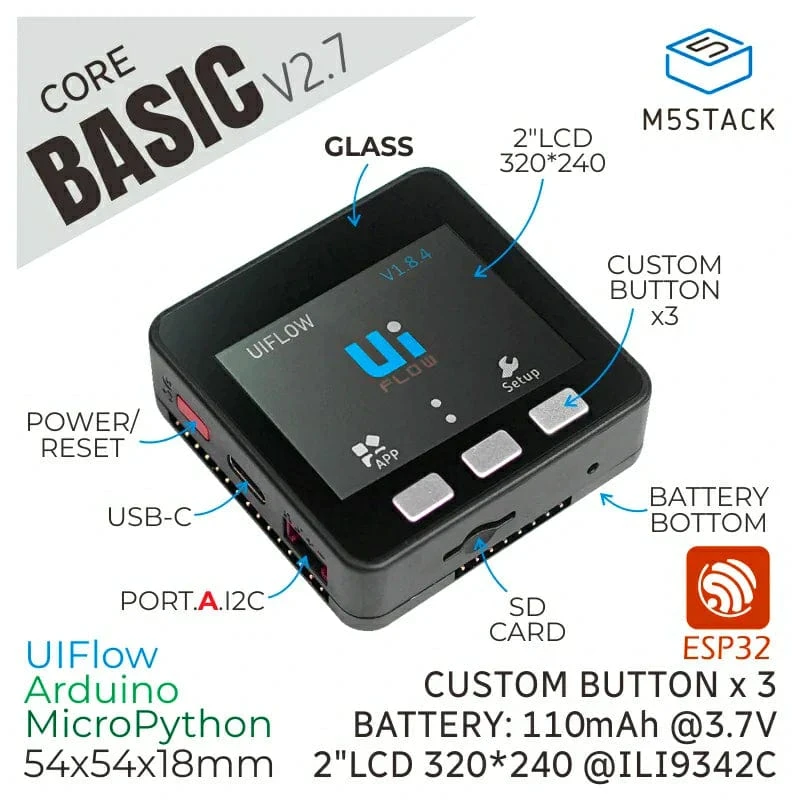

- 2.0 inch IPS display panel, speakers, 3x custom buttons
- Built-in lithium battery power, integrated power management chip, support TypeC interface
- Finely tuned RF circuit for stable and reliable wireless communication
Strong Expandability:
- 15x IO leads
- Easy access to M5Stack’s hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion
Power on/off operation
- Power on: Click the red power button on the left
- Shutdown: Quickly double-click the red power button on the left
*USB power supply *: By default, when USB is powered, it cannot be shut down
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates.
Why?
Features
- Based on ESP32 development
- 16M FLASH
- Integrated full-colour high-definition IPS display panel and a variety of hardware peripherals
- Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.

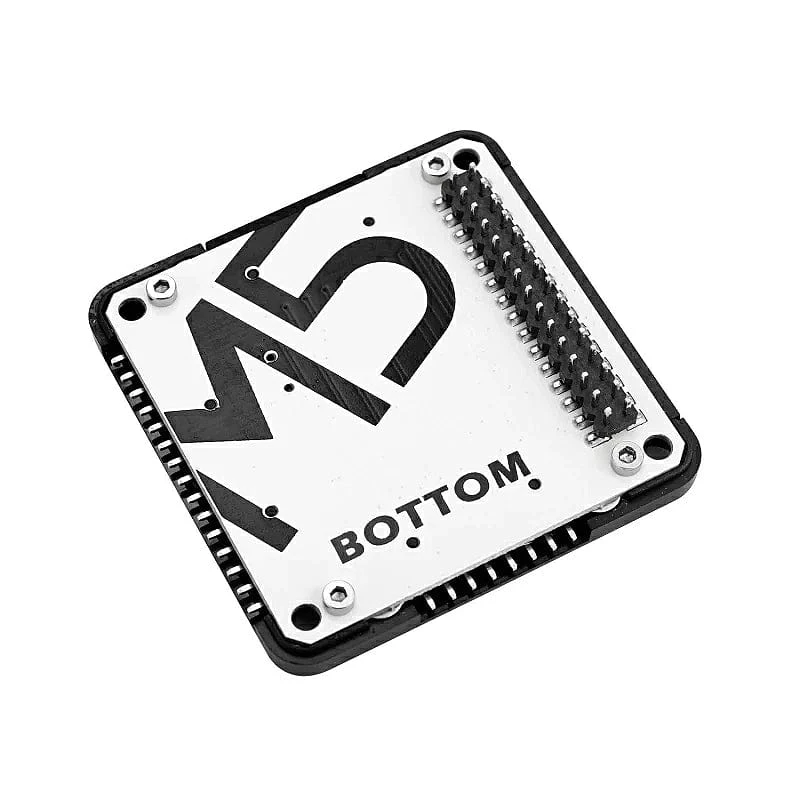

- Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.
- Compatible with multi-platform development:
-
UIFlow
-
MicroPython
-
Arduino
-
.NET nanoFramework
-
Specifications
| Specifications | Parameters |
| ESP32-D0WDQ6-V3 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 16MB |
| Input power | 5V @ 500mA |
| Interface | TypeC x1, I2C x1 |

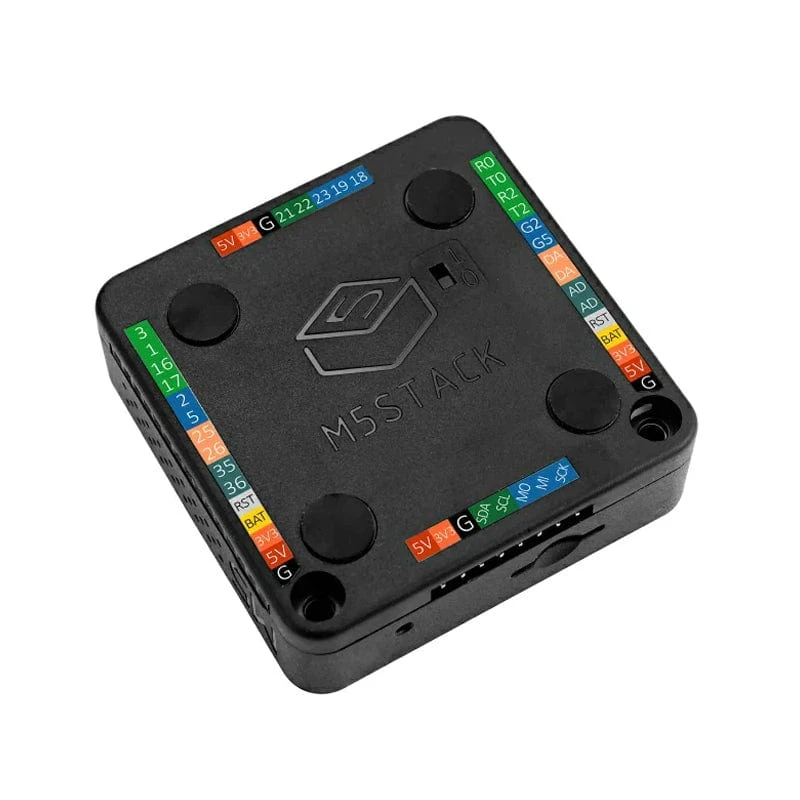

| IO | G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36 |
| Button | Physical button x 3 |
| LCD screen | 2.0″@320×240 ILI9342C IPS panel, maximum brightness 853nit |
| Speaker | 1W-0928 |
| USB chip | CH9102F |
| Antenna | 2.4G 3D Antenna |
| Battery | 110mAh @ 3.7V |
| Net weight | 47.2g |
| Gross weight | 93g |
| Product size | 54mm x 54mm x 18mm |
| Packing size | 95 x 65 x 25mm |
| Cover Material | Plastic (PC) |
Resources
-
Product Wiki
-
Schematics
Package Contents
- 1x ESP32 Basic Core loT Development Kit V2.7
- 10x Dupont line
- 1x Type-C USB (20cm)
- 1x Manual
- 1x Sticker
