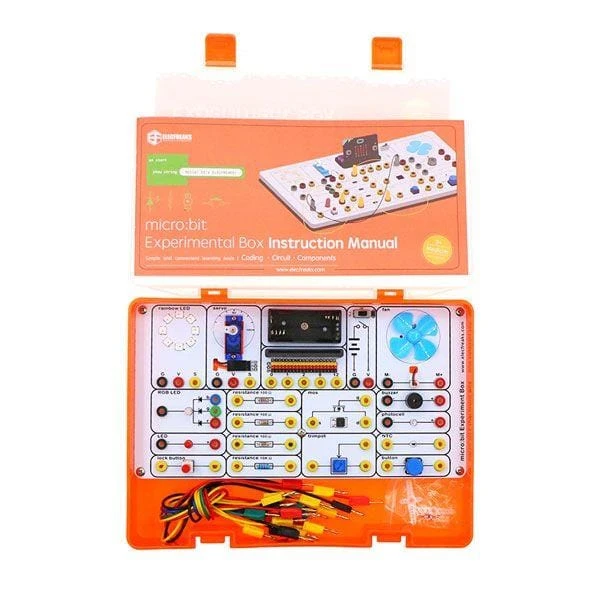

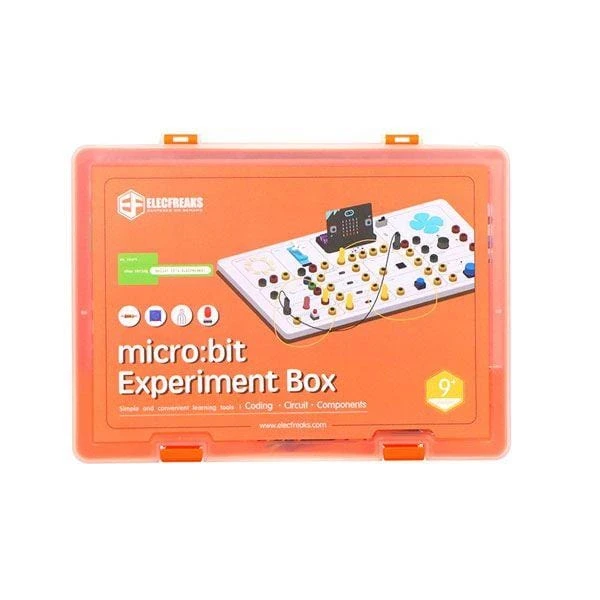

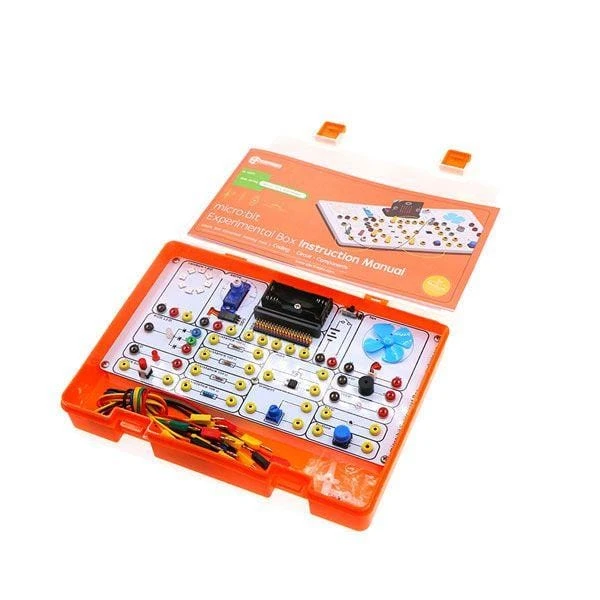

Experiment Box For Micro:bit

The Elecfreaks micro:bit Experiment Box is a portable, multi-function experiment box designed for the BBC micro:bit (not included but

available here

!).

It makes use of easy to use banana plugs to connect the various included components for a range of electronics and programming experiments.

The kit features popular components such as a temperature sensor, photocell, servo, motor and LEDs. It also features components such as the MOSFET transistor, different values of resistors, and a trimpot to combine circuit design with programming.

Budding coders can use Makecode – micro:bit’s simple graphic programming language – to control these components, or learn the basics of circuit design without the micro:bit.

Programming or designing circuits, the choice is up to you! A

full step-by-step user guide

is available to guide you every step of the way!

Powered by

2x AAA batteries

(not included).

Kit contents

• DC motor with fan
• Buzzer
• Photocell
• NTC
• Button
• Trimpot
• Mos Tube
• 100Ω Resistor x3
• 10KΩ Resistor
• Self-lock
• Red LED
• RGB LED
• Rainbow LED
• 180° Servo
• AAA Battery pack
• Power Switch

Resources

• User guide available here
