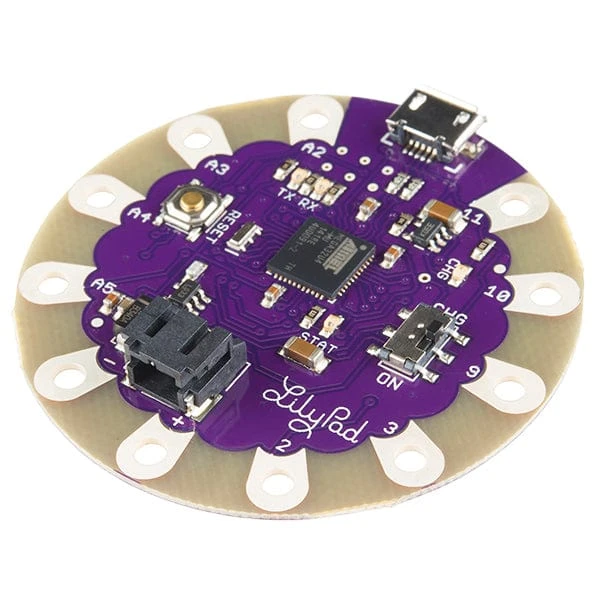

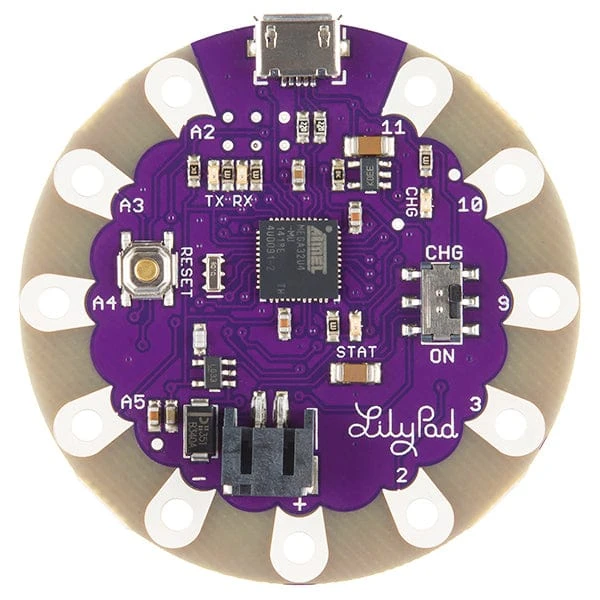

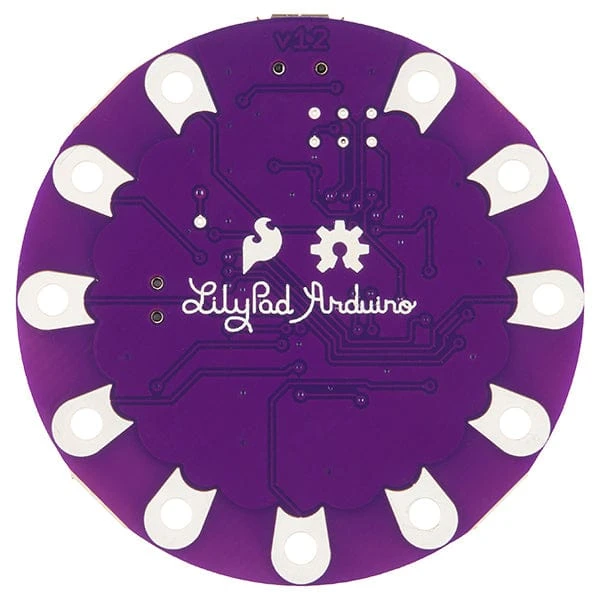

LilyPad Arduino USB – ATmega32U4 Board

This is the LilyPad Arduino USB board, controlled by an ATmega32U4 with the Arduino bootloader. It has a built-in power supply socket and an on/off switch with the only extra piece of hardware you need to program the LilyPad USB is a

micro-USB cable

, since the new IC has built-in USB support.

LiPo batteries

can be plugged right into the JST socket to provide you with easy, on-the-go power. That LiPo battery is even rechargeable through the board, no more special external LiPo chargers are required!

Just like the LilyPad Simple, this board operates at 3.3V and features a JST socket so you can directly connect a

Li-Po battery

for power and an on-board power switch so you can turn it off when you’re not feeling particularly blinky. The LilyPad Arduino USB was designed to streamline your next sewable project by keeping things simple and giving you more room to work while eliminating the need to sew a power supply.

LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable!

Features

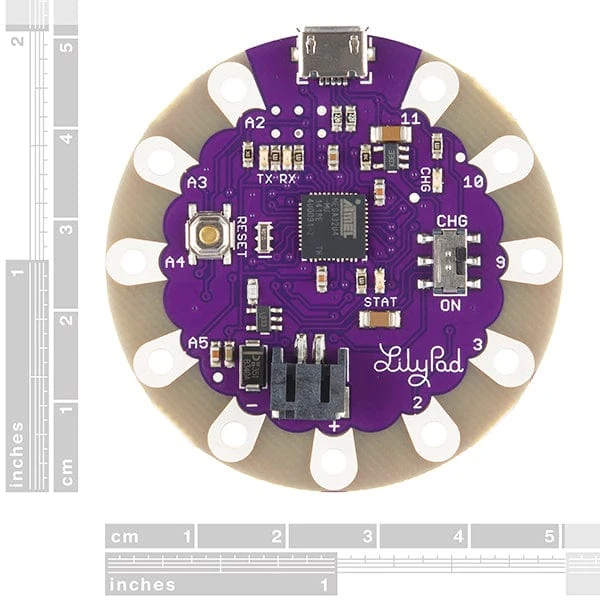

• 50mm outer diameter
• Thin 0.8mm PCB

Resources

• Schematic

• Eagle Files

• Datasheet

  (ATMega32U4)

• Firmware Note

• Arduino Hardware Page

• Arduino Quickstart Guide

• Arduino Add-on Files

• GitHub

  (Design Files & Example Code)
