M5Stack ATOM RS232 Voltage Converter Development Kit (MAX232)

The ATOM RS-232 is a TTL-RS232 level-converter designed for use with the M5Atomic module. RS232 is a full-duplex communication protocol standard, which defines the electrical characteristics of the serial communication system. A MAX232 chip is in the module, which supports bidirectional conversion between TTL level and RS232 level. A DC/DC voltage regulator chip is integrated in the ATOM RS-232, which can directly convert the 12V voltage of the RS232 hub to 5V to supply power for ATOM.

Features

• Compatible ATOM Matrix/ATOM Lite
• Built-in DC/DC
• Full-duplex communication

Package Contents

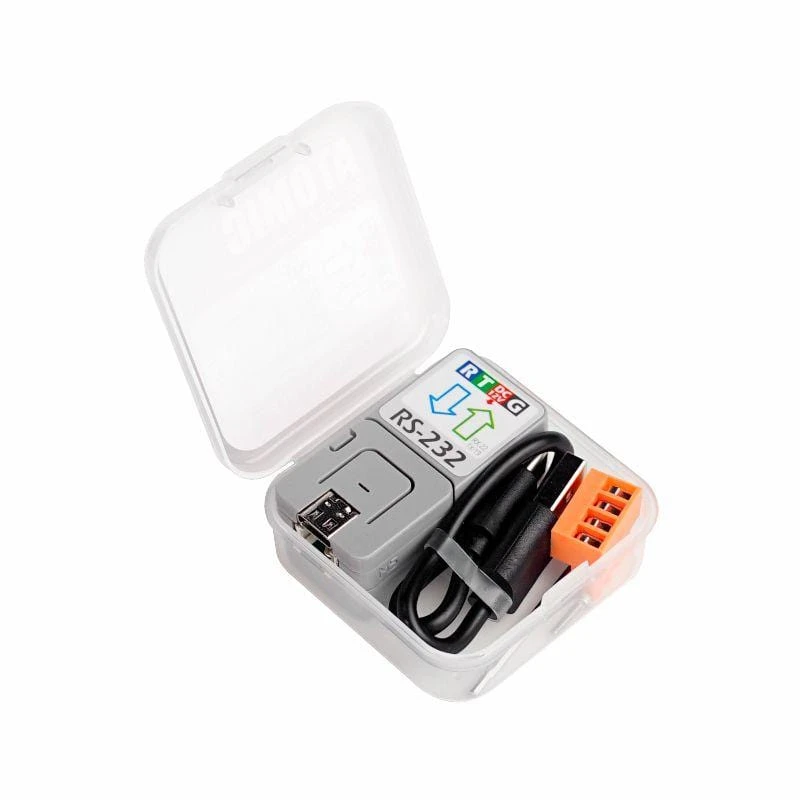

• 1x ATOM RS-232
• 1x ATOM Lite
• 1x Hex Key

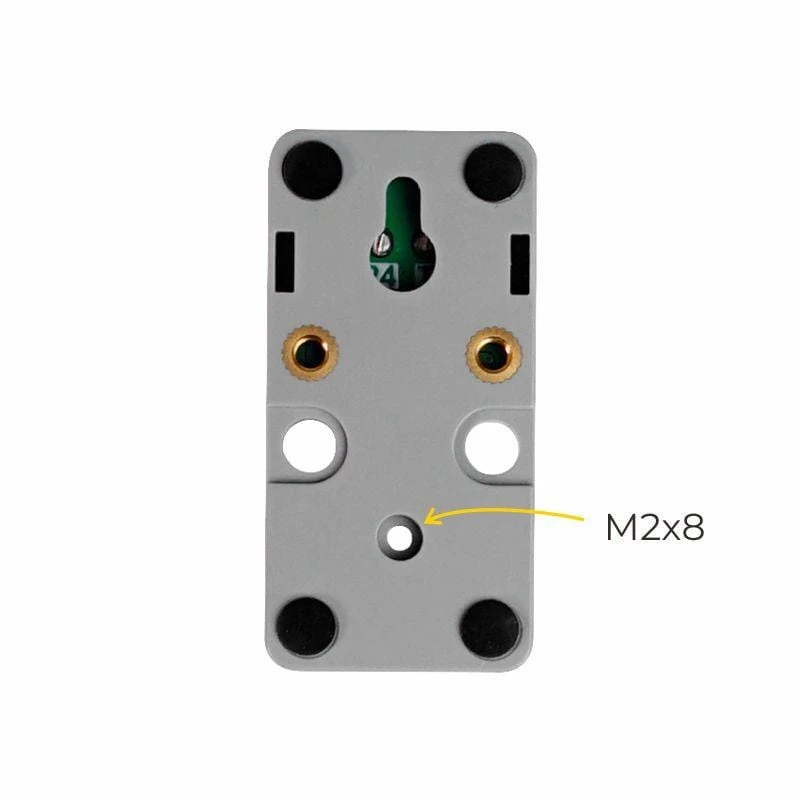

• 1x M2*8mm Hexagon socket cup head machine screw
• 1x 18cm TYPE-C Cable

Specifications

Specification	Parameter
External port	VH-3.96 4P
level-conversion IC	MAX232
DC-DC	A0Z1282CI
Net weight	26g
Gross weight	36g
Product Size	24 x 48 x 18mm
Package Size	54 x 54 x 20mm
Case Material	Plastic (PC)
