The
M5Stack

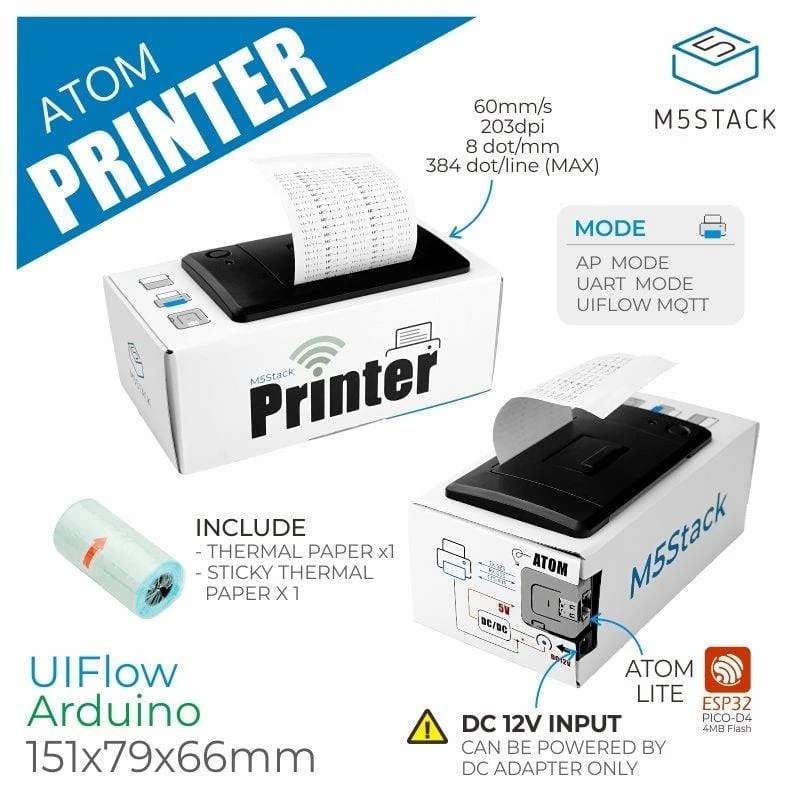

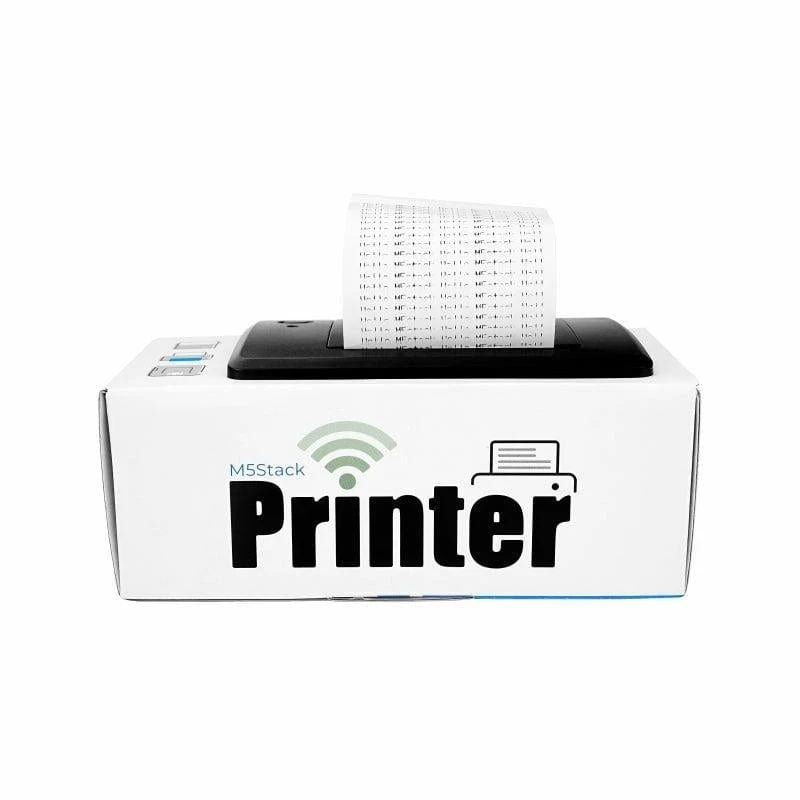

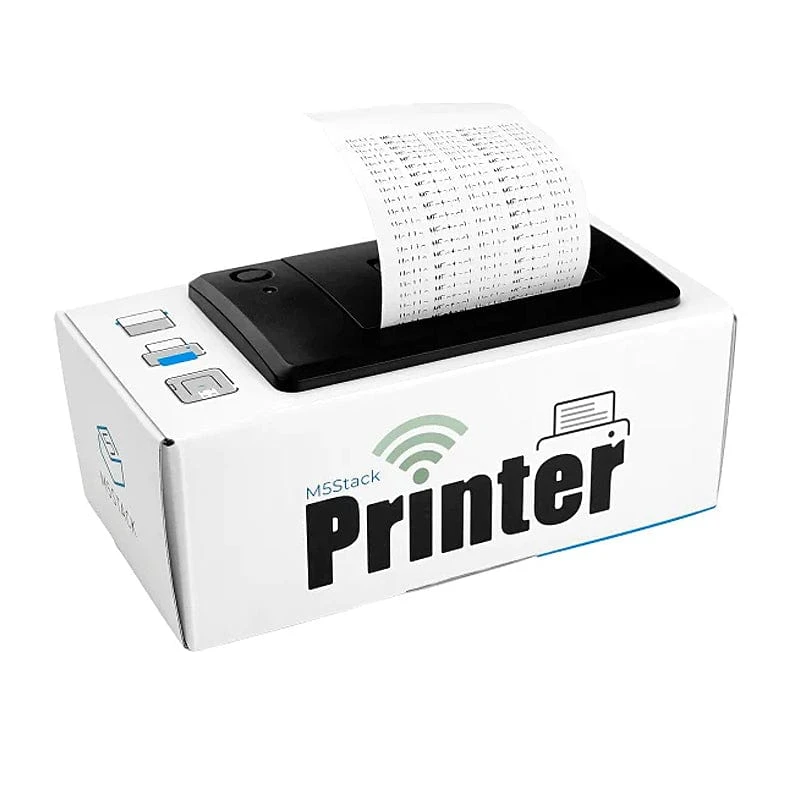

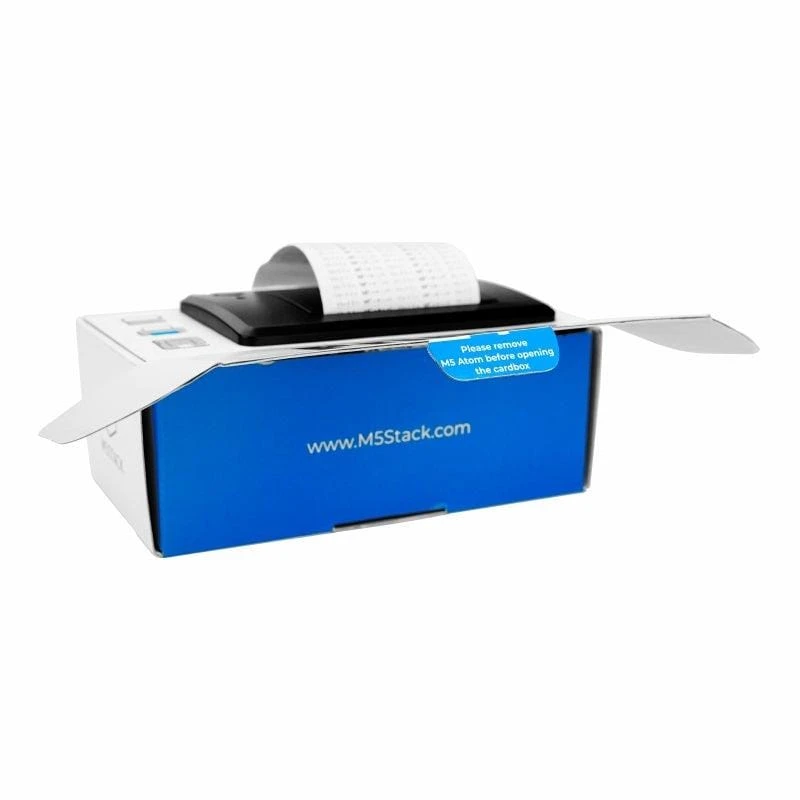

ATOM Printer offers great value in a desktop DIY thermal printer. The kit includes an ESP32-Pico based IoT ATOM Lite controller and a 58mm thermal printer to meet your multiple printing requirements.
The unit supports text, graphics, barcode and QR code printing with built-in firmware that boasts two modes of AP Connect Print + MQTT Notifications Print. The ATOM Printer has geekery kraft packaging design, Â You can enrich your project ideas with the ATOM Lite IoT controller.
Note: This kit does not include a power adapter. A DC 12V / 2.5A power adapter (5.5mm jack) is recommended.
We have a quality Meanwell option here
, or supply your own.
Features
- ATOM Lite: ESP32-Pico-D4 4MB Flash IoT controller
- Sleek, Geekery kraft packaging design
- Supports for text/graphics/BarCode/QRCode
- Communication interface: UART
- Fast printing, high resolution
- How to use:
- AP hotspot connection, web-controlled printing
- Printing content sent via MQTT (Topic is device Mac address)

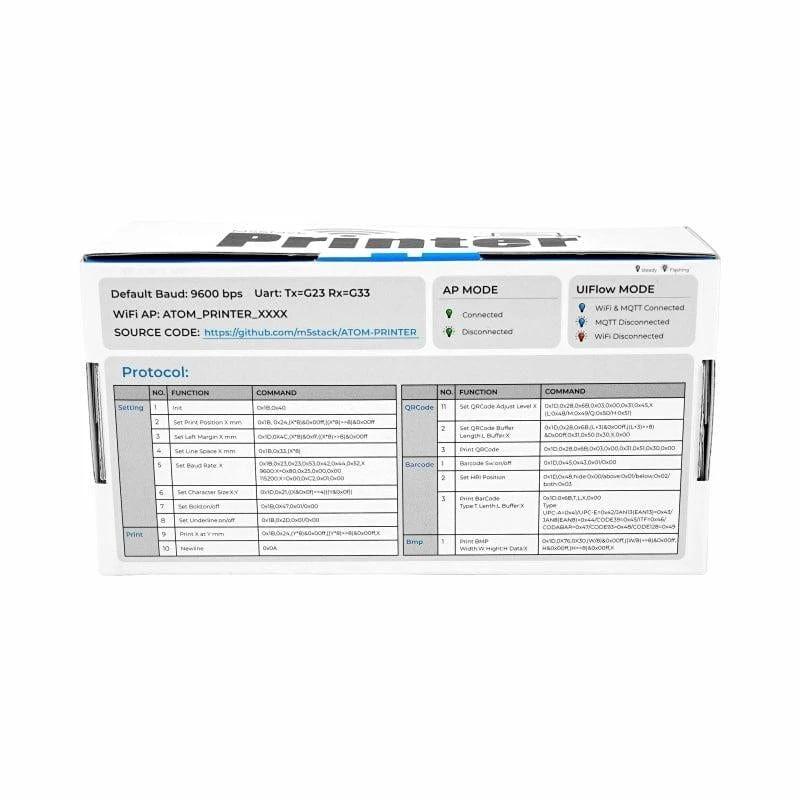

- Serial command control (UART 9600bps 8N1)
- Development platform: Arduino, UIFlow

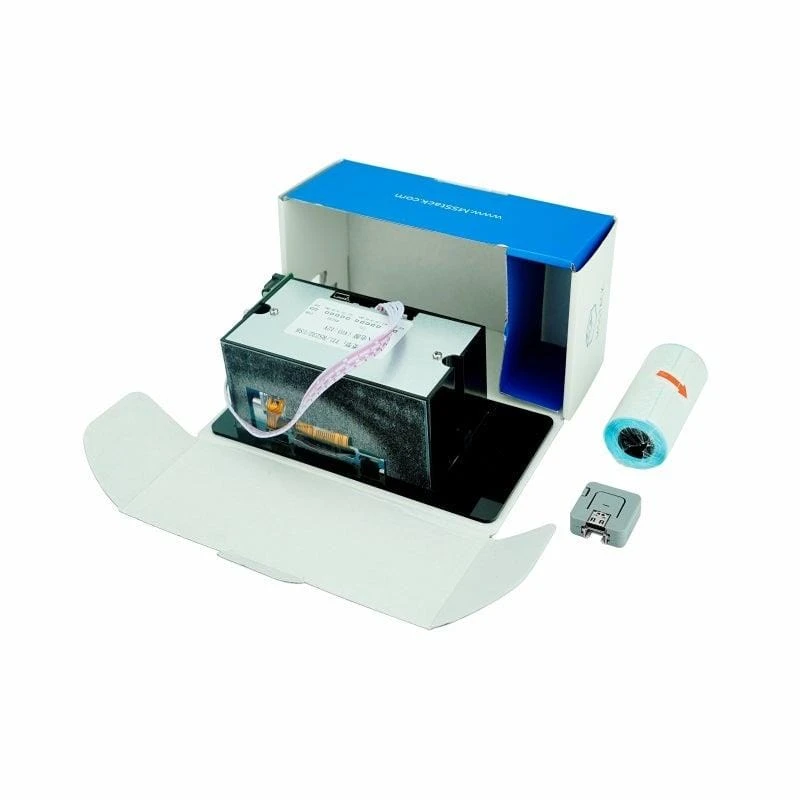

Package Contents
- 1x ATOM LITE
- 1x ATOM Printer
- 1x thermal paper roll
- 1x sticky thermal paper roll
No power supply included
Specifications
| Specifications | Parameters |
| Printing method | Thermal printing |
| Supported text and graphics | Text, graphics, characters, BarCode(Codebar, code93, code39, code128, ENA13, ITF25, UPC-A, UPC-E), QRCode |
| Supply voltage | DC 12V |
| Working current | 2.5A |
| Print colour | Monochrome |
| Print speed/resolution | 60mm/s 203dpi 8 dots/mm up to 384 dots per line |
| Printing width | 58mm |
| Service life | Printing distance 50km |
| Paper Cut | By Hands |

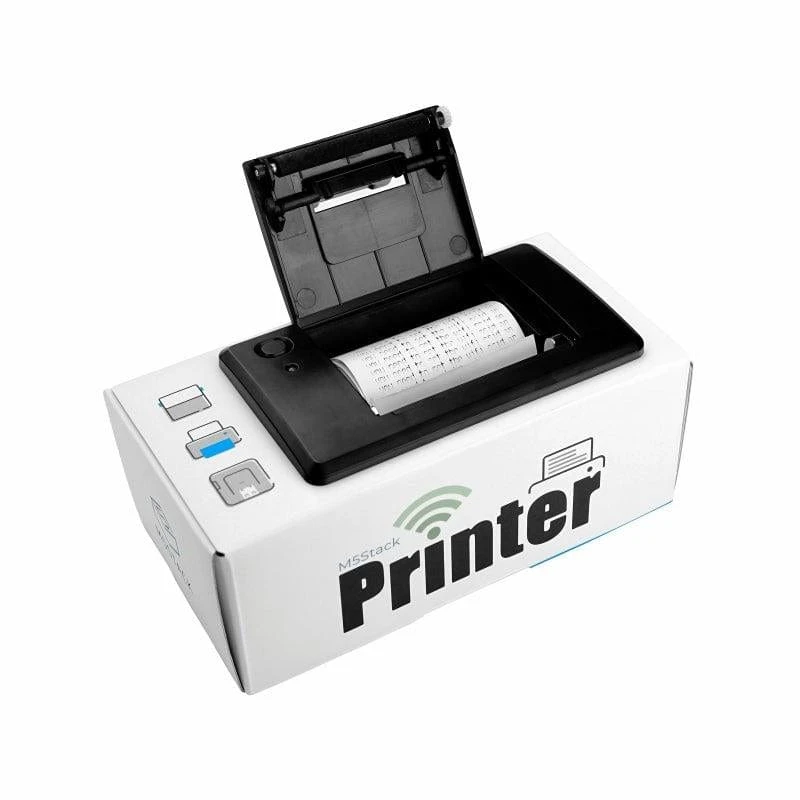

| Max. Diameter of Paper Roll | 58mm±0.05mm (width) 0.05~0.1mm (thickness), maximum diameter ≤40mm |
| Printing speed | 60mm/s |

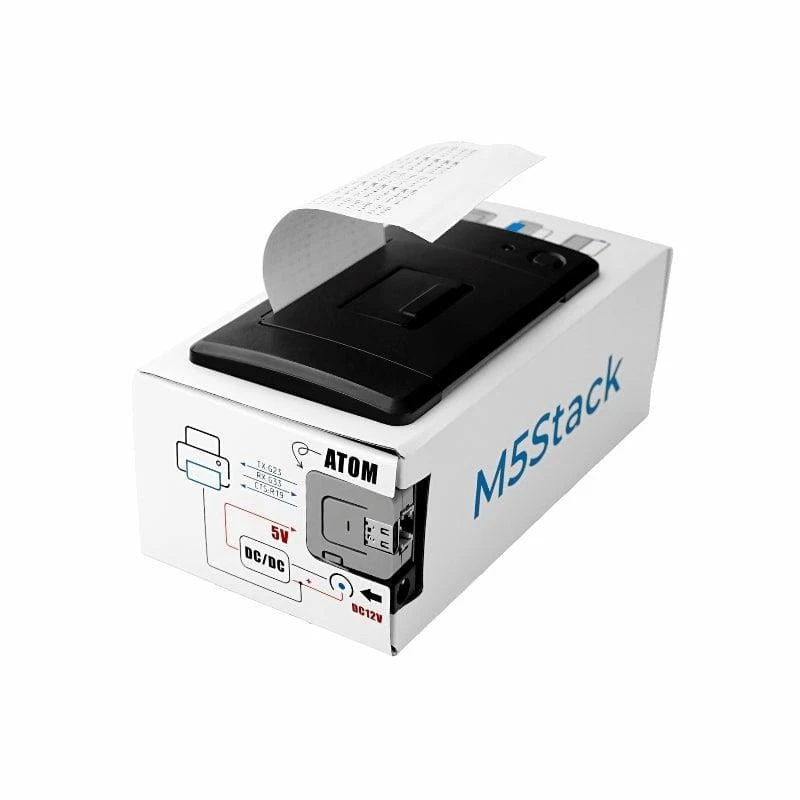

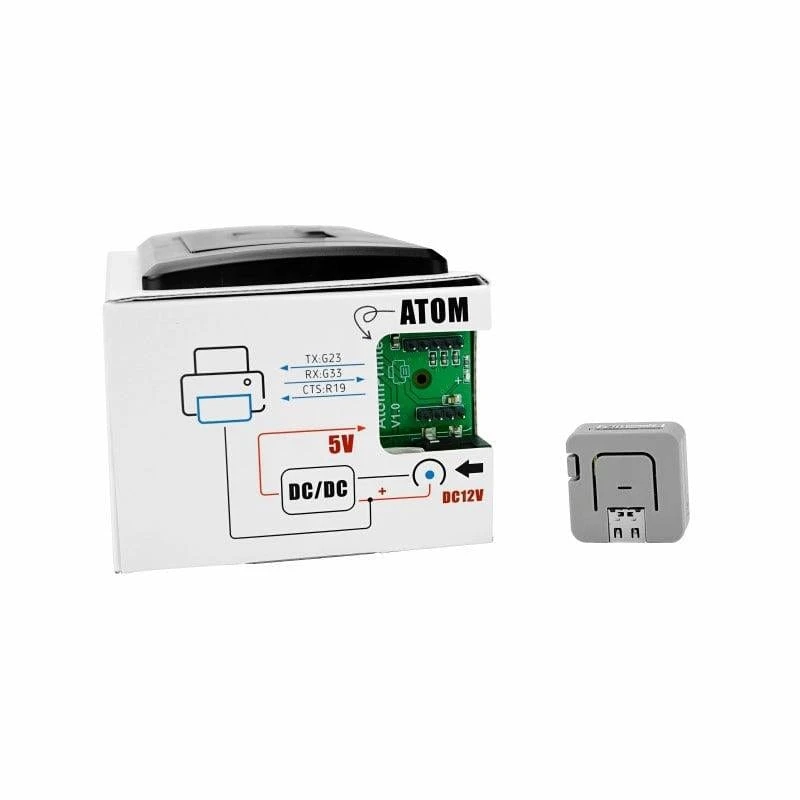

| Connectivity Technology | USB/RS232/TTL (ATOM is connected to TTL interface by default UART 9600bps 8N1) |
| Net weight | 285g |
| Gross weight | 321g |
| Product size | 151 * 79 * 66mm |
| Package size | 158 * 82 * 70mm |
Resources
-
Main Documentation Page
