M5Stack LCD Unit 1.14” 135 × 240 Pixels Display

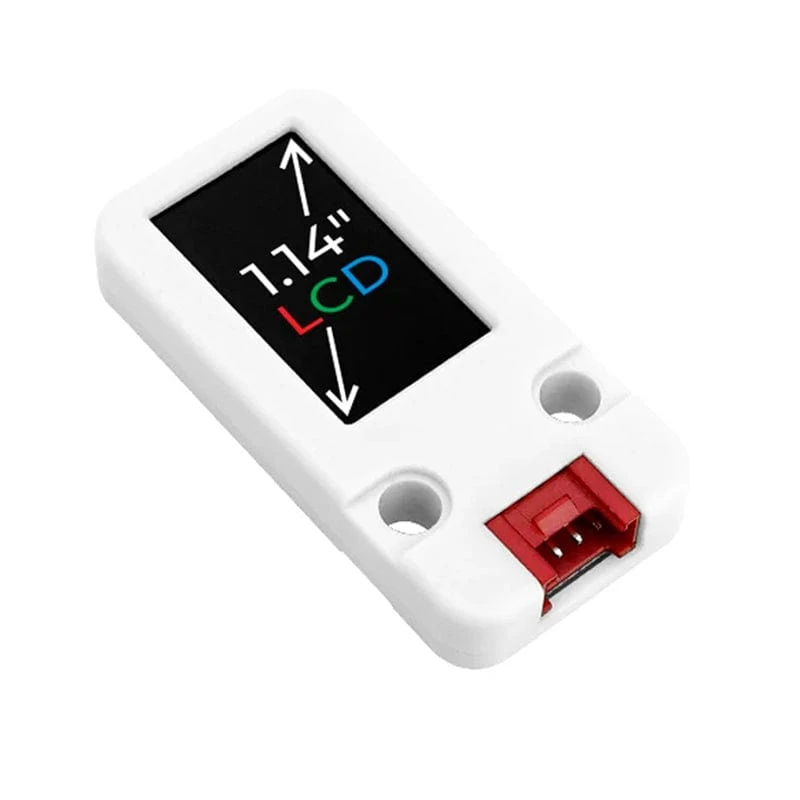

This display is a 1.14 inch color LCD expansion screen unit. It has a ST7789V2 drive scheme, the resolution is 135 x 240, and it supports RGB666 display (262,144 colors). The internal integration of ESP32-PICO control core (built-in firmware, display development is more convenient), support through I2C (addr: 0x3E) communication interface for control, and firmware upgrades. The back of the screen is integrated with a magnetic design, which can easily attach to the metal surface for fixing.

Features

• 1.14 inch color LCD display panel
• ST7789V2 drive scheme
• I2C communication interface
• 135*240 resolution
• Viewing angle: full viewing angle
• Magnetic back design
• Support I2C firmware upgrade

Package Contents

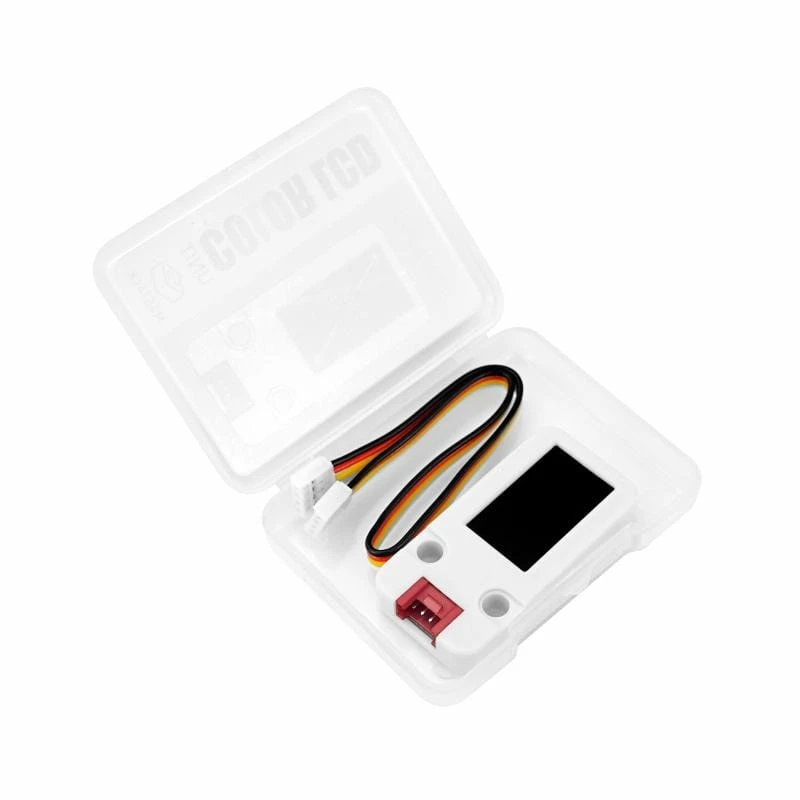

• 1x Unit LCD
• 1x HY2.0-4P Cable

Specifications

Specification	Parameter
Working current	45.7mA

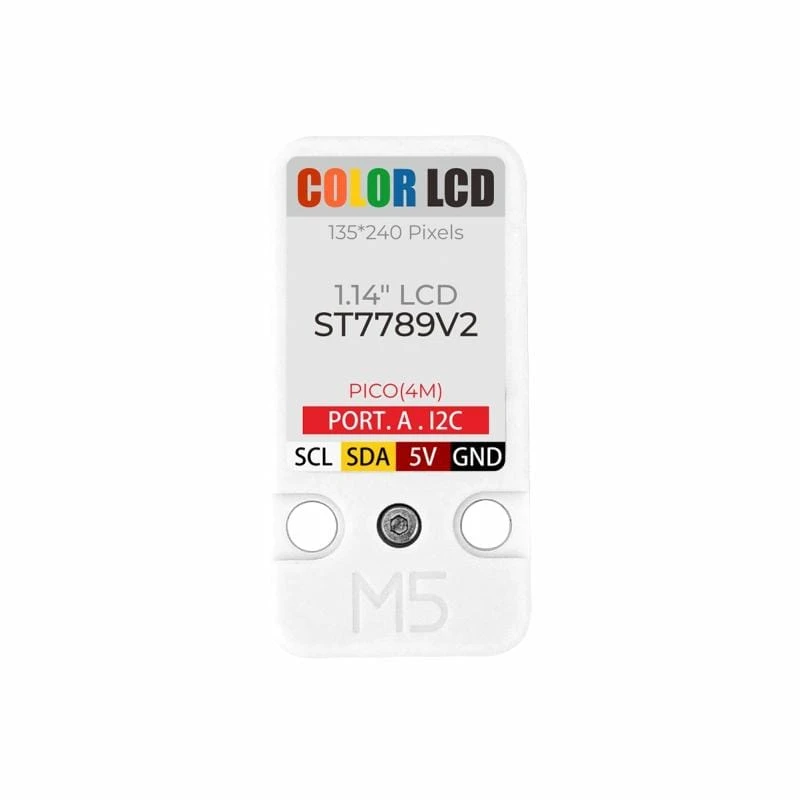

Communication protocol	I2C address: 0x3E
Display size	1.14 inch
Pixel pitch	0.1101(H) x 0.1038(V) mm
Resolution	135*240
Viewable	Full view
Operating temperature	0°C to 60°C
Net weight	8.5g
Gross weight	20g

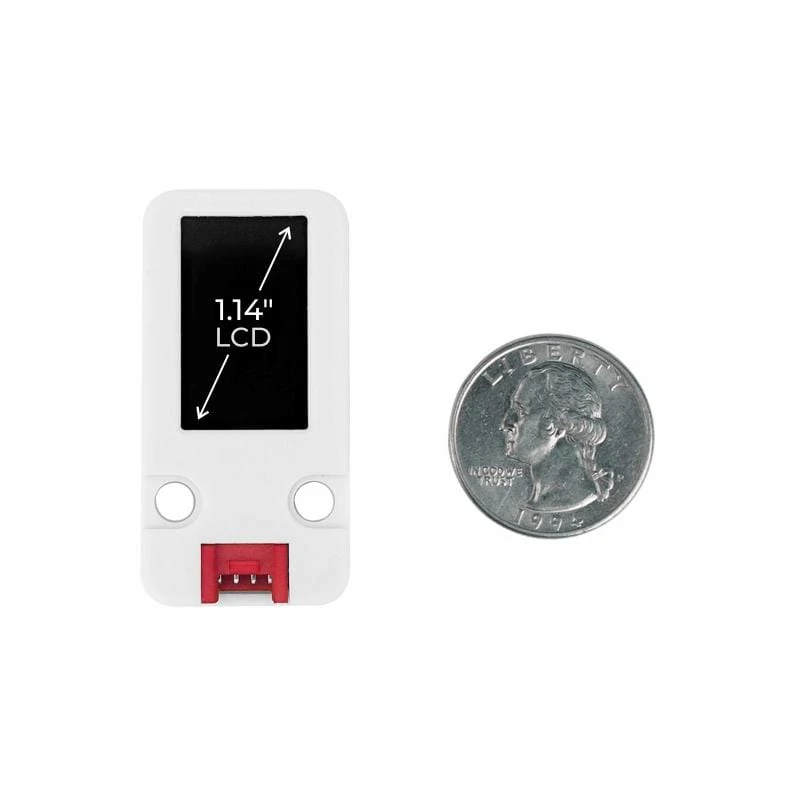

Product Size	48*24*8mm
Package Size	67*52*12.5mm
Case material	Plastic ( PC )
