The M5GO IoT Starter Kit v2.7 is a cost-effective IoT starter development kit. The kit contains a Core Controller M5GO plus six expansion units with different functions (sensors/actuators/splitters).
The core controller M5GO has an Espressif ESP32 chip, equipped with two low-power Xtensa® 32-bit LX6 microprocessors, a main frequency of 240MHz, and a 16Mb FLASH memory for a larger program size.
It also supports Wi-Fi, which can be used to build smart wearable devices, smart homes and other applications.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates.
Why?
Features
- Based on ESP32 development
- 16Mb FLASH
- Integrated HD IPS display panel with various hardware peripherals
- Rich resources interface, compatible with M5Stack stacking modules and sensors, Strong expandability

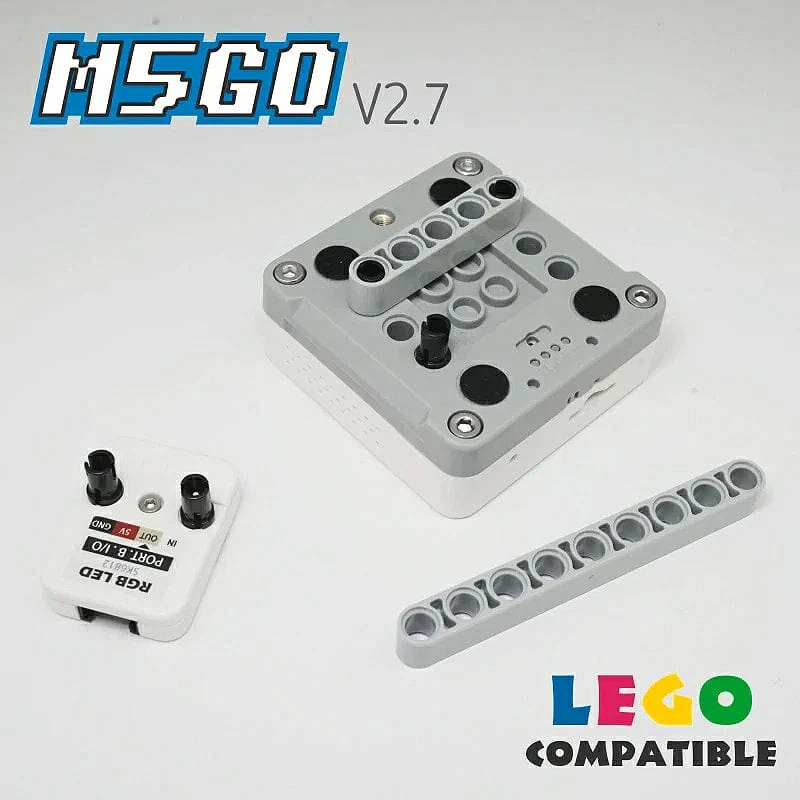

- The base is compatible with 8mm size LEGO blocks
- Microsoft Azure authentication device
- Compatible with multi-platform development:
-
UIFlow
-
MicroPython
-
Arduino
-
.NET nanoFramework
-

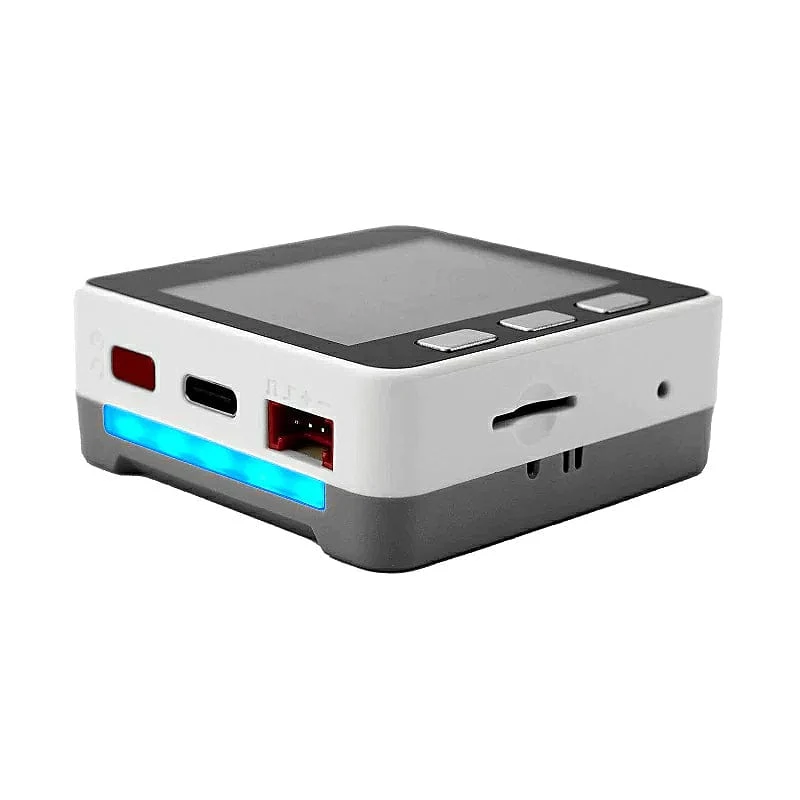

M5GO IoT controller
- Low code development:
- Supports UIFlow graphical programming platform, scripting-free, cloud push
- Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
- FreeRTOS support, with dual-core and multitasking mechanisms, can perform tasks efficiently and has program optimisation.
- High integration:

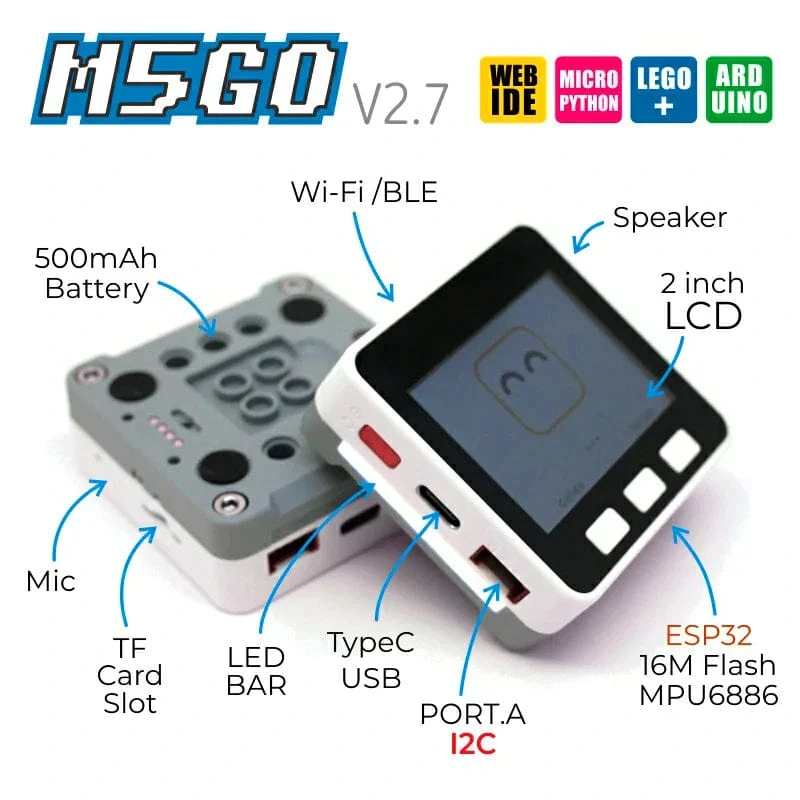

- 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3

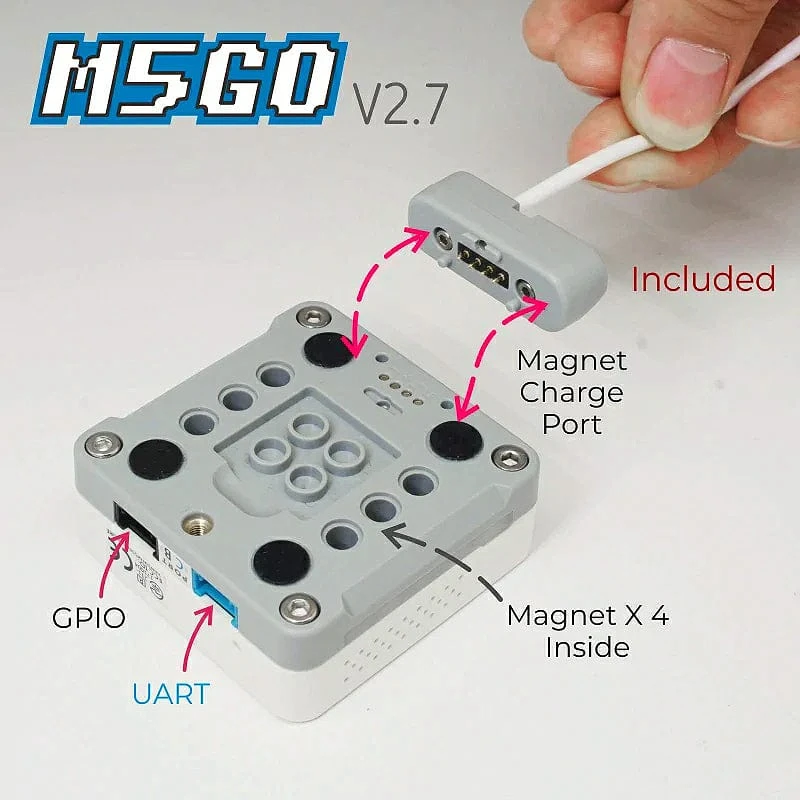

- Built-in Li-ion power supply, integrated power management chip, supports TypeC interface and POGO PIN interface power supply
- Finely tuned RF circuitry for stable and reliable wireless communication
- Strong expandability:

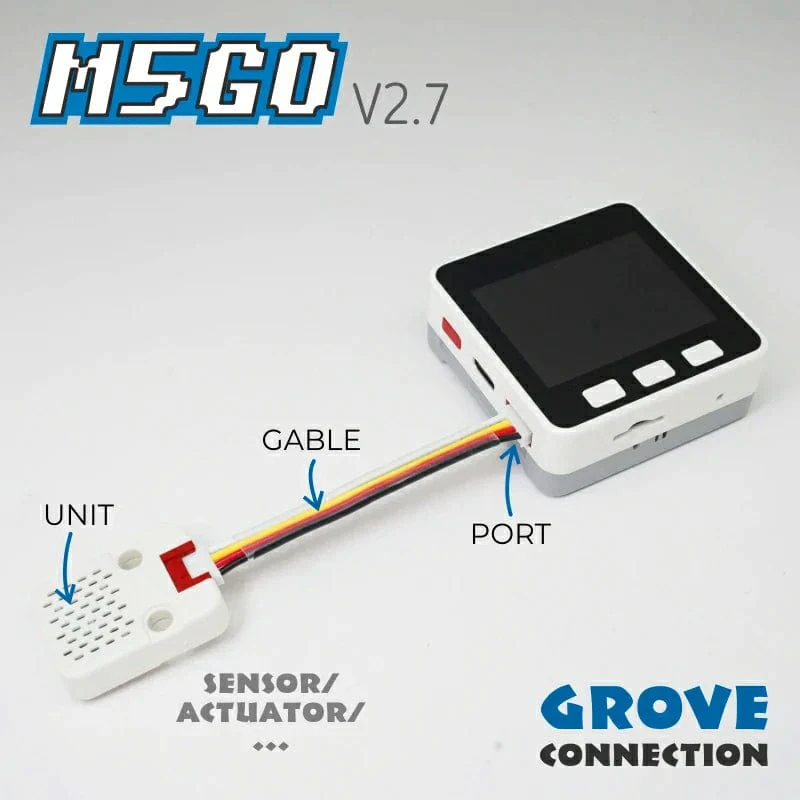

- GROVE expansion ports x3 (I2C, GPIO, UART)
- Easy access to M5Stack hardware and software system, stackable module design, plug-and-play sensor expansion
Six Expansion Units
- ENV UNIT III: Temperature, humidity, and atmospheric pressure sensors, with an I2C communication interface for rapid acquisition of environmental information.
- PIR UNIT: Body sensor, passive pyroelectric for human body sensing, digital signal output status.
- ANGLE UNIT: Knob Potentiometer, analogue signal input for music/lighting adjustment
- IR UNIT: Integrated infrared transmitter, and receiver. Free coding, infrared transceiver.
- RGB UNIT: 3x Programmable RGB LED, support programming to control any colour display
- HUB UNIT: I2C device splitter, expand single I2C bus to 3 channels, can access different I2C address devices
Switch On/Off Operation
- Power on: Click the left red button
- Power off: Quickly double-click the left red button
- USB power: By default, It can not be shut down when USB power is on.
Specifications
| Specifications | Parameters |
| ESP32-D0WDQ6-V3 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 16MB |
| Input Voltage | 5V @ 500mA |
| Host Interface | TypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1 |
| IPS Screen | 2 inch, 320×240 Colorful TFT LCD, ILI9342C, 853nit max brightness |
| Keys | Custom Keys x 3 |
| Speaker | 1W-0928 |
| Microphone | Analog BSE3729 Microphone |
| IMU | 6-axis MPU6886 |
| USB Chip | CH9102F |
| LED | SK6812 RGB LED x 10 |
| Antenna | 2.4G 3D antenna |
| Battery | 500 mAh @ 3.7V |
| Operating Temperature | 0°C to 40°C |
| Net Weight | 56.4g |
| Gross Weight | 228g |
| Product Dimensions | 54 x 54 x 21 mm |
| Package Size | 147 x 90 x 40 mm |
| Cover Material | Plastic ( PC ) |
Resources
-
Product Wiki
-
M5Stack-Lib
Pinout

Driver Installation
| Driver Name | Applicable Driver Chip | Download link |
| CP210x_VCP_Windows | CP2104 | Download |
| CP210x_VCP_MacOS | CP2104 | Download |
| CP210x_VCP_Linux | CP2104 | Download |
| CH9102_VCP_SER_Windows | CH9102 | Download |
| CH9102_VCP_SER_MacOS v1.7 | CH9102 | Download |

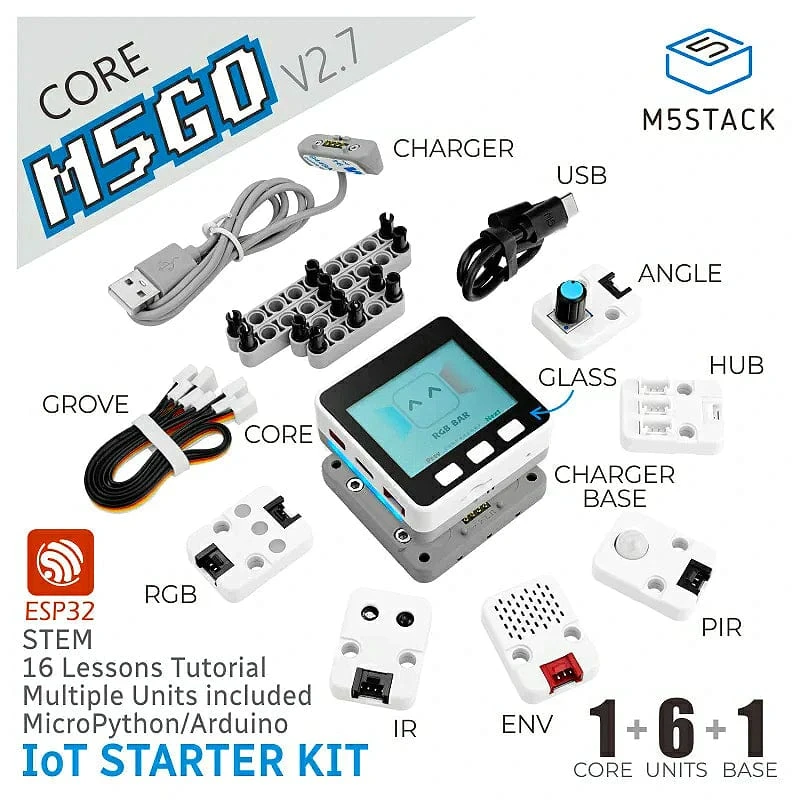

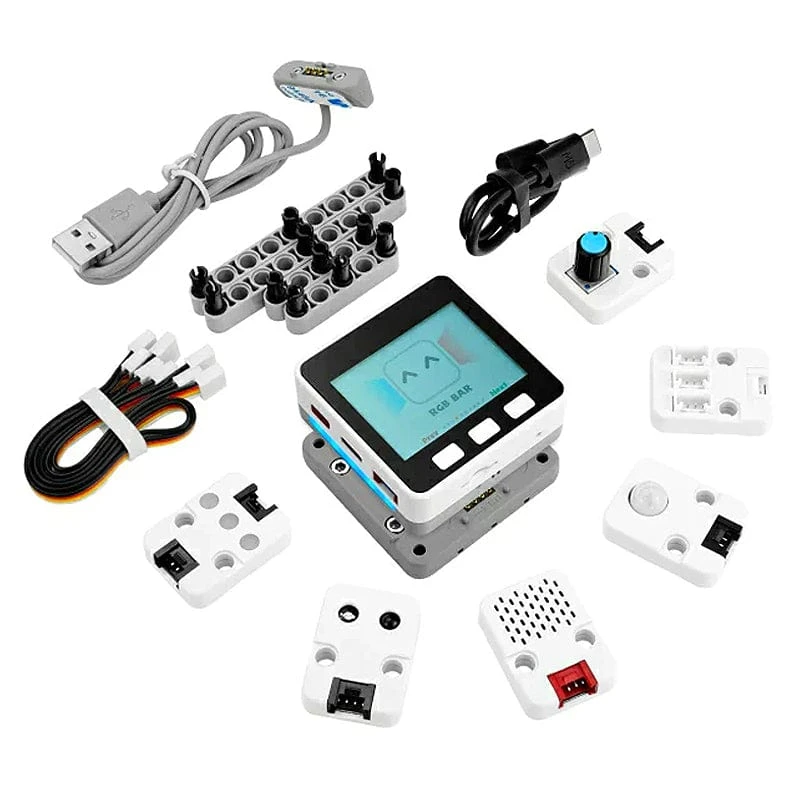

Package Contents
- 1x M5GO
- 6x Units(ENV III, IR, RGB, PIR, ANGLE, HUB)
- 4x LEGO Blocks
- 12x LEGO Connections
- 4x GROVE cable
- 1x Type-C USB (20cm)
- 1x Quick Start Guide
