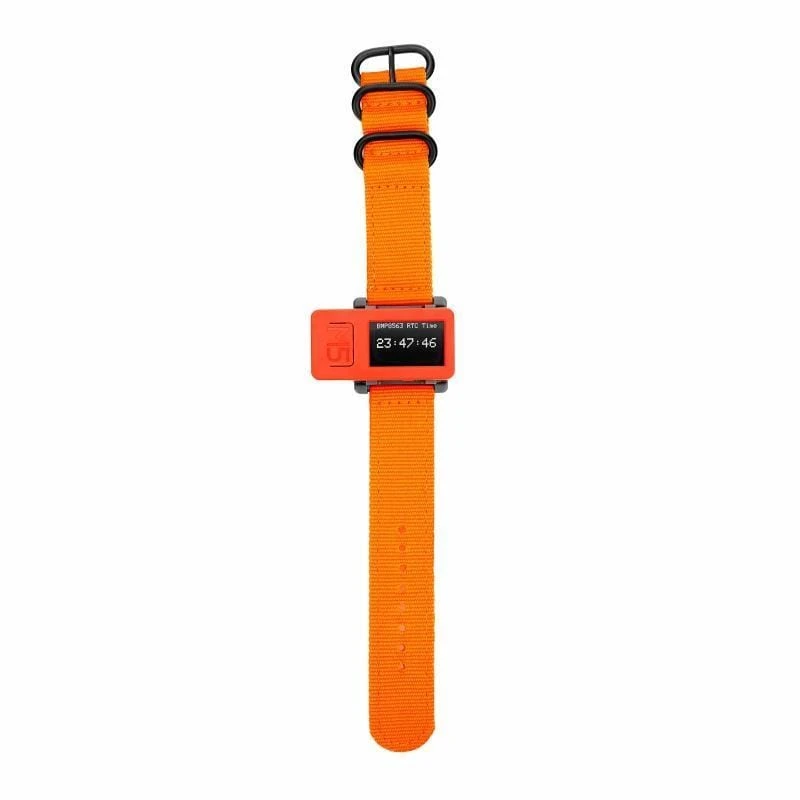

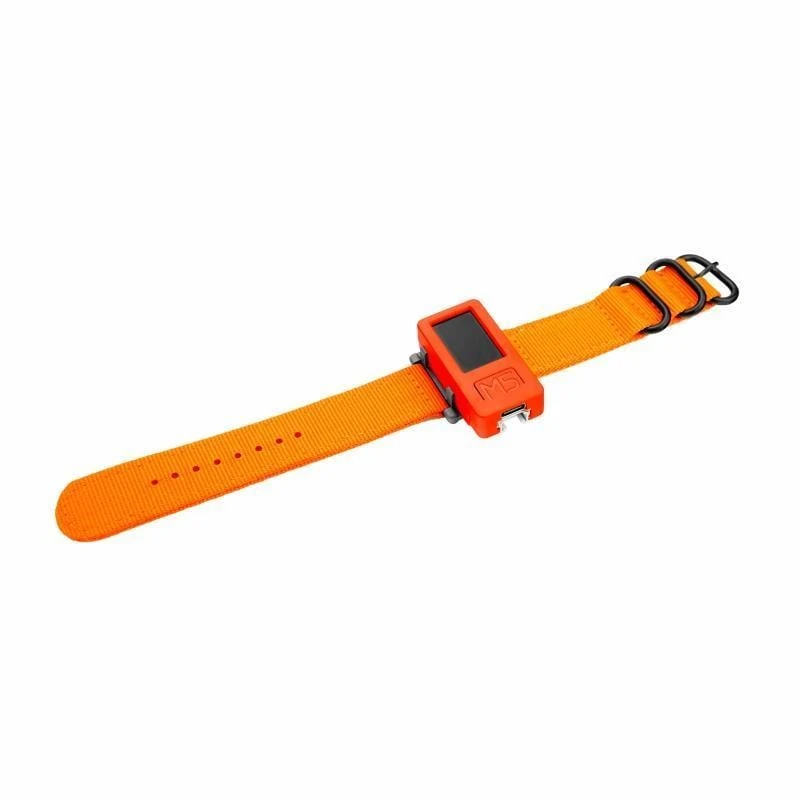

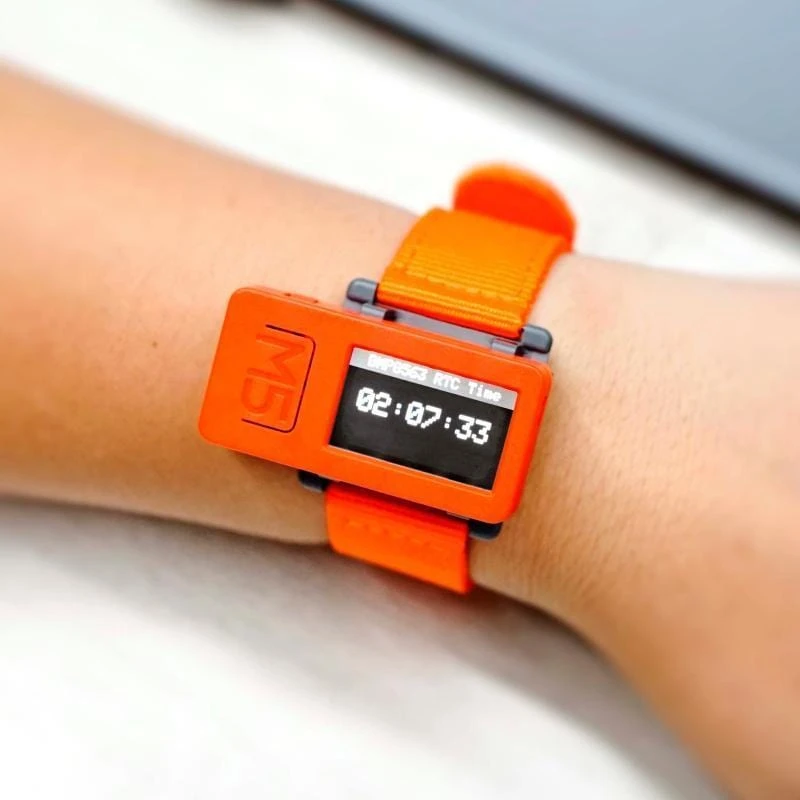

The M5StickC Plus is powered by an ESP32-PICO-D4 with Bluetooth 4.0 and WiFi, It’s an upgrade of the original M5StickC with a bigger screen! This version comes with watch accessories, allowing you to create your own cool watch projects with the M5StickC Plus!
It’s a portable, easy-to-use, open-source IoT development board. This tiny device will enable you to realize your ideas, enrich your creativity, and speed up your IoT prototyping.
Developing with M5StickC PLUS takes away a lot of the pains from the development process. The M5StickC Plus is one of the core devices in
M5Stack’s product series
. The compact body is integrated with rich hardware resources, such as infrared, RTC, Microphone, LED, IMU, Buttons, PMU and more. Improvements from the regular StickC are a buzzer, a bigger screen (1.14″ 135×240 resolution LCD Screen) and a more stable hardware design.
This revision increases the display area by 18.7% and the battery capacity from 95mAh to 120mAh. It also supports the HAT and Unit family of products!
Notes:
- Baud rate supported by M5StickC Plus: 1200 ~115200, 250K, 500K, 750K, 1500K
- Power switch operation
- Power on: Press the power button for 2 seconds
- Power off: Press the power button for 6 seconds
- The input range of VBUS_VIN and VBUS_USB is limited to 4.8-5.5V, and the internal battery will be charged through AXP192 power management when VBUS is powered.
- G36/G25 share the same port, when one of the pins is used, the other pin should be set as a floating input. For example, to use the G36 pin as the ADC input, Configuration the G25 pin as floating.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates.
Why?
Features
- ESP32-based support BLE 4.2 and WiFi
- Built-in 6-Axis IMU
- Red LED
- IR transmitter
- Microphone
- RTC
- Buttons, LCD(1.14 inch)
- Built-in Lipo Battery
- Extendable Socket
- Built-in Passive Buzzer
- Wearable & Wall-mounted
- Development Platform
UIFlow
,
MicroPython
,
Arduino

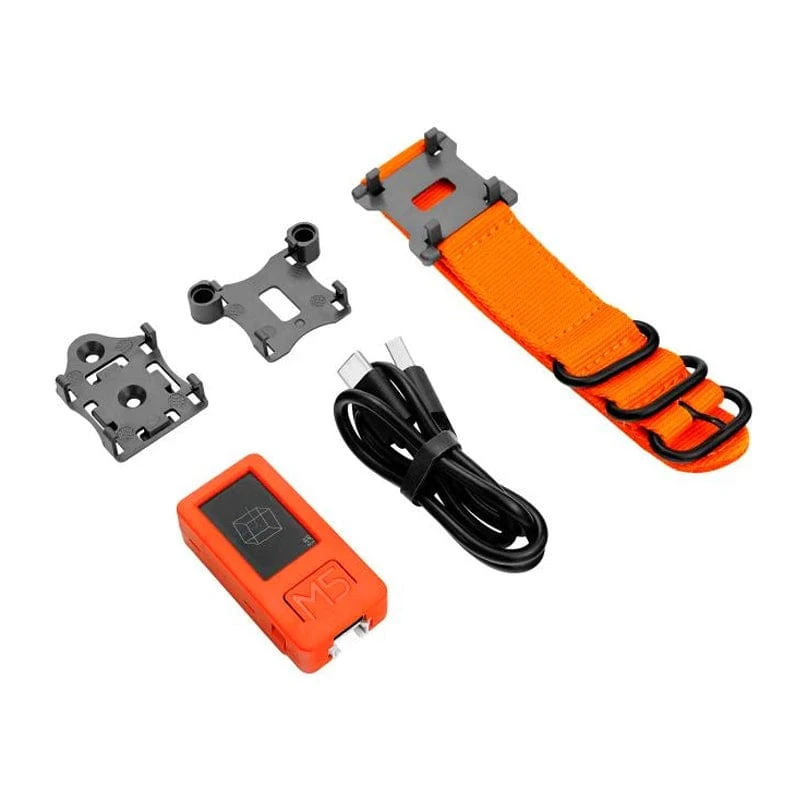

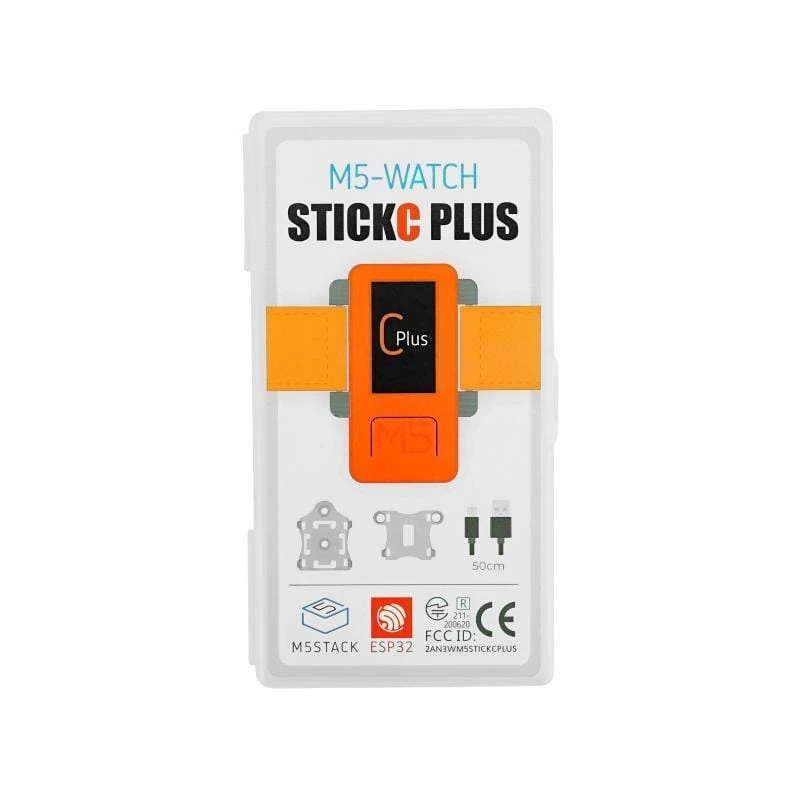

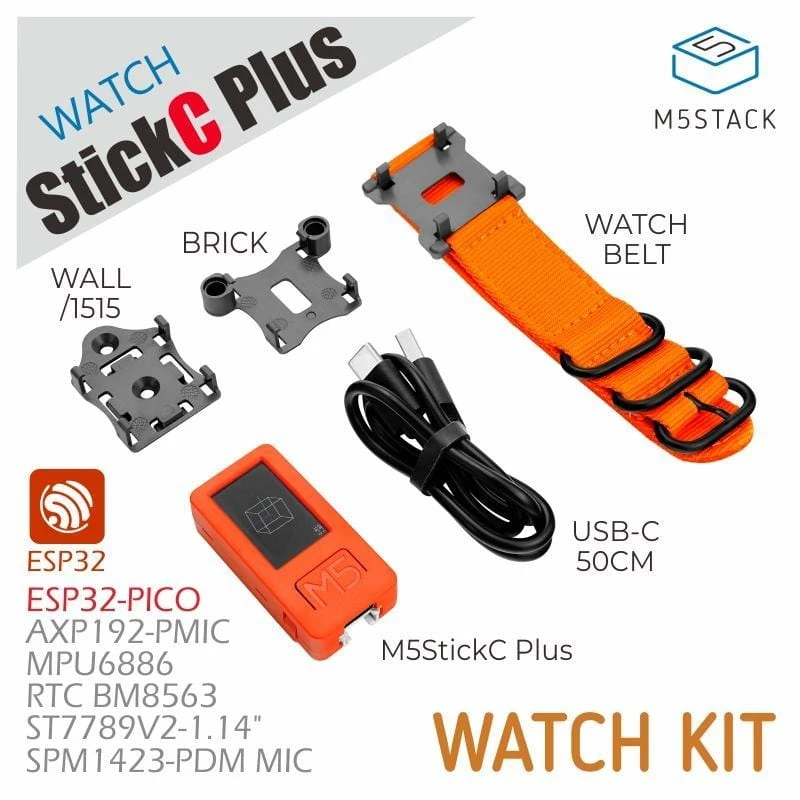

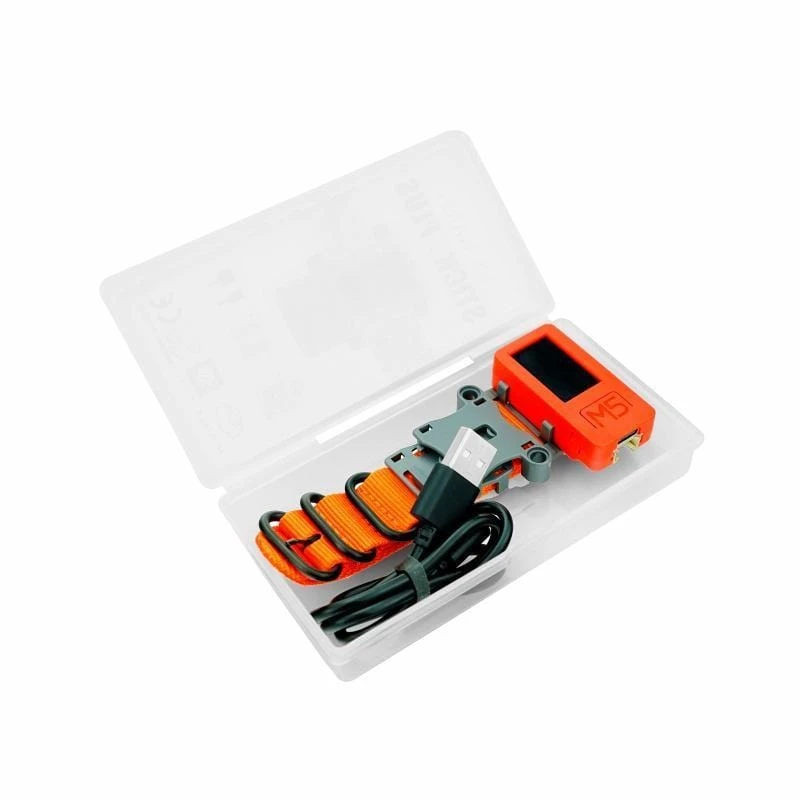

Package Contents
- 1x M5StickC Plus
- 1x 20cm USB Type-C cable

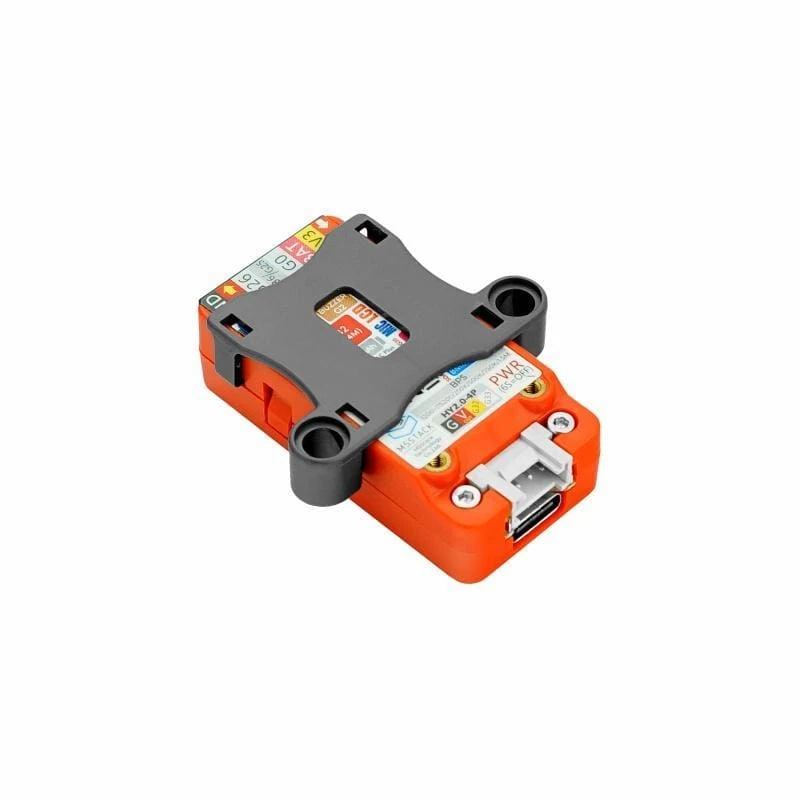

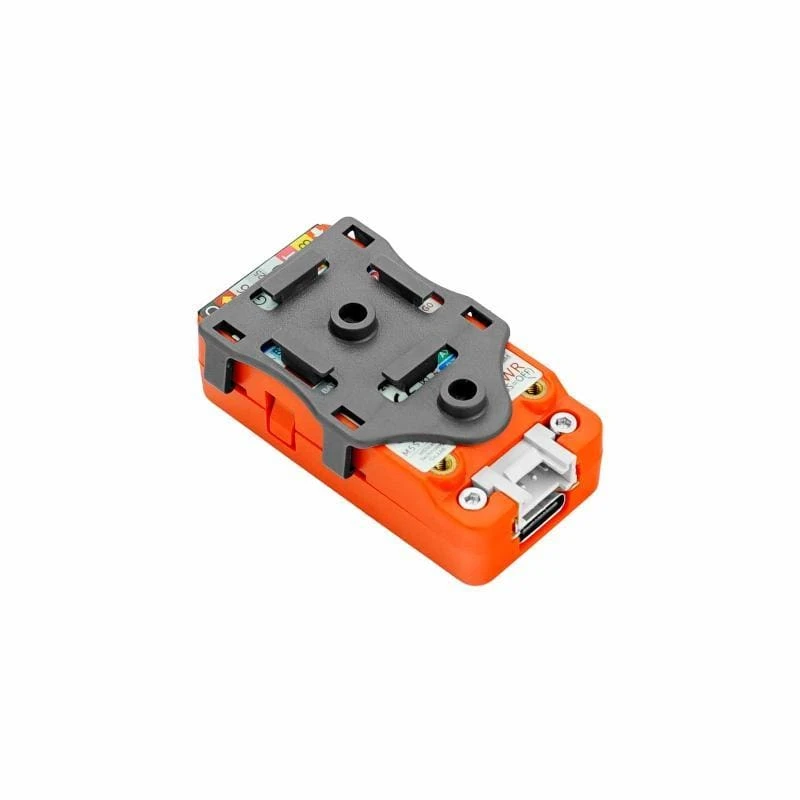

- 1x WALL/1515
- 1x Brick
- 1x Watch Belt
Specification
| Resources | Parameter |
| ESP32 | 240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual-mode Bluetooth |
| Flash Memory | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| LCD screen | 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2 |
| Button | Custom button x 2 |
| LED | RED LED |
| MEMS | MPU6886 |
| Buzzer | built-in buzzer |
| IR | Infrared transmission |
| MIC | SPM1423 |
| RTC | BM8563 |
| PMU | AXP192 |
| Battery | 120 mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| PIN port | G0, G25/G36, G26, G32, G33 |
| Operating Temperature | 0°C to 60°C |
| Net weight | 15g |
| Gross weight | 21g |
| Product Size | 48.2*25.5*13.7mm |
| Package Size | 65*25*15mm |
| Case Material | Plastic ( PC ) |
Resources
-
M5StickC Plus Documentation
-
Schematic
-
Arduino API
-
Arduino M5StickC Plus Library
-
Arduino M5StickC Plus Factory Test Code
