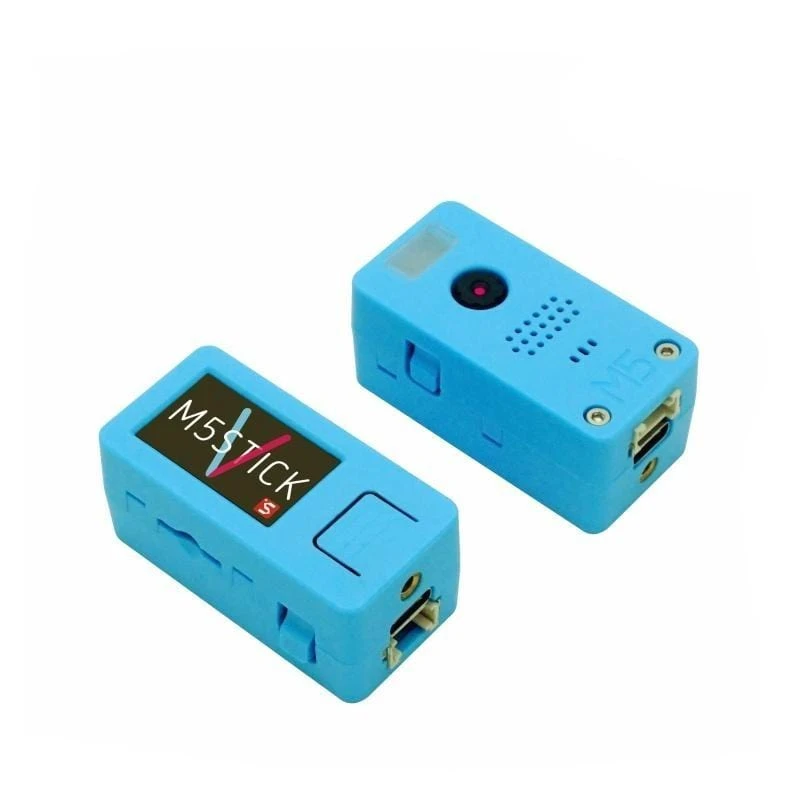

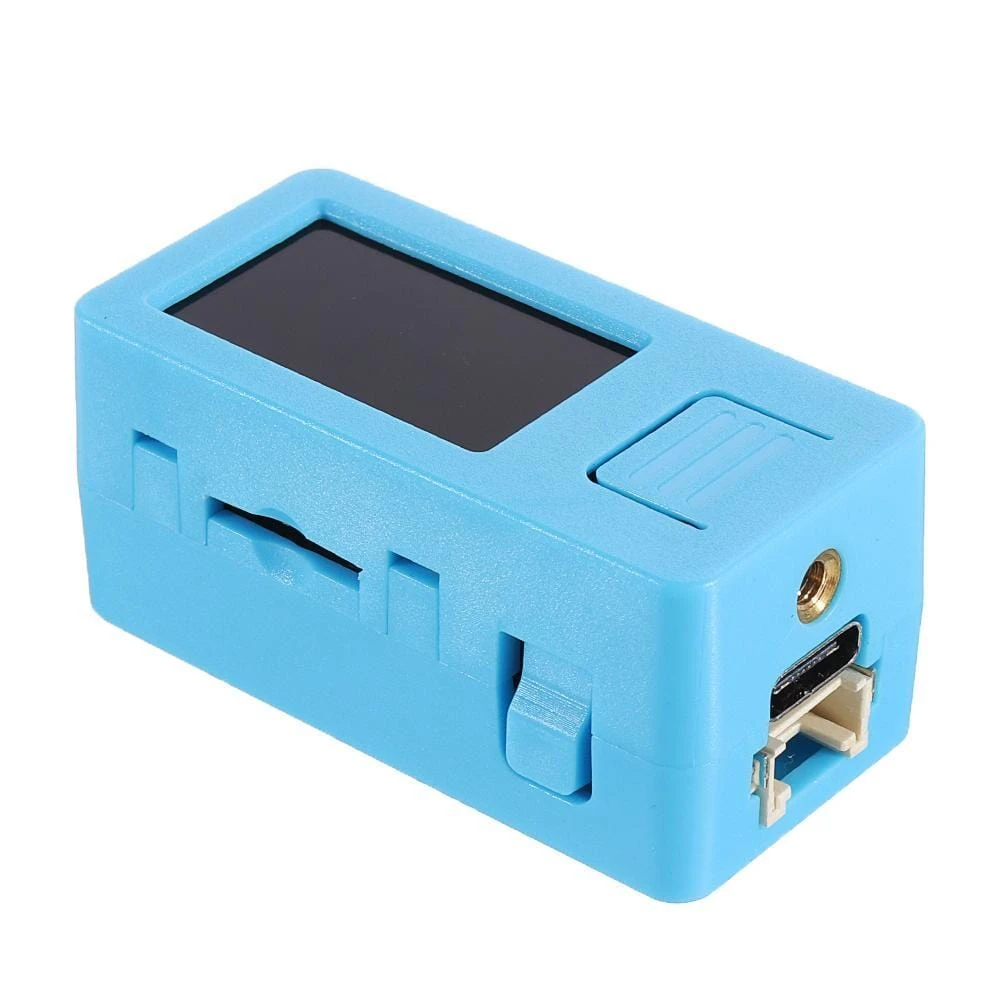

M5Stack M5StickV K210 AI Camera Development Board (Without Wifi)

A compact AI IoT camera development board with 64bit image processing capabilities.

Powered by a Kendryte K210 dual-core 64bit RISC-V CPU, advanced neural network processor and OmniVision OV7740 image sensor, M5StickV is a great option for low power embedded machine vision. It also has a speaker with built-in DAC, an IPS screen, motion sensor and inbuilt battery.

For more information and for help getting started, click here

---

Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates.

Why?

---

Features

• Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
• Dual Independent Double Precision FPU
• Neural Network Processor(KPU) / 0.8Tops
• Field-Programmable IO Array (FPIOA)
• Dual hardware 512-point 16bit Complex FFT
• SPI, I2C, UART, I2S, RTC, PWM, Timer Support
• AES, SHA256 Accelerator
• Direct Memory Access Controller (DMAC)
• Micropython Support
• Firmware encryption support
• Case Material: PC + ABS

Includes

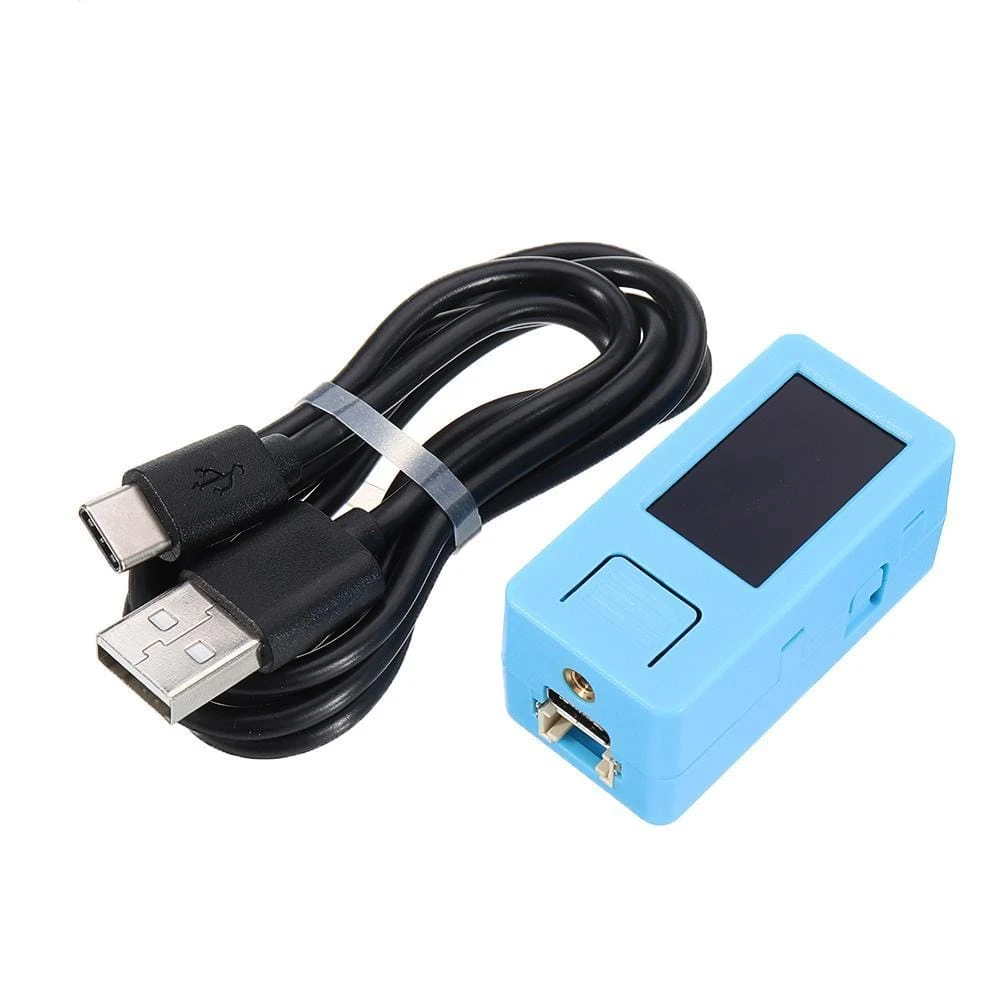

• 1x M5StickV
• 1x USB Type-C cable (100cm)

Specifications

Resources	Parameter
Kendryte K210	Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
SRAM	8Mbit
Flash	16M
Power input	5V @ 500mA
KPU Parameter size of neural network	5.5MiB – 5.9MiB
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
RGB LED	RGBW x 1
Button	Custom button x 2
IPS screen	1.14 TFT, 135 x 240, ST7789
Camera	OV7740
PMU	AXP192
Battery	200mAh
External storage	TF Card/Micro SD
MEMS	MPU6886
Size	144 x 44 x 43mm
Weight	82g
Case Material	Plastic ( PC )
