M5Stack Unit Cam Wi-Fi Camera DIY Kit (OV2640)

This Camera DIY Kit is a powerful DIY ESP32 WiFi camera kit, which includes two lens modules, wide-angle fisheye + regular view, both using an OV2640 image sensor supporting up to 200w pixel output. With a compact size, high resolution and focus capabilities, it’s excellent for a variety of IoT image capture applications.

• High Flexibility
• Lens focus support
• GROVE expansion interface with programmable RGB light
• Plug and Play
• Self image transfer firmware with UART/WIFI image transfer support
• Integrated image parameter API interface (white balance, exposure, gain, size, etc.)
• PC-based debugging tools
• Support UIFlow graphical programming platform for one-click invocation and cloud transmission
• Works with Arduino, ESP32-IDF and other mainstream development platforms

Features

• Plug-and-play
• Rich image processing API interface
• Fascinating DIY structure model cover
• Built-in ESP32 MCU

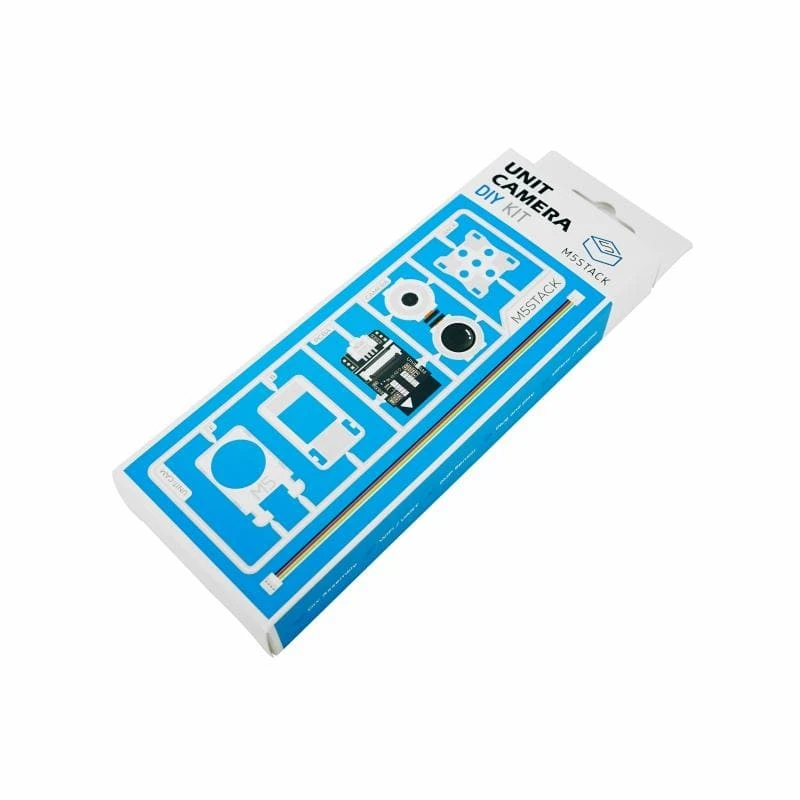

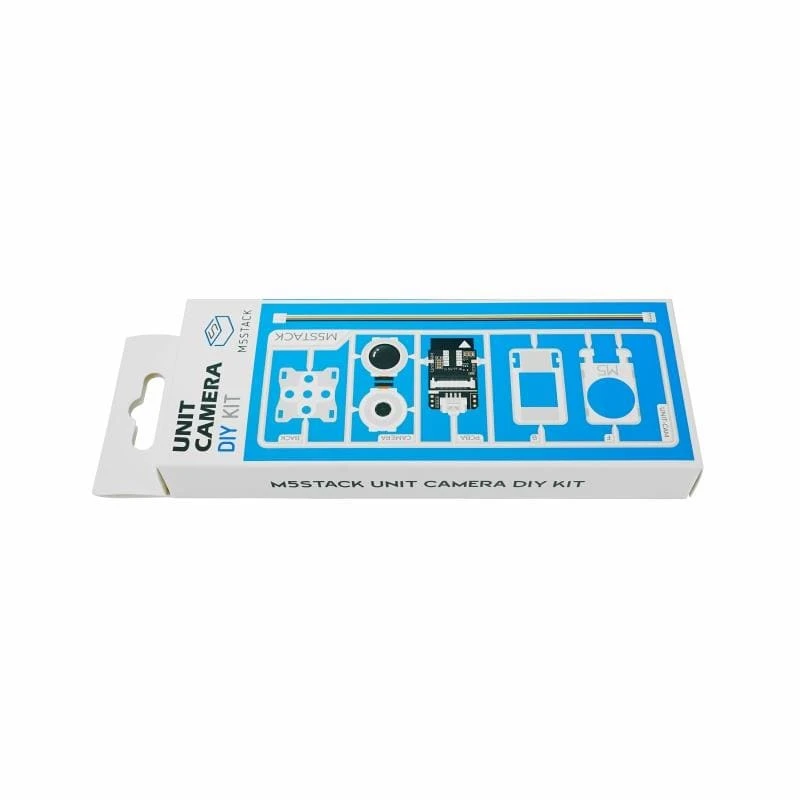

Package Contents

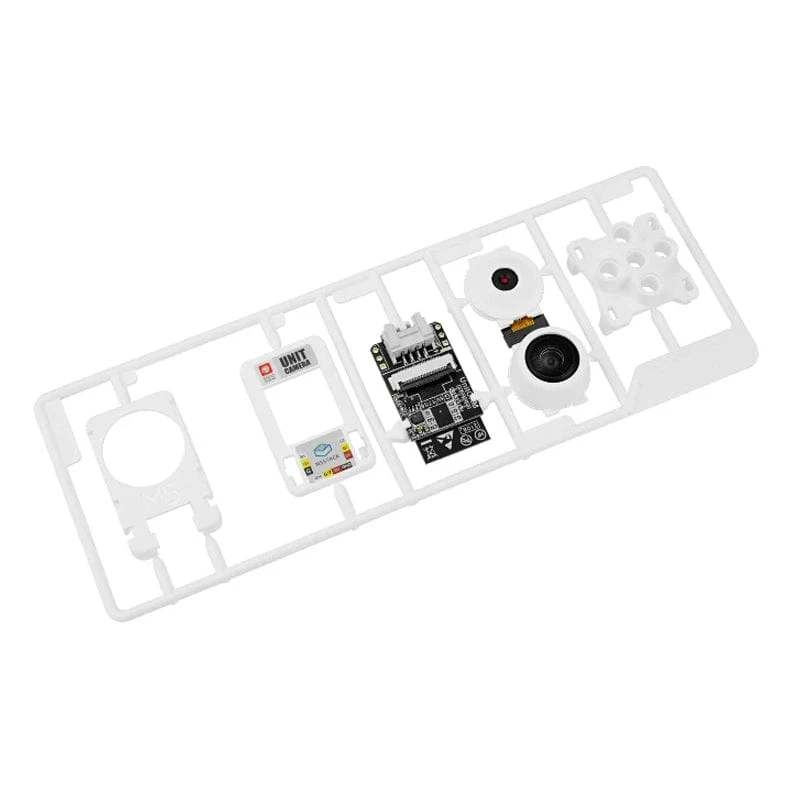

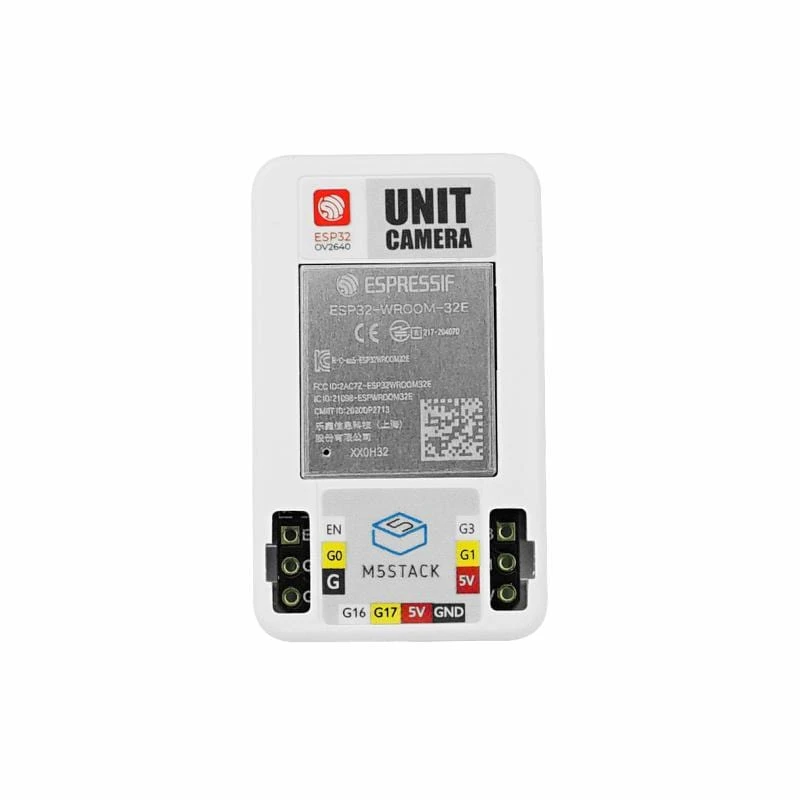

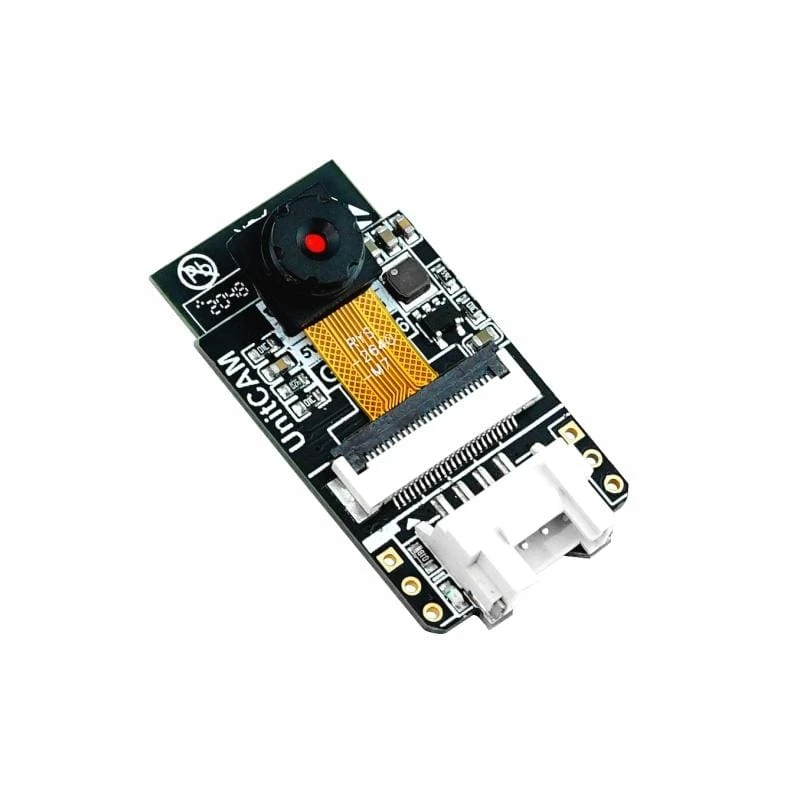

• 1x Unit CAM core board

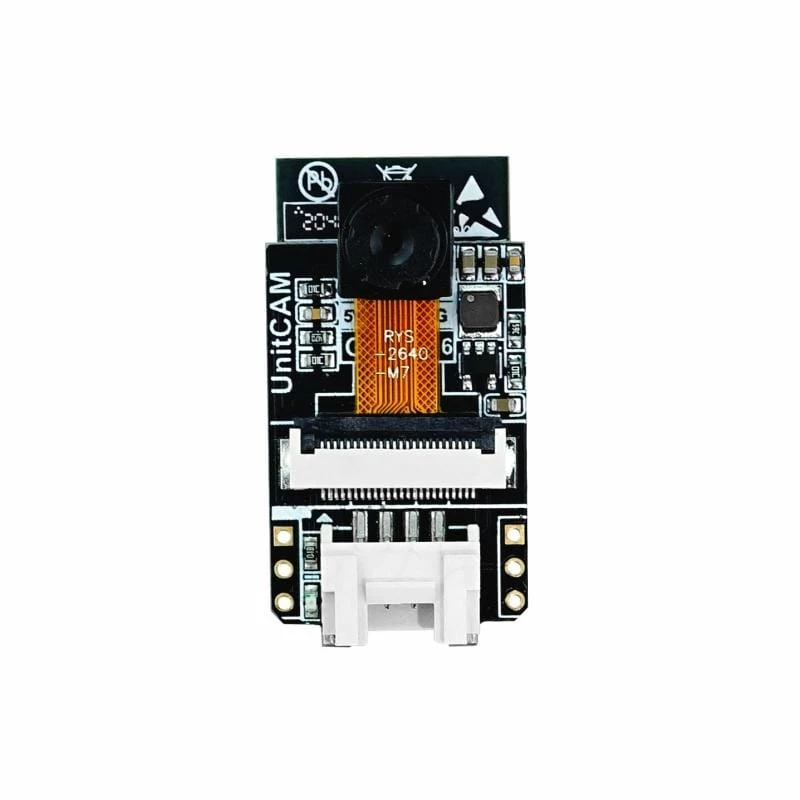

• 1x OV2640 camera (FOV:66.5°)
• 1x OV2640 camera (FOV:160°)
• 1x Model Housing Kit
• 1x Camera Back Clip (LEGO compatible)
• 1x HY2.0-4P Cable

Specifications

Specifications	Parameters

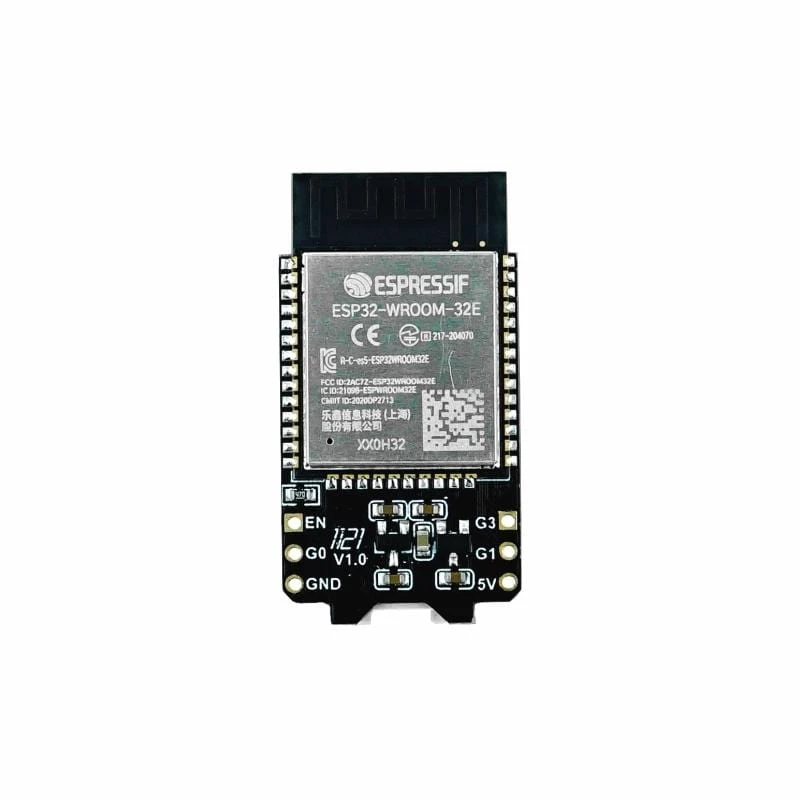

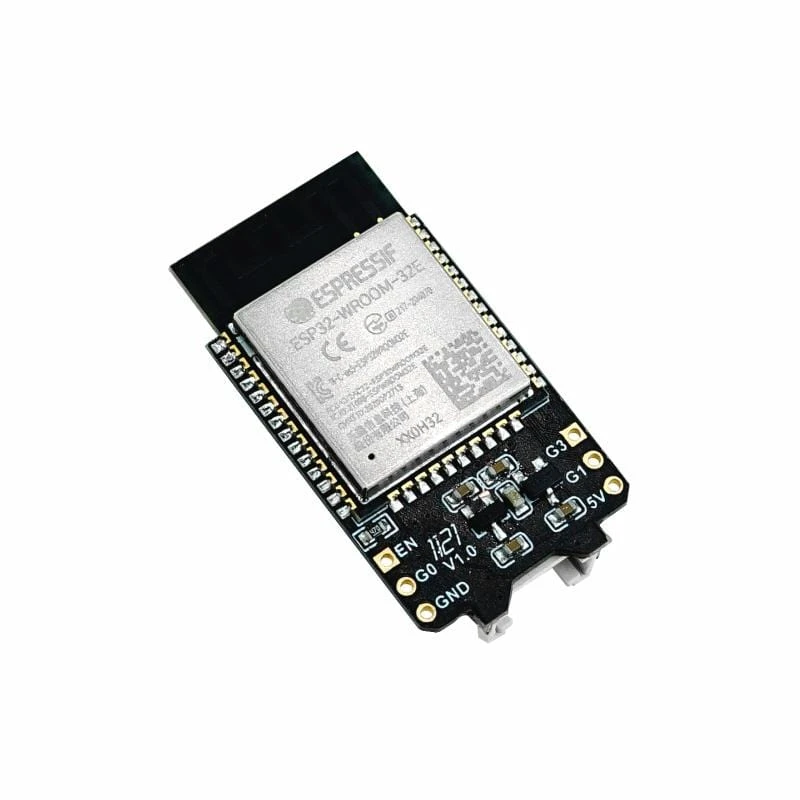

ESP32-WROOM-32E	240MHz Dual Core, 600DMIPS, 520KB SRAM, Wi-Fi, Dual Mode Bluetooth
Flash	4MB

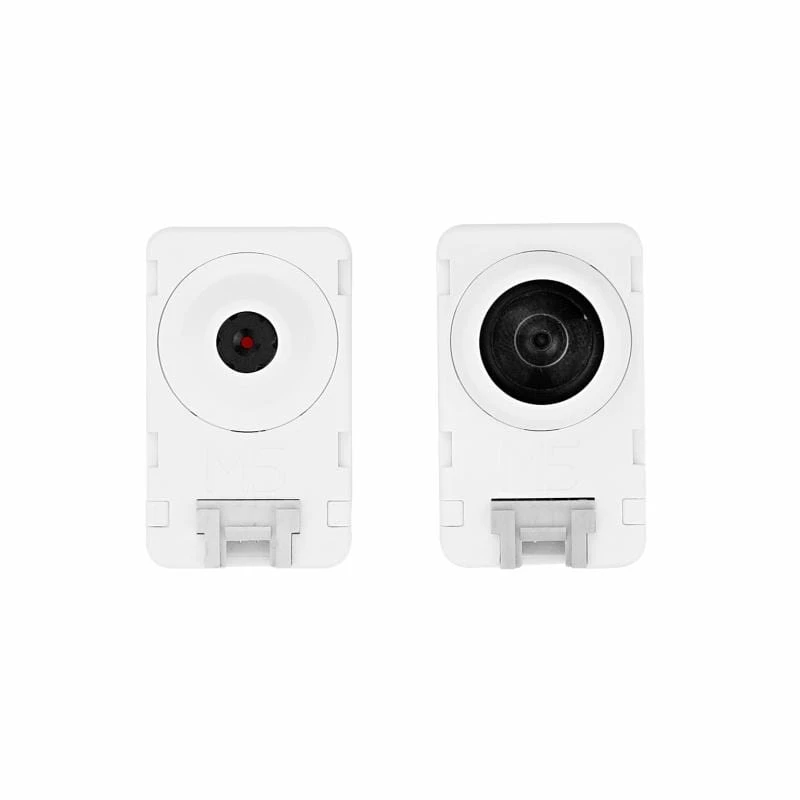

Wide Angle Fisheye Lens	Focal length: 1.0±5%mm Aperture: 2.2±5% Lens type: 1/4inch Field of view: 160° Pixels: 200w Reverberation: -135% Sensitive chip: OV2640
Conventional view lens	Focal length: 4.8±5%mm Aperture: 2.4±5% Lens type: 1/4inch Field of view: 65° Pixels: 200w Reverberation: <1% Sensor chip: OV2640
Firmware default communication method	UART: 115200bps 8N1
Camera firmware default output image	QVGA@28fps, VGA@13fps, support for adjustments (UXGA, SXGA, XGA, and other larger image sizes output)
Sensor output format support	YUV(422/420)/YCbCr422,8-bit compressed data, RGB565/555,8-/10-bit raw RGB data
Net Weight	21.8g
Gross Weight	49.1g
Model board	11 x 66 x 181mm
Fisheye camera assembly size	40 x 24 x 17.2mm
Assembly size for normal camera	40 x 24 x 11m
Package Size	25 x 73 x 220mm
