M5Stack UnitV K210 AI Camera M12 Version (OV7740)

Introducing the UNIT-V M12 AI Camera – the ultimate embedded solution for machine vision enthusiasts and professionals alike. This powerful camera unit combines cutting-edge technology with a compact design to give a great performance.

Equipped with an M12 lens and powered by the advanced K210 processor, the UNIT-V M12 offers unparalleled processing capabilities. Its dual-core 64-bit RISC-V CPU and neural network processor edge computing system-on-chip ensure efficient and lightning-fast operations, enabling seamless execution of complex algorithms.

The camera unit features an OV7740 wide-angle camera module with an M12 optical lens, providing versatility for different imaging requirements. Users have the freedom to replace the lens with other M12 options, allowing for customised imaging solutions. Additionally, the UNIT-V M12 boasts two programmable buttons and a TF card expansion slot, providing convenient control and ample storage capacity.

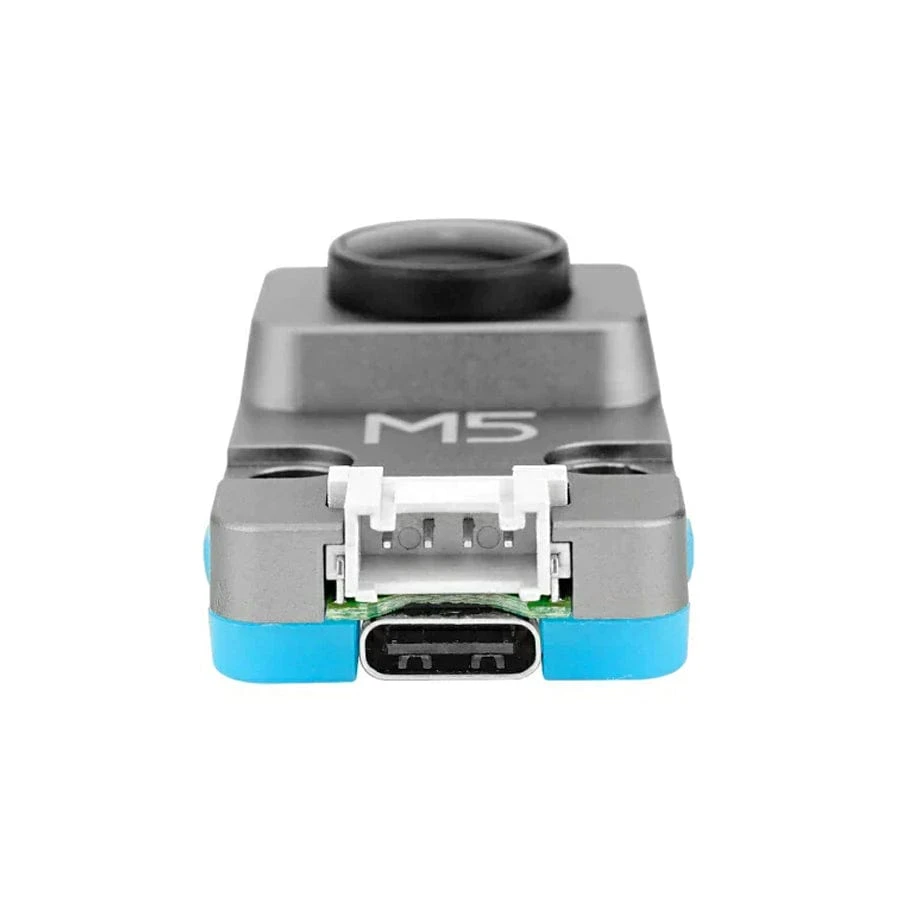

Designed for seamless integration, the UNIT-V M12 comes equipped with an HY2.0-4P interface and a TYPE-C interface, enabling effortless data connection to the controller. Its compact form factor makes it suitable for embedding in various devices, while its machine vision processing capabilities enable a wide range of image recognition tasks. From the real-time acquisition of target size and coordinates to identifying object types, this camera excels at delivering accurate and actionable data.

One of the standout features of the UNIT-V M12 is its ability to perform convolutional neural network calculations. This empowers users with a low-threshold machine vision solution, making it accessible to both beginners and experts in the field.

Features

• Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
• Dual Independent Double Precision FPU
• 8MiB 64bit width On-Chip SRAM
• Neural Network Processor (KPU) / 0.8Tops
• Field-Programmable IO Array (FPIOA)
• AES, SHA256 Accelerator
• Direct Memory Access Controller (DMAC)
• Micropython Support
• Firmware encryption support
• On-board Hardware resources:
  • Flash: 16M
  • Camera: OV7740
  • Button: button: x2
  • External Storage: TF card/Micro SD
  • Interface: HY2.0/compatible GROVE

Specifications

Resources	Parameters
Kendryte K210	Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
SRAM	8MiB
Flash	16M
Input voltage	5V @ 500mA
KPU Neural network parameter size	5.5MiB – 5.9MiB
Interface	TypeC 1x, GROVE (I2C+I/0+UART) 1x
Button	Custom button x 2
Image Sensor	M12 wide-angle lens ov7740
FOV	80°
External storage	TF Card/Micro SD
Shell material	Plastic ( PC )+CNC (ALUMINIUM)

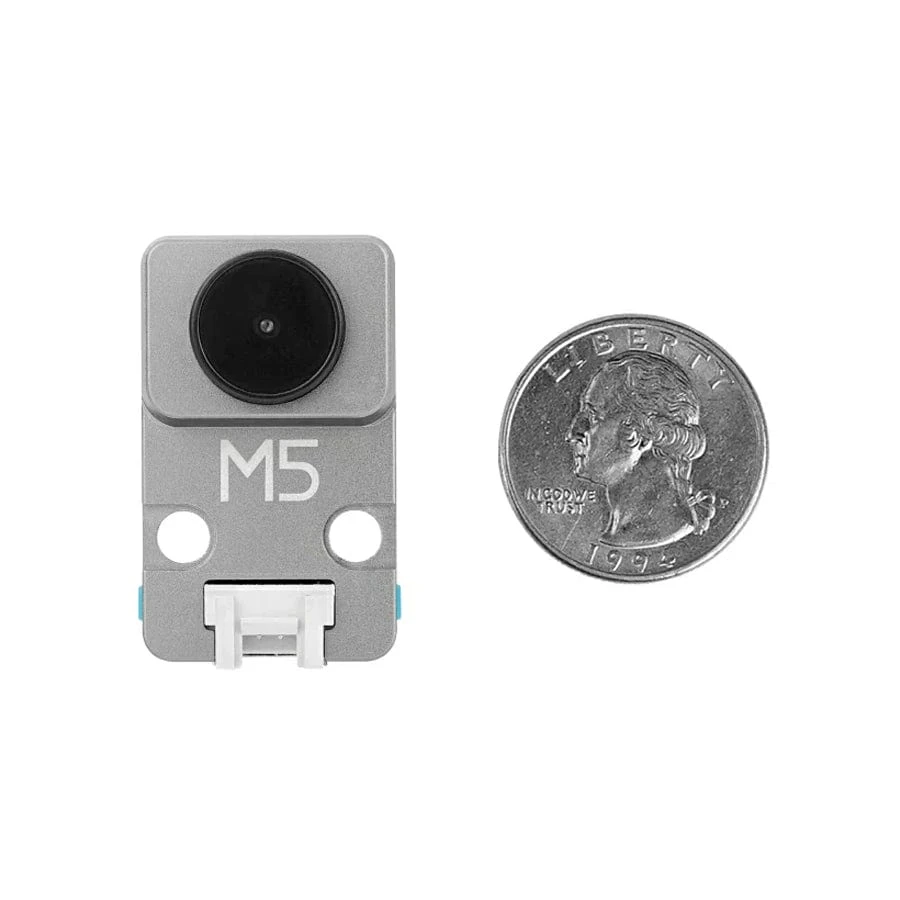

Product Size	40 x 24 x 16.4mm
Package Size	70 x 50 x 30mm
Product Weight	13.9g
Package Weight	52.6g

Resources

• Product Wiki

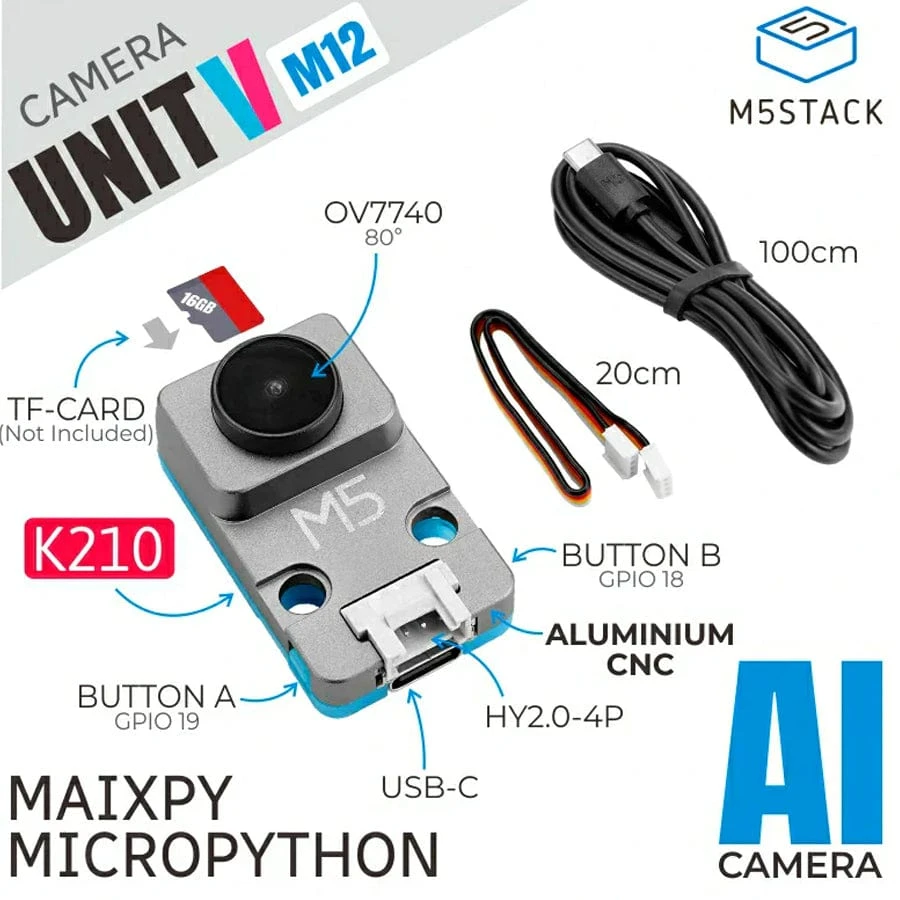

Package Contents

• 1x Unit V M12
• 1x 20cm 4-Pin Grove Cable
• 1x 100cm USB-C Cable
