M5stick T-Lite Thermal Camera Dev Kit (MLX90640)

The T-Lite is an integrated thermal imaging acquisition device with an online detection function. The product is mainly composed of the M5StickC-PLUS and UNIT THERMAL, using an MLX90640-BAA infrared imaging sensor. The main control uses an ESP32-PICO-D4 chip, with a WIFI function, 135 x 240 resolution TFT screen, and a built-in 160mAh battery. Users can set the high-temperature warning function, and view temperature images and data in real time, through the cloud and LAN.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates.

Why?

---

Features

• ESP32-PICO based, WIFI
• Buttons, LCD(1.14 inch)
• Built-in Lithium Polymer Battery
• Built-in Passive Buzzer
• Field of View: 110°×75°
• Measurement Range: -40°C ~ 300°C

Specifications

Resources	Parameters
MCU	ESP32-PICO,240MHz dual core, 600 DMIPS, 520KB SRAM
Sensor	MLX90640
Field of View	110°×75°
Resolution	32×24
Flash Memory	4MB Flash
Power Input	5V @ 500mA
Port	TypeC
LCD screen	1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
MIC	SPM1423
Buzzer	Passive buzzer
PMU	AXP192
Battery	160 mAh @ 3.7V
Product Size	69mm × 26.6mm × 6.35mm
Package Size	110mm × 87mm × 25mm
Product Weight	30.1g
Package Weight	62.9g

Resources

• Product Wiki

• Source Code

• T-Lite Firmware Easyloader Download

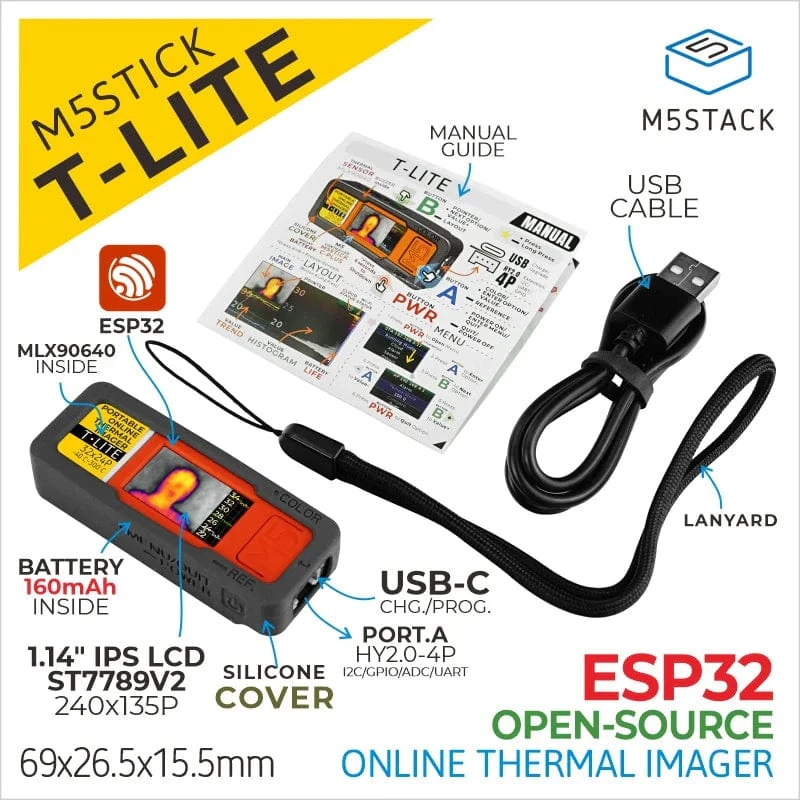

Package Contents

• 1x T-Lite
• 1x Hanging wire
• 1x Type-C USB (20cm)
• 1x User manual
