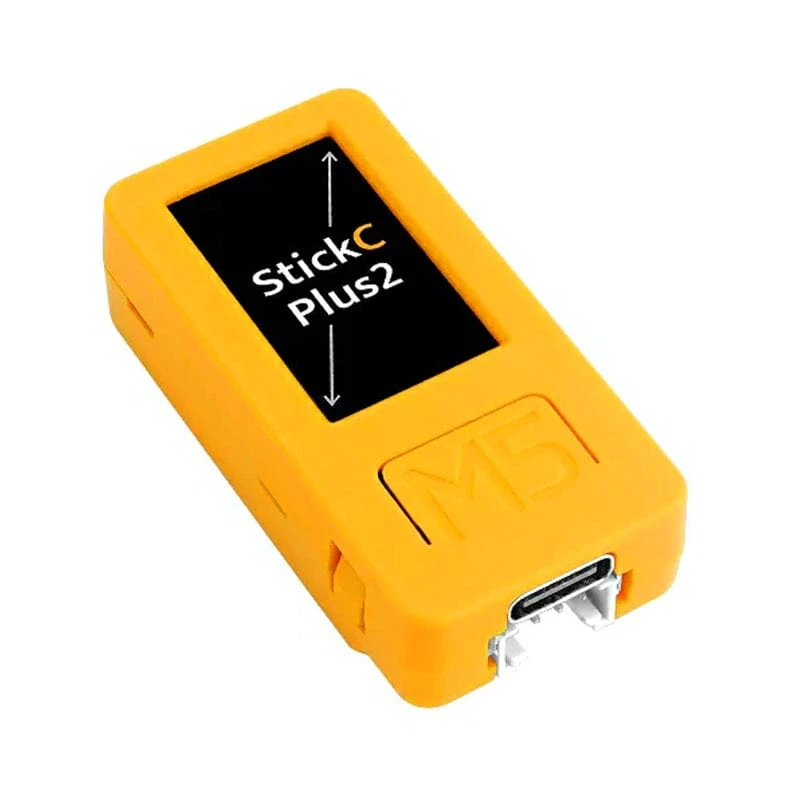

The M5StickC PLUS2 is a refined version of the
M5StickC PLUS

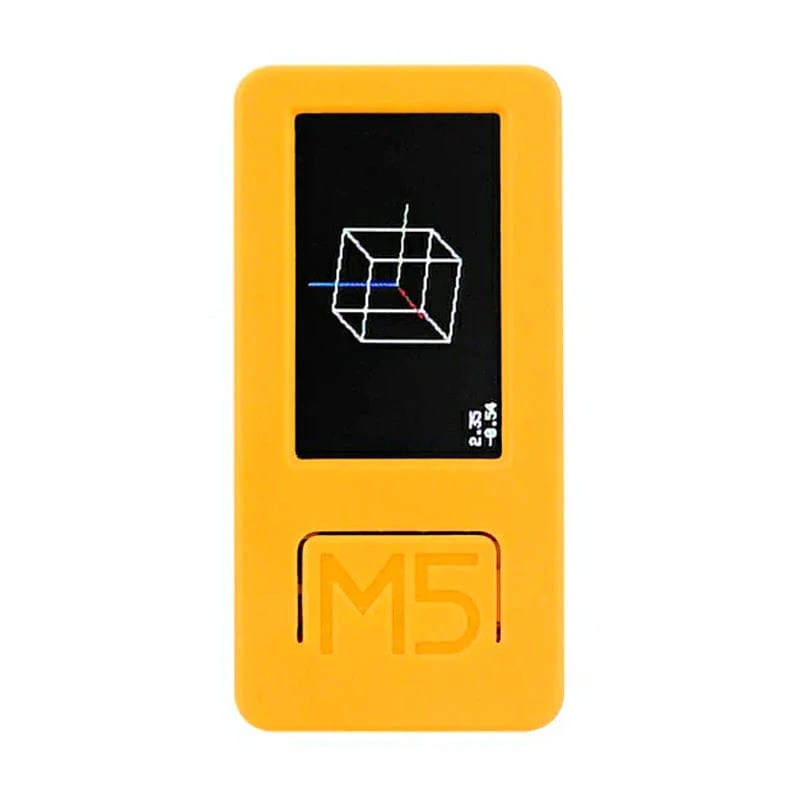

, featuring the ESP32-PICO-V3-02 chip with built-in WiFi. Packed into its compact size are various hardware components, including infrared, RTC, a microphone, and much more! Its 1.14″ TFT screen has a resolution of 135 x 240, driven by the
ST7789V2
. With an upgraded 200mAh battery and support for
HAT
and
Unit
series products, this development tool is versatile and beginner-friendly, making it easy to prototype IoT projects. The M5StickC PLUS2 opens up creative possibilities without overwhelming complexity.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates.
Why?
Power On:
Wake-up can be started by pressing “BUTTON C” for more than 2 seconds, or an IRQ signal triggered by RTC regularly. After triggering the wake-up signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.
Power Off:
When there is no USB external power supply, press “BUTTON C” for more than 6 seconds; Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off.
Features
- ESP32-PICO-V3-02-Base,support WiFi
- Built-in 6-Axis IMU
- IR transmitter
- Microphone
- RTC
- Buttons, LCD(1.14 inch)
- Built-in Lithium Polymer Battery@200mAh
- Extendable Socket
- Built-in Passive Buzzer
- Wearable & Wall mounted
- Compatible with multi-platform development:
-
UIFlow
-
MicroPython
-
Arduino
-
.NET nanoFramework
-
Specifications
| Resources | Parameters |
| ESP32 | ESP32-PICO-V3-02 |
| 240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash | |
| PSRAM | 2 MB PSRAM |
| Flash | 8 MB flash |
| Power Input | 5V @ 500mA |

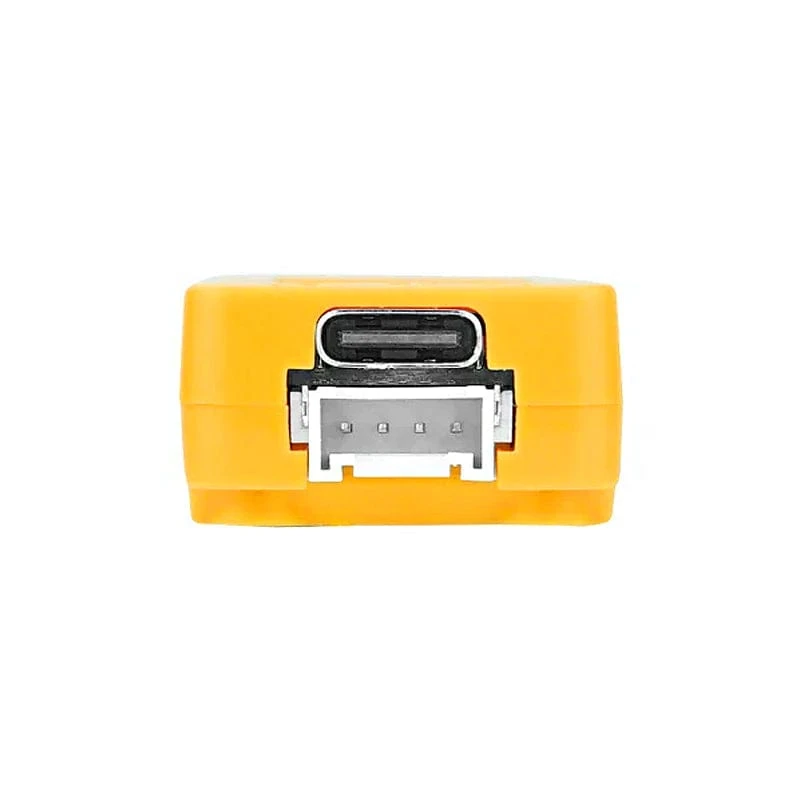

| Port | TypeC x1, GROVE (I2C+I/0+UART) x1 |
| LCD screen | 1.14″, 135 x 240 Colorful TFT LCD, ST7789v2 |
| Button | Custom button x3 |
| LED | Green LED |
| MEMS | MPU6886 |
| Buzzer | Built-in buzzer |
| MIC | SPM1423 |
| RTC | BM8563 |
| Battery | 200mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |

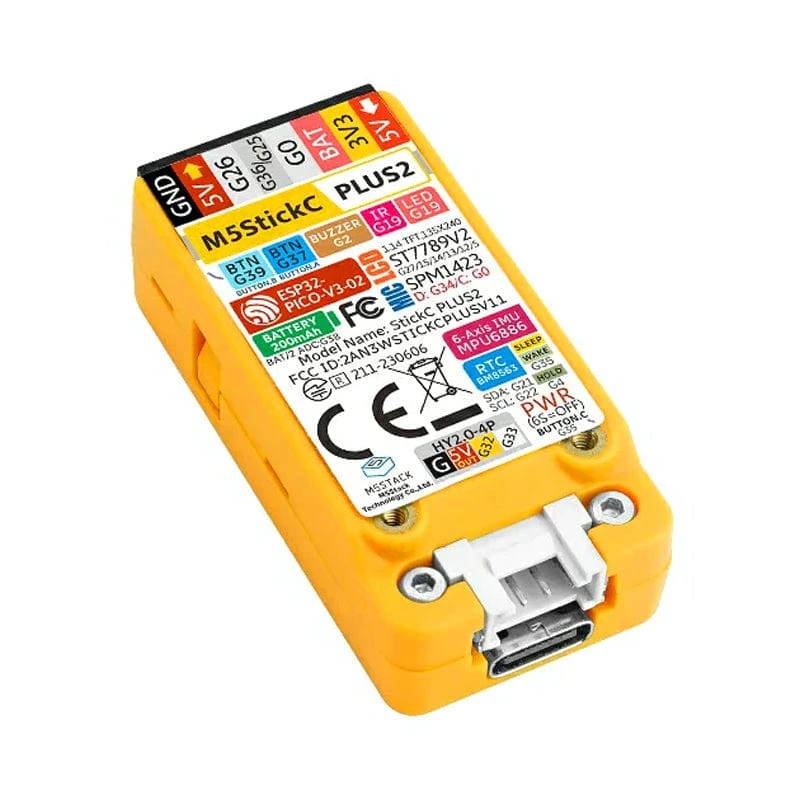

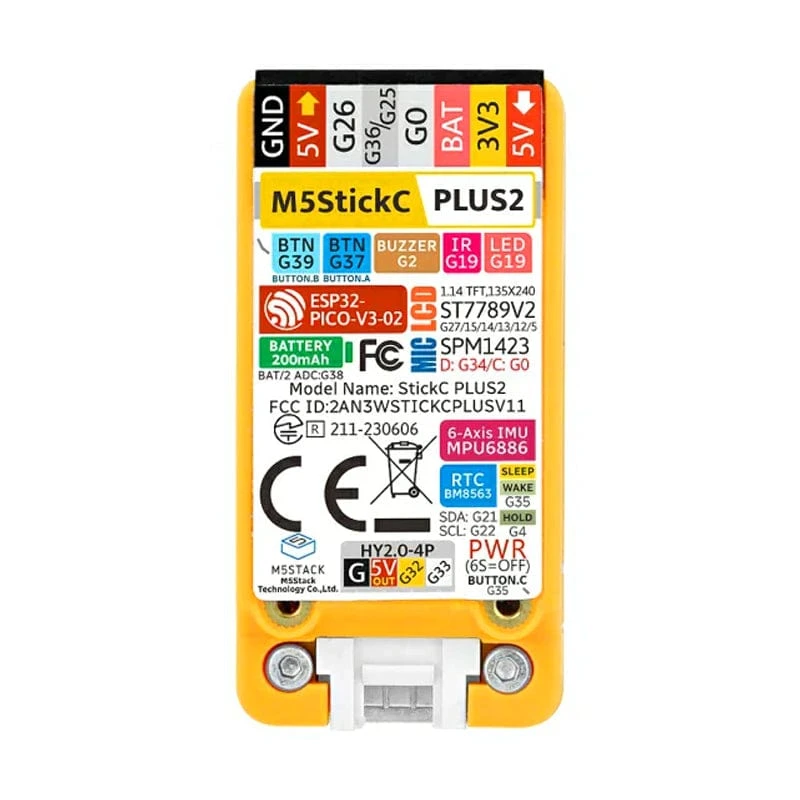

| PIN port | G0, G25/G36, G26, G32, G33 |
| Operating Temperature | 0°C to 60°C |
| Case Material | Plastic (PC) |
| Product Size | 48 x 25 x 13mm |
| Package Size | 114 x 64 x 23mm |
| Product Weight | 17g |
| Package Weight | 24.8g |
Driver Installation
Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP34X (for CH9102) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. If the program cannot be downloaded normally (the prompt is overtime or failed to write to target RAM), you can try to reinstall the device driver.
| Driver Name | Applicable Driver Chip | Download Link |
| CH9102_VCP_SER_Windows | CH9102 | Download |
| CH9102_VCP_SER_MacOS v1.7 | CH9102 | Download |
Resources
-
Product Wiki
-
Schematic
-
ESP32-PICO-V3-02
Package Contents
- 1x M5StickC Plus2
