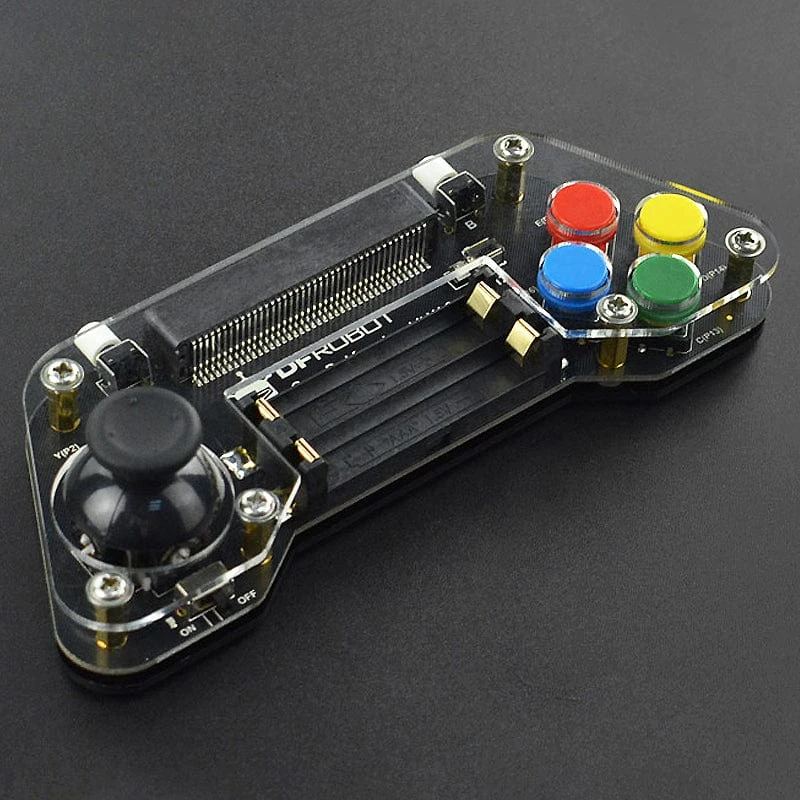

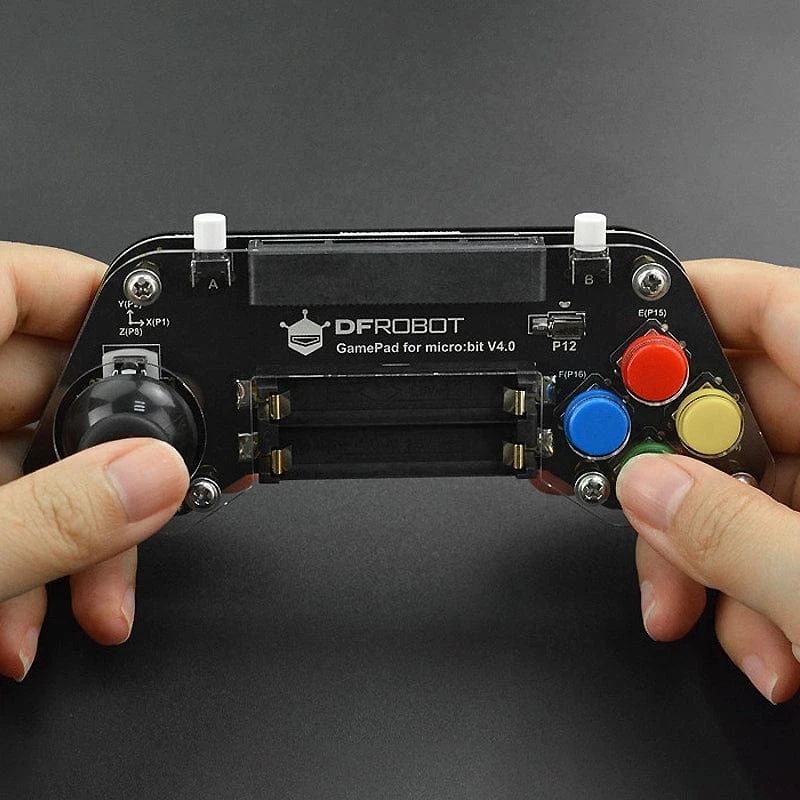

Micro:GamePad V4 For Micro:bit

GamePad V4.0 for micro:bit is a programmable gamepad for the

BBC micro:bit

(not included) featuring a high-precision three-axis analog amount joystick.

The GamePad is fully user-programmable, allowing you to fit it into your project where you like – control robots, make games and more!

The combination of joystick and gamepad allows you to control a DFRobot Maqueen robot direction and speed at the same time. You can also use the 7 programmable buttons for your own projects, coding them with

MakeCode

as you see fit.

The board requires

2x AAA 1.5V batteries

.

micro:bit and batteries not included.

• Two axis (X-Y) programmable analog joystick
• Up to 7 programmable keys
• Vibrating motor
• LED output

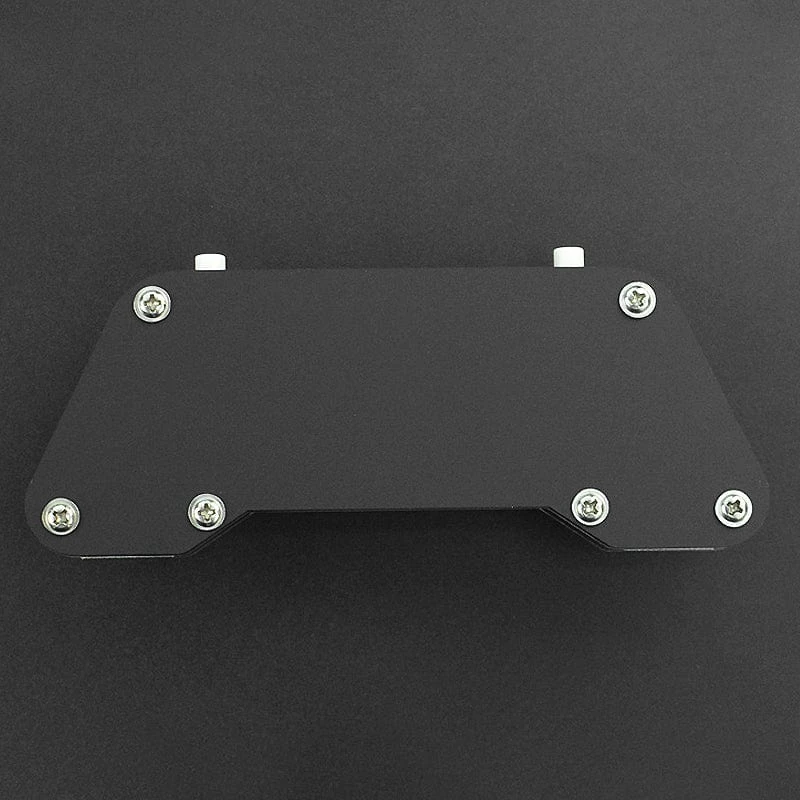

• Acrylic protection, safe to use and comfortable to handle

• Power: 3V DC (

  2 x 1.5V AAA batteries

  )

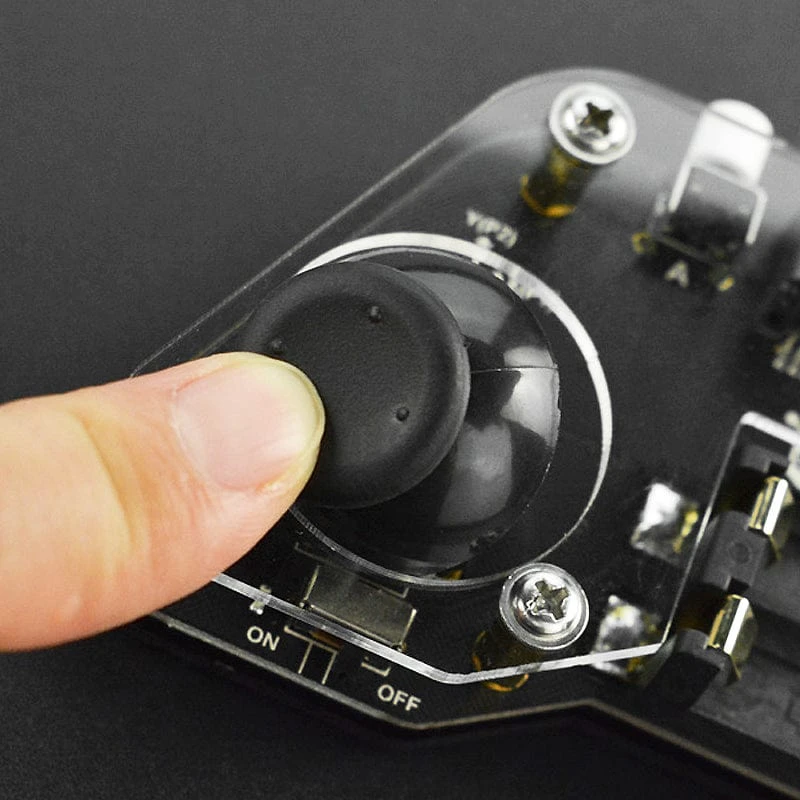

• Joystick: 2 axis analog (X: P1 Y: P2) 1 axis digital (Z: P8)
• Onboard LED and vibration motor: P12

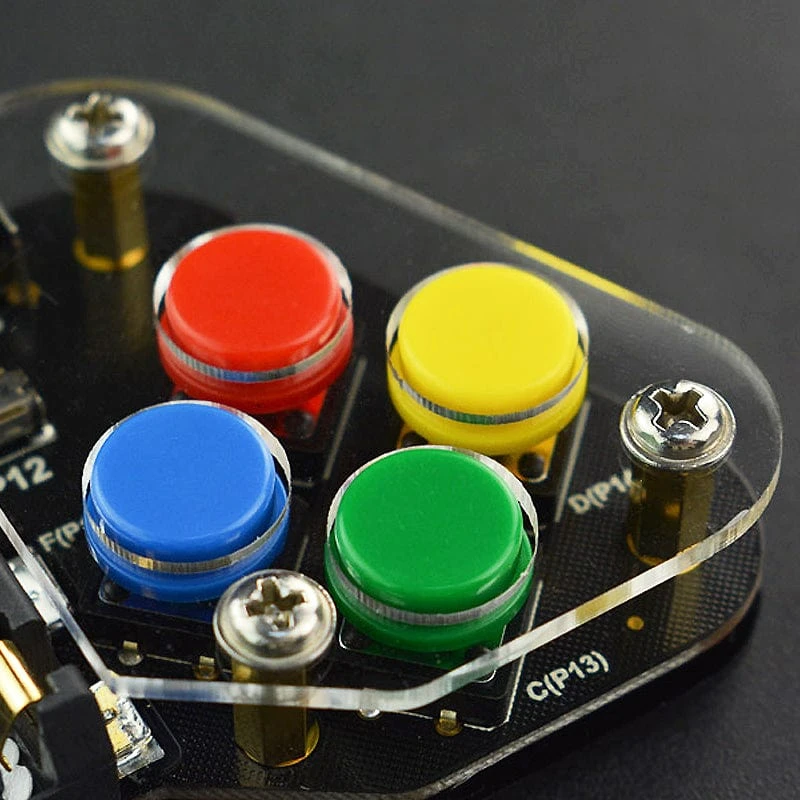

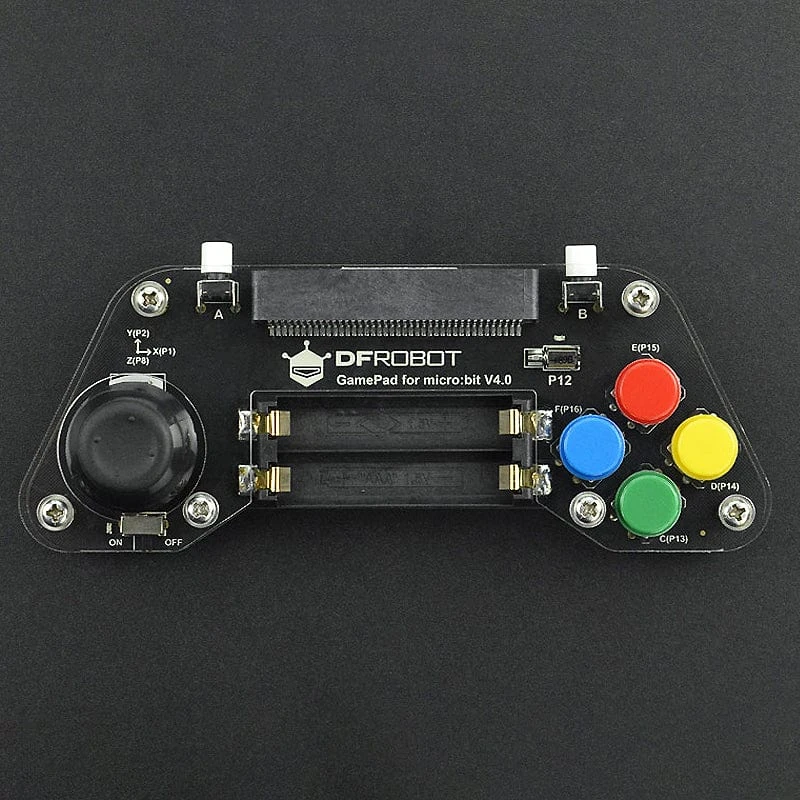

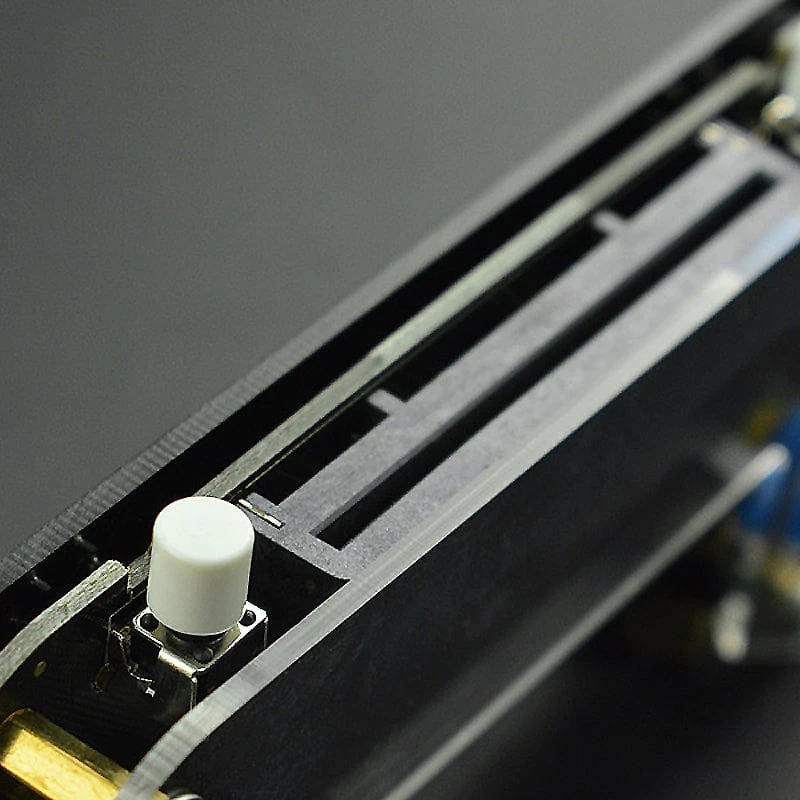

• Keys: A(A), B(B), C(P13), D(P14), E(P15), F(P16), Z(P8)
• Dimension: 148 x 57 mm

• Product Wiki for GamePad V4.0

• GitHub PDF

• 1x GamePad for micro:bit

micro:bit board and batteries not included

Revision History

• As of 25/05/2022, we are now stocking the V4 model which no longer includes an onboard buzzer
