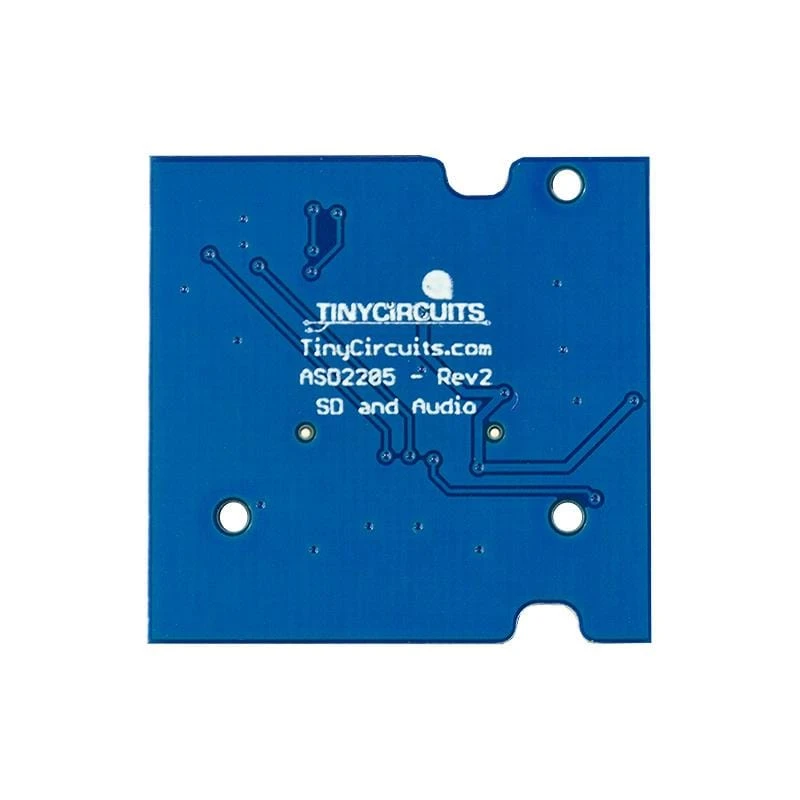

MicroSD/Audio TinyShield

This TinyShield is designed specifically for the

TinyScreen+

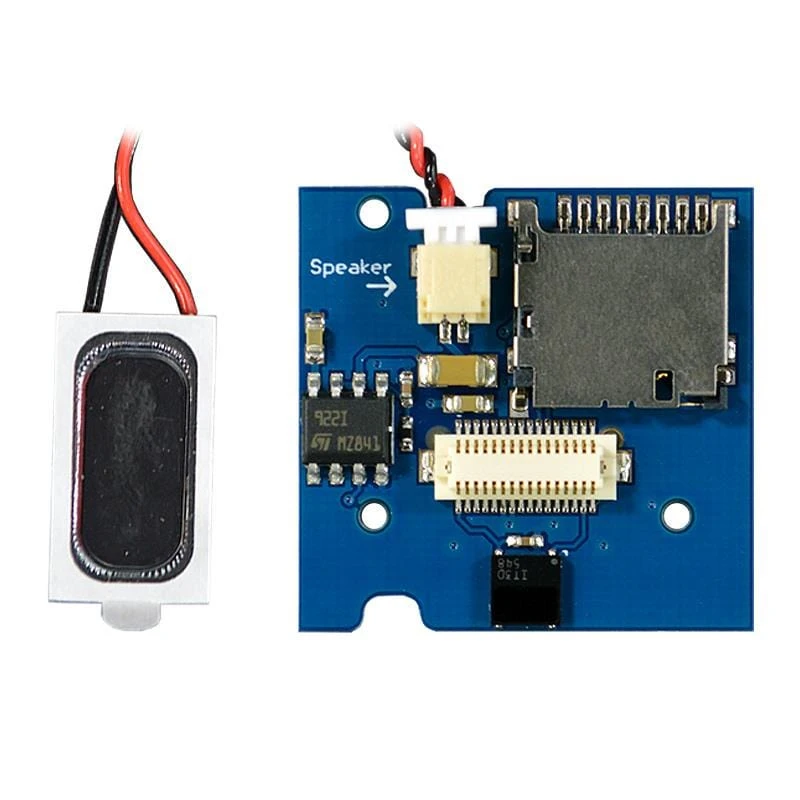

to allow for video playback in a very compact package. This TinyShield adds a microSD Adapter to store video and image files, an audio amplifier for driving a speaker, and an IR receiver. The 16×9 speaker is also included with this board and can be connected to the speaker port.

Note: This does not include the microSD card. You can get a compatible microSD card

here

.

Learn more about the

TinyDuino Platform

Specifications

microSD Specs

• Uses standard Arduino SD Card Library
• Supports most standard microSD cards and SDHC cards – cards larger than 8GB may not work!

Power Requirements

• Voltage: 3.0V – 5.5V
• Current: up to approximately 100mA while reading from microSD card

Pins Used

SPI Interface for microSD card:

• 10 – CS: This signal SPI chip select for the microSD card
• 11 – SCLK: This signal is the serial SPI clock out of the TinyDuino and into the microSD card.
• 12 – MISO: This signal is the serial SPI data out of the microSD card and into the TinyDuino.
• 13 – MOSI: This signal is the serial SPI data out of the TinyDuino and into the microSD card.

Additional:

• A0 – DAC Output: Analog output for audio amplifier

• 3 – IR Input: Output signal from infrared receiver 6.8 3.6

Dimensions

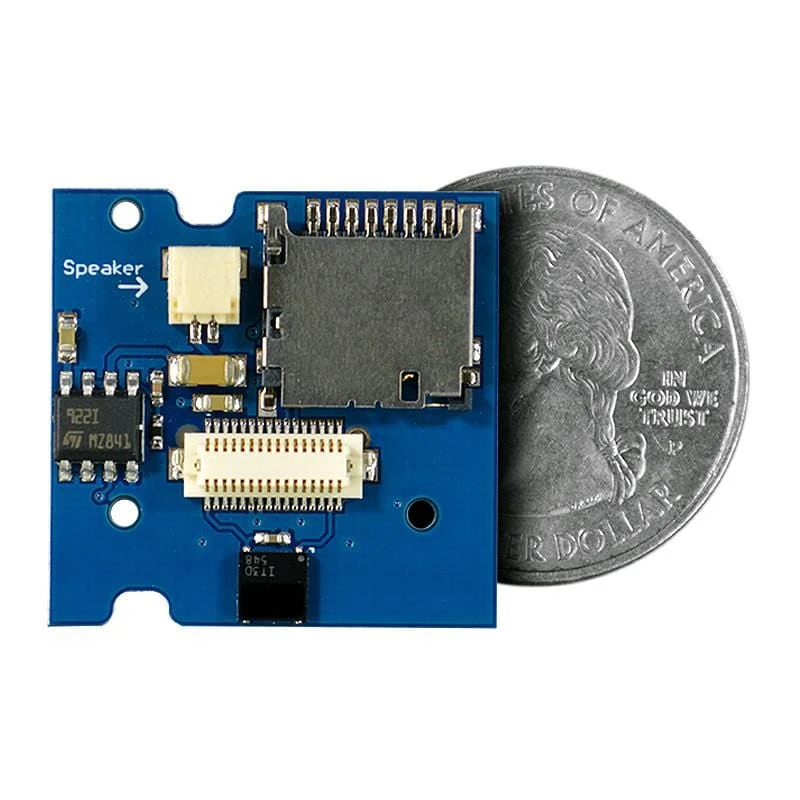

• 25.8mm x 25.0mm (1.02″ x 0.98″) Note: microSD car overhanges the edge by approx 3mm for easy removal
• Maximum height of board: 3.6mm (0.14″)
• Thickness with TinyScreen+ attached: 6.8mm (0.27″)
• Weight (TinyShield only): 1.62 grams (0.06 ounces)

Downloads

• Tutorial

• Arduino SD Card Library

  (built in the Arduino IDE)

• Schematic

• Eagle Files

• CAD 3D and 2D FIles

Notes

• This TinyShield is designed specifically for the

  TinyScreen+

  and may not properly mate with other TinyShields or processor boards.

• This does not include the microSD card (sold separately)
