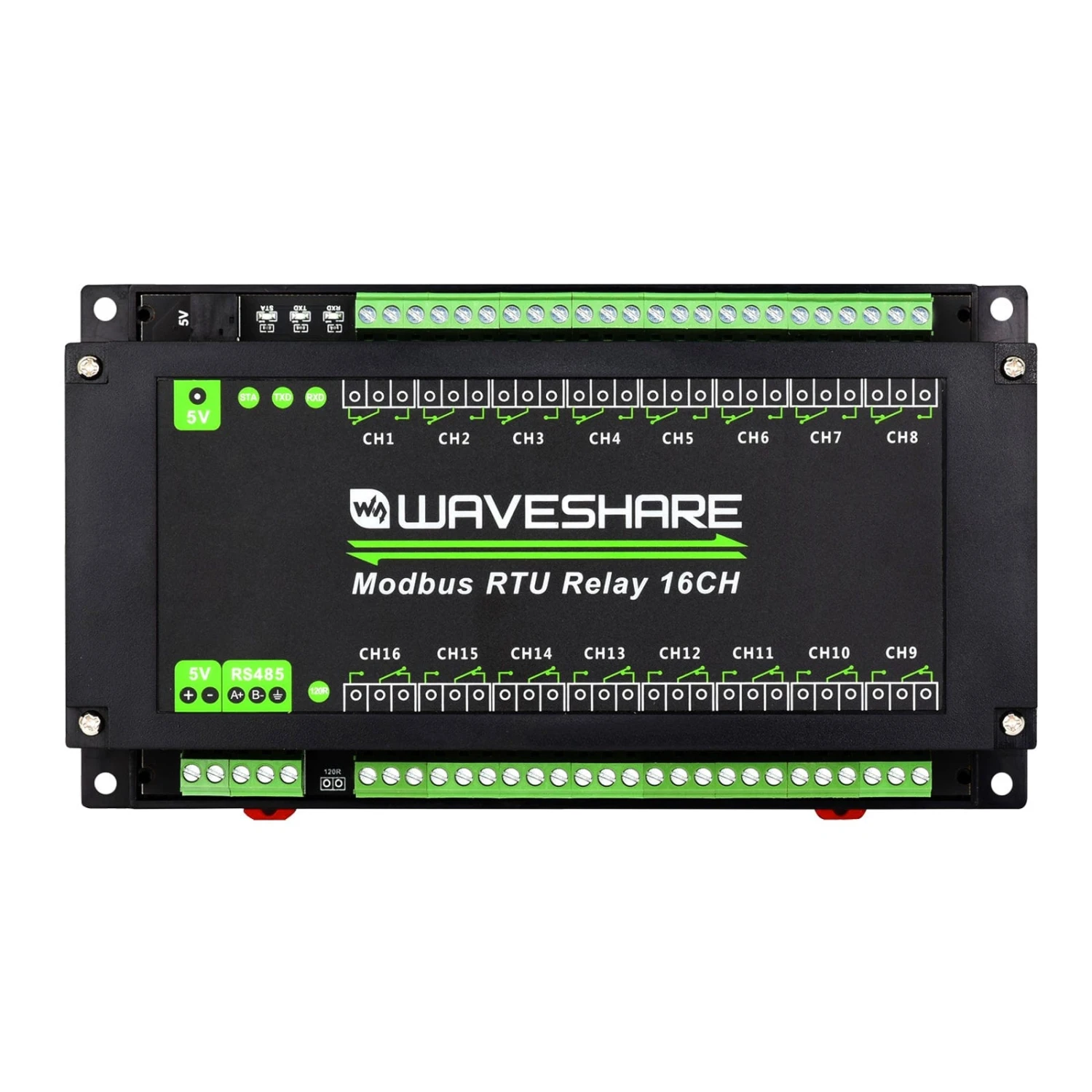

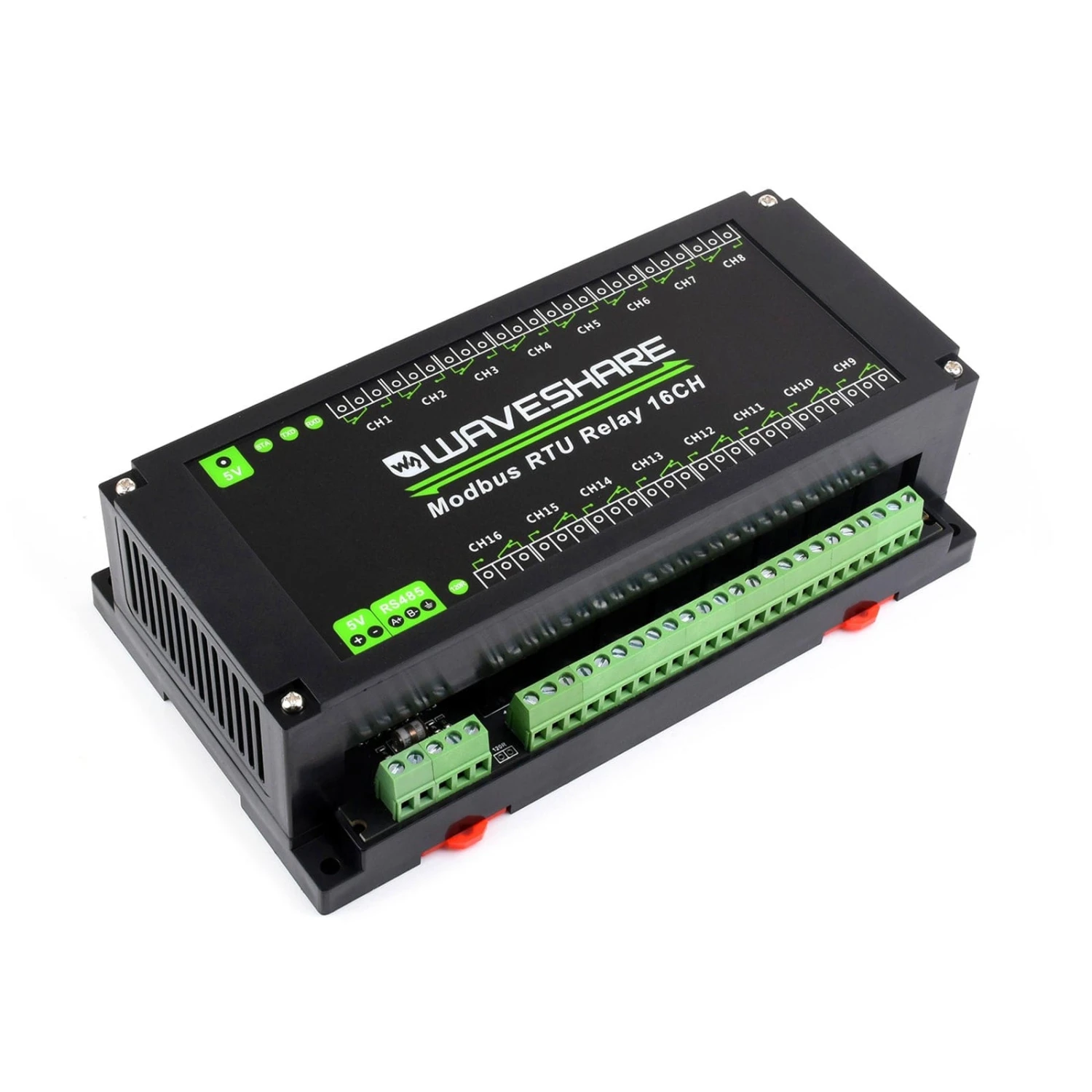

Modbus RTU 16-Channel Relay Module

With 16 individual relay channels, this module provides an extensive capacity to manage many devices or equipment simultaneously. Whether you’re controlling pumps, motors, heaters, or other machinery, the relay module offers a comprehensive solution for orchestrating various processes with precision. Equipped with built-in protection circuits including power supply isolation, ADI magnetical isolation, resettable fuse, and TVS diode, this module safeguards your equipment and data against power surges, electromagnetic interference, and short-circuits.

It supports the widely-used Modbus RTU protocol, allowing you to configure the device address within the range of 1 to 255. Furthermore, this module can be seamlessly integrated into existing setups, as multiple devices can be cascaded on an RS485 bus. This cascading capability simplifies complex installations and optimises communication across your network of devices.

Through the configurable device address and cascading functionality, you have the flexibility to create intricate automation systems tailored to your exact needs. Its extensive relay capacity, advanced protection features, Modbus RTU compatibility, configurable device address, and cascading capability make it an invaluable asset in managing complex processes while ensuring equipment longevity and data integrity.

Note: It is recommended to purchase the

USB TO RS232/485/TTL

or

USB TO RS485

at the same time for easy testing.

Features

• Configurable device address (1~255), multi-devices can be cascaded on RS485 bus
• Features flash-on, and flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightning proof & anti-electrostatic
• Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
• Onboard dedicated relay driver chip, with built-in freewheeling diode protection, the driving ability is stronger and more stable
• Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
• High-quality relay, contact rating: ≤10A 250VAC/30VDC

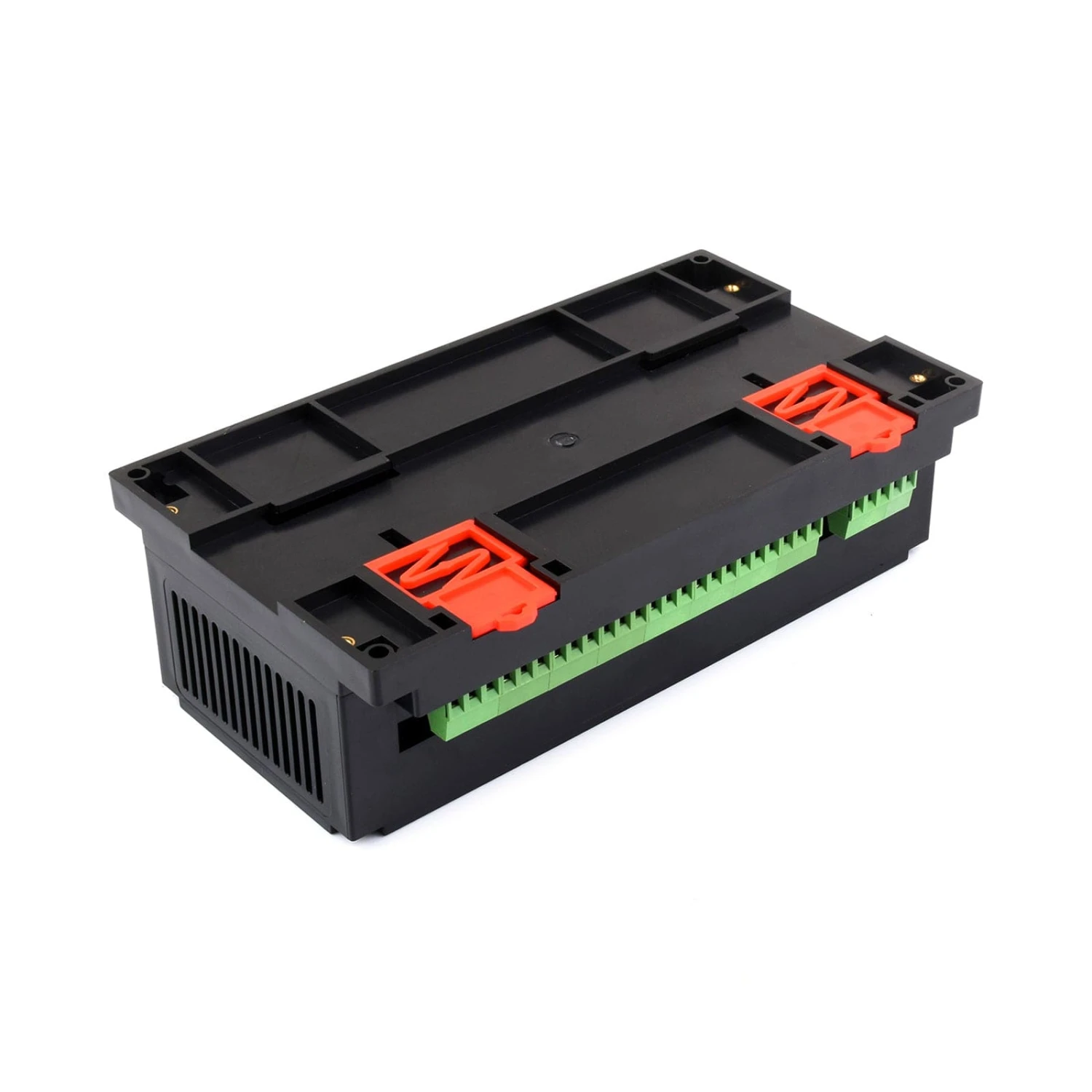

• Rail-mounted ABS case, easy to install, safe to use
• 3 LEDs for indicating the MCU status and signal transceiving status

Connection Example – AC 220V Device & A DC 30V Device

Specifications

Operating Voltage	5V
Communication Interface	RS485
Baudrate	4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default Communication Format	9600, N, 8, 1
Relay Channels	16
Contact Form	1NO 1NC
Communication Protocol	Standard Modbus RTU protocol
RS485 Address	1~255
LED Indicators	STA: MCU indicator, keep flashing when the MCU normally working
	TXD: TX indicator, lights up when sending data
	RXD: RX indicator, lights up when receiving data

Resources

• Product Wiki

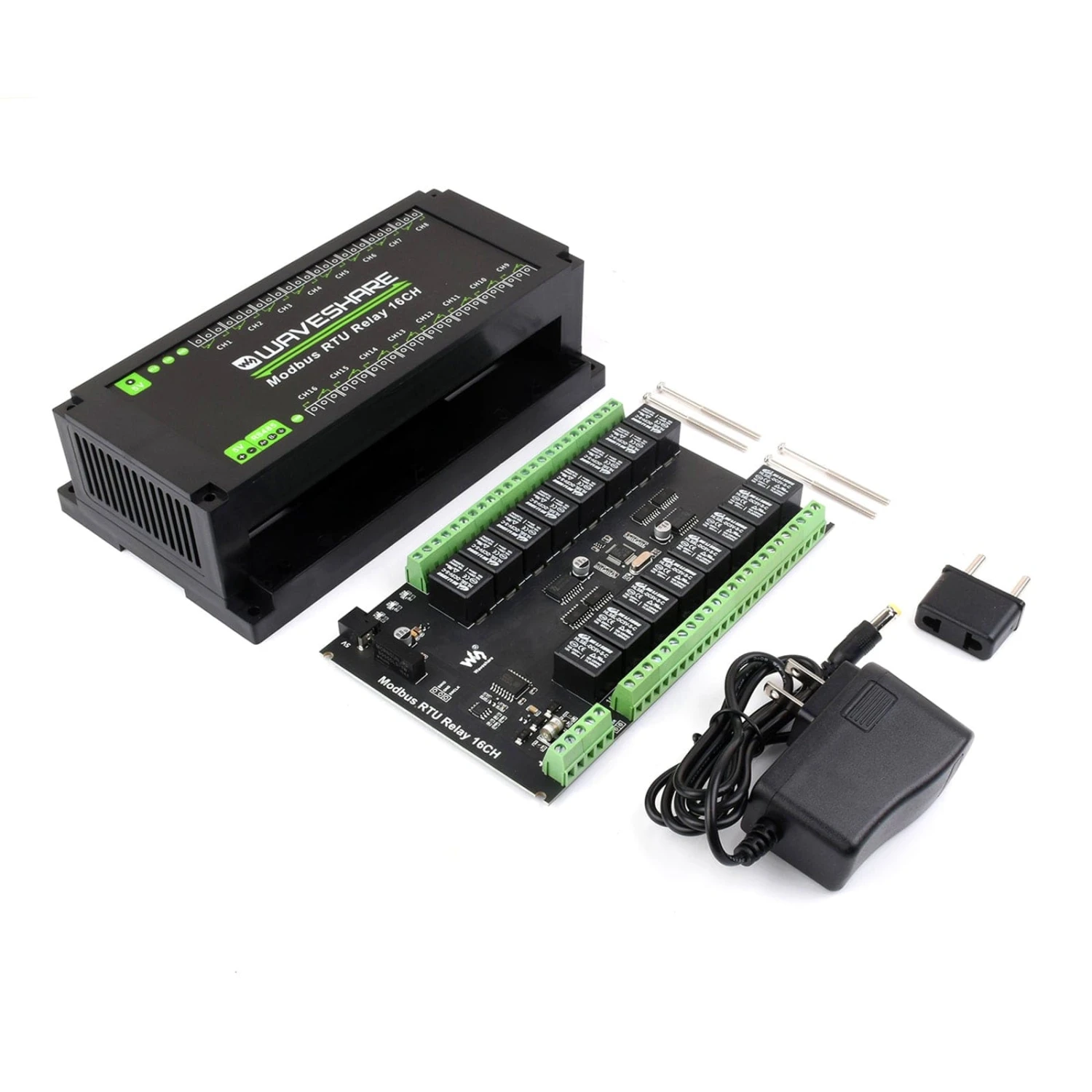

Package Contents

• 1x Modbus RTU Relay 16CH
• 1x US plug 5V 2A Power supply (with EU head adapter)
