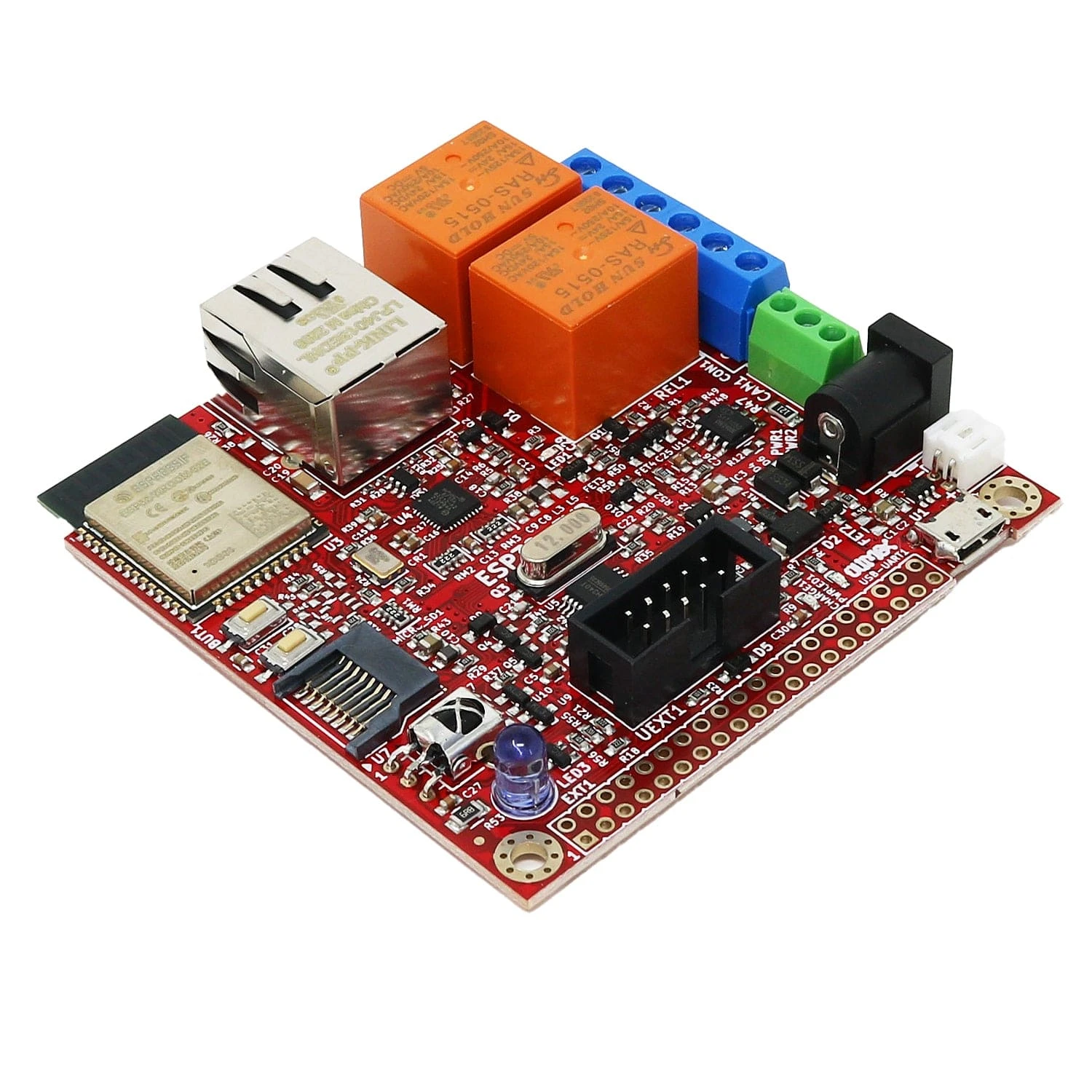

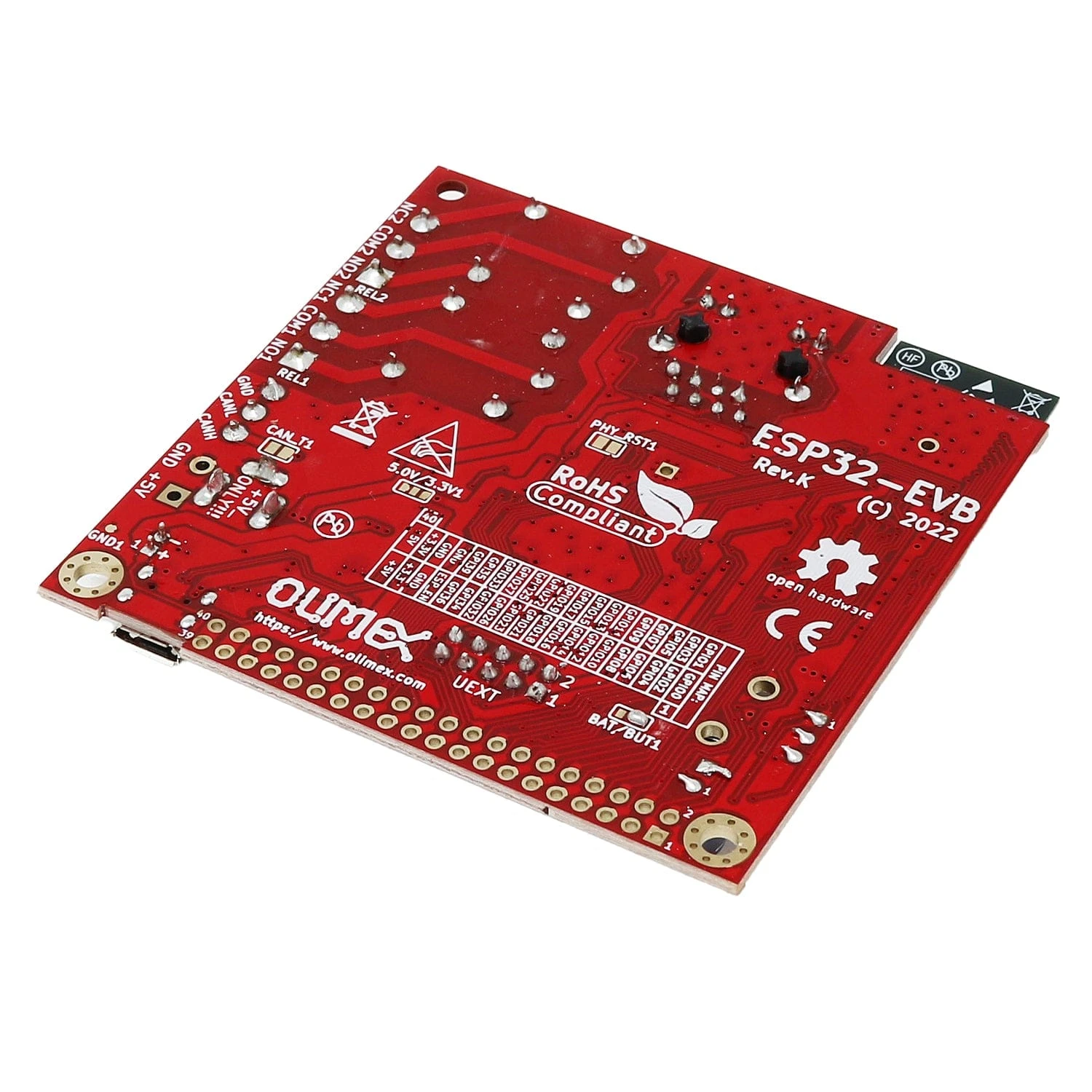

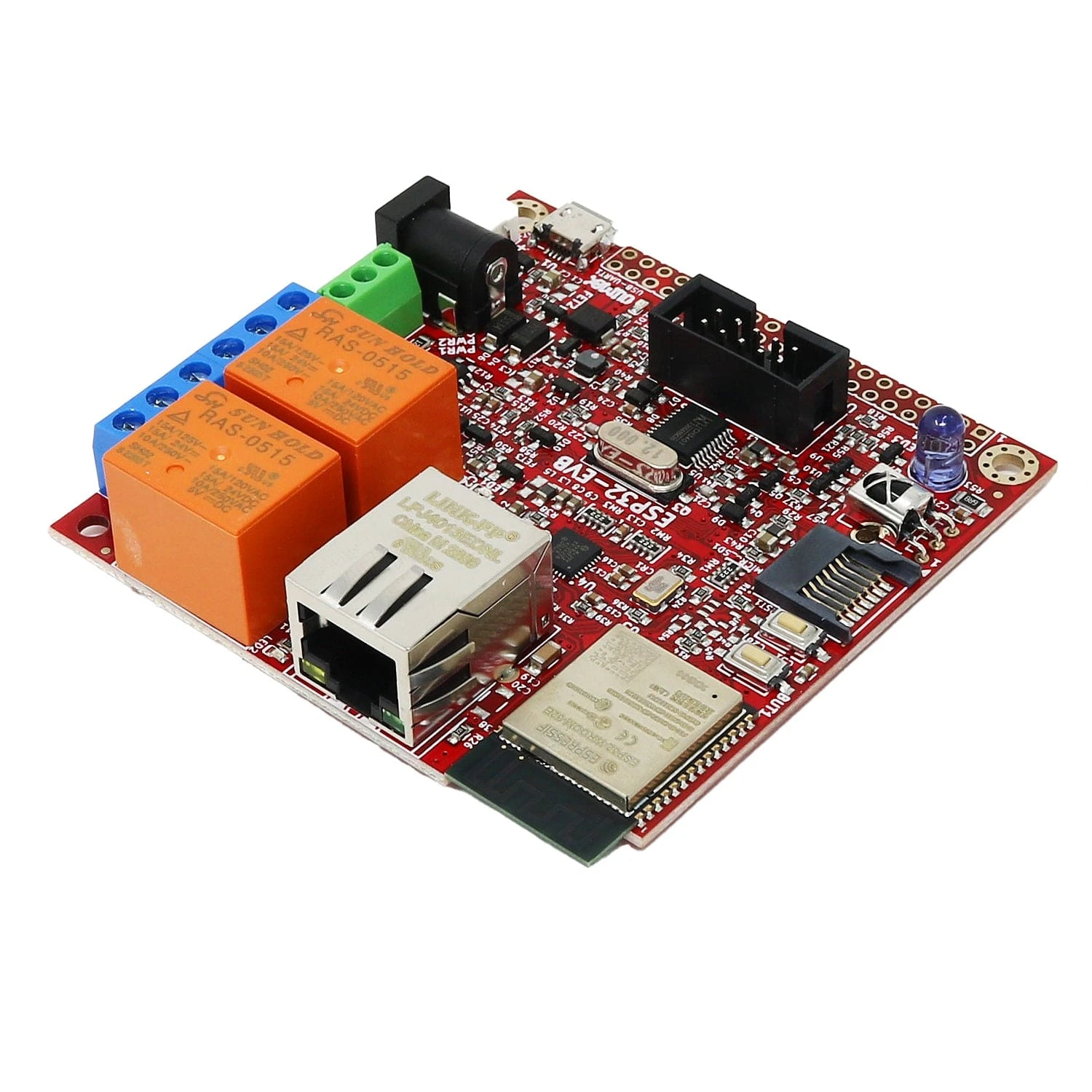

Olimex ESP32-EVB Development Board

This is the ultimate ESP32 IoT board with a wired 100Mb Ethernet Interface, Bluetooth LE, WiFi, Remote control IR and CAN connectivity!

The board can operate with a single

LiPo backup battery

(like a UPS) and has an internal LiPo battery charger (there is no step-up converter though, so relays, CAN and USB power will not work over battery).

The two onboard relays allow you to switch power appliances on and off rated to 10A/250VAC (15A/120VAC 15A/24VDC) with status LEDs for visual feedback.

The board can be powered via a robust barrel jack (5V DC), or via Micro-USB (including programming). A number of

demo software files are available on GitHub

.

Features

• ESP32-WROOM-32E
• Built-in programmer for Arduino and ESP-IDF
• WiFi and BLE connectivity
• Ethernet 100Mb interface

• MicroSD card

  port

• 2 x 10A/250VAC (15A/120VAC 15A/24VDC) relays with connectors and status LEDs
• CAN interface
• IR received and transmitter, up to 5 meters distance
• LiPo charger for stand-alone operation during power breaks with 4 status LEDs
• Power jack for external power supply, 5V DC
• UEXT connector to connect UEXT modules
• Reset and user buttons
• GPIO 40-pin connector with all ESP32 ports
• Dimensions: 75mm x 75mm

Resources

Documents

• Schematic

• ESP32-EVB European Declaration of Conformity

• ESP32-EVB UKCA Declaration of Conformity

Hardware

• GitHub

Software

• ESP-IDF Software Demos

• Works with Arduino for ESP32

• Refer to

  this document

  if there are any issues

USB Drivers

• USB driver for Windows

• USB driver for Linux (for old kernels; pre-3.14.x)

• USB driver for Mac

• USB driver for Android

Package Contents

• 1x ESP32-EVB Development Board
