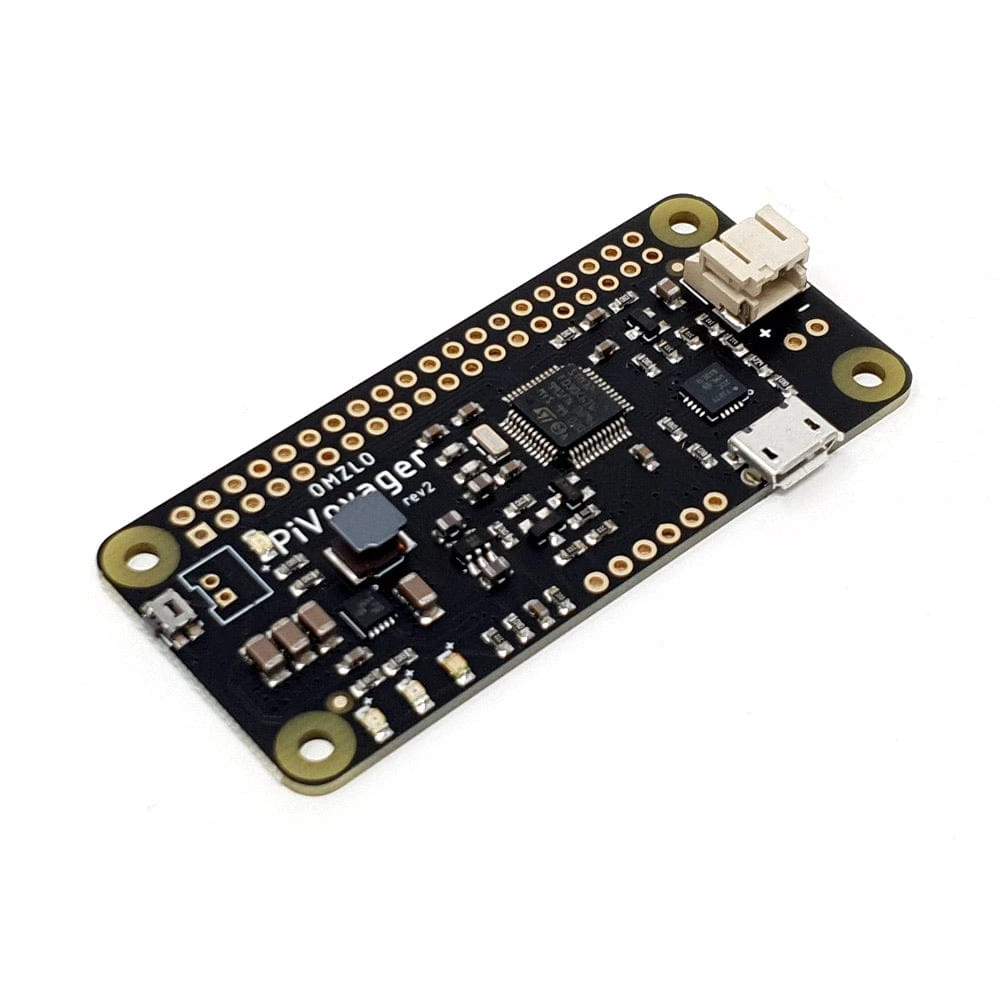

Pi Voyager – Smart UPS And Watchdog For Raspberry Pi

The PiVoyager is an uninterruptible power supply (UPS) for the Raspberry Pi designed to work with standard Li-Ion or

LiPo batteries

, featuring a programmable watchdog, automatic restart, and a real-time calendar.

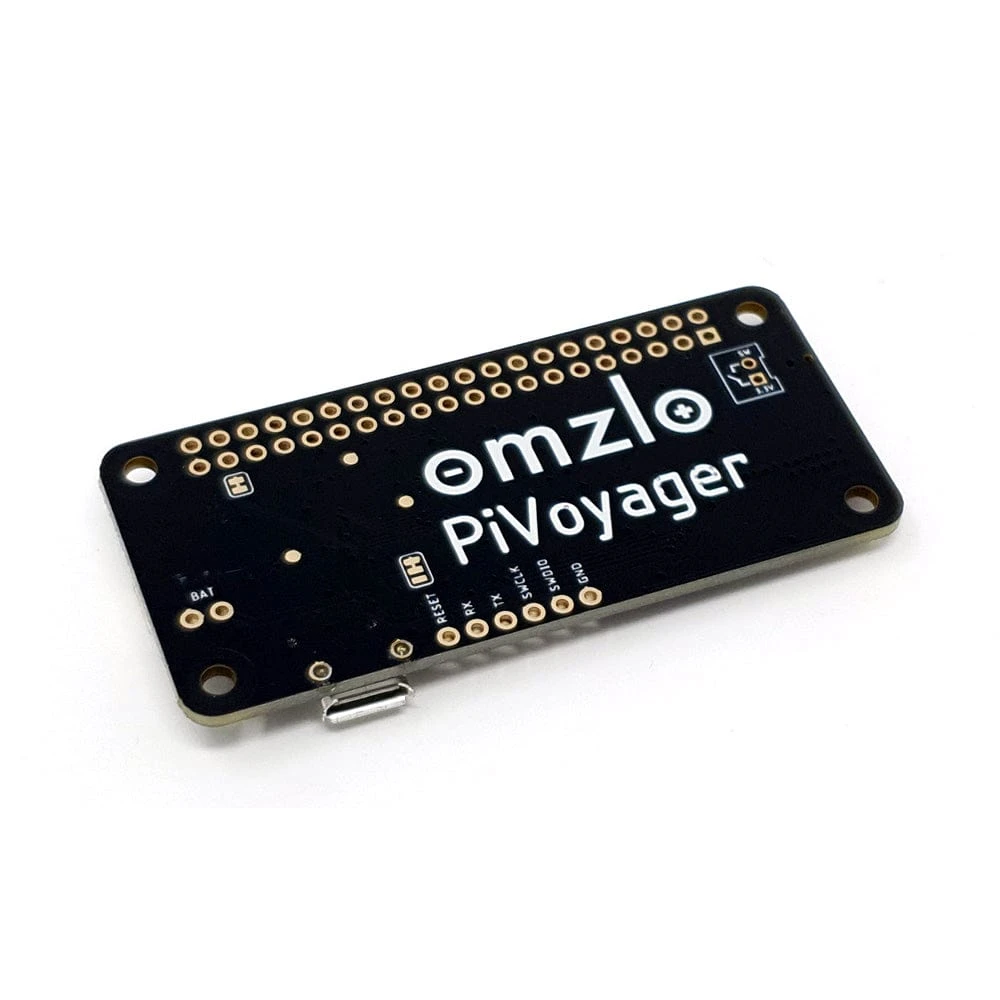

Note: Board PCB may be red or black

Monitoring & Control

Thanks to the provided software the user can fully control and monitor the PiVoyager:

• Monitor power status and battery voltage
• Force the Raspberry Pi to fully shut down after a specified delay
• Act as a watchdog, powering down the Raspberry Pi if it becomes inactive
• Power up the Raspberry Pi at a certain date/time (alarm)
• Power up the Raspberry Pi after a certain delay following a shutdown
• Update the firmware through I2C thanks to a built-in bootloader

Hardware

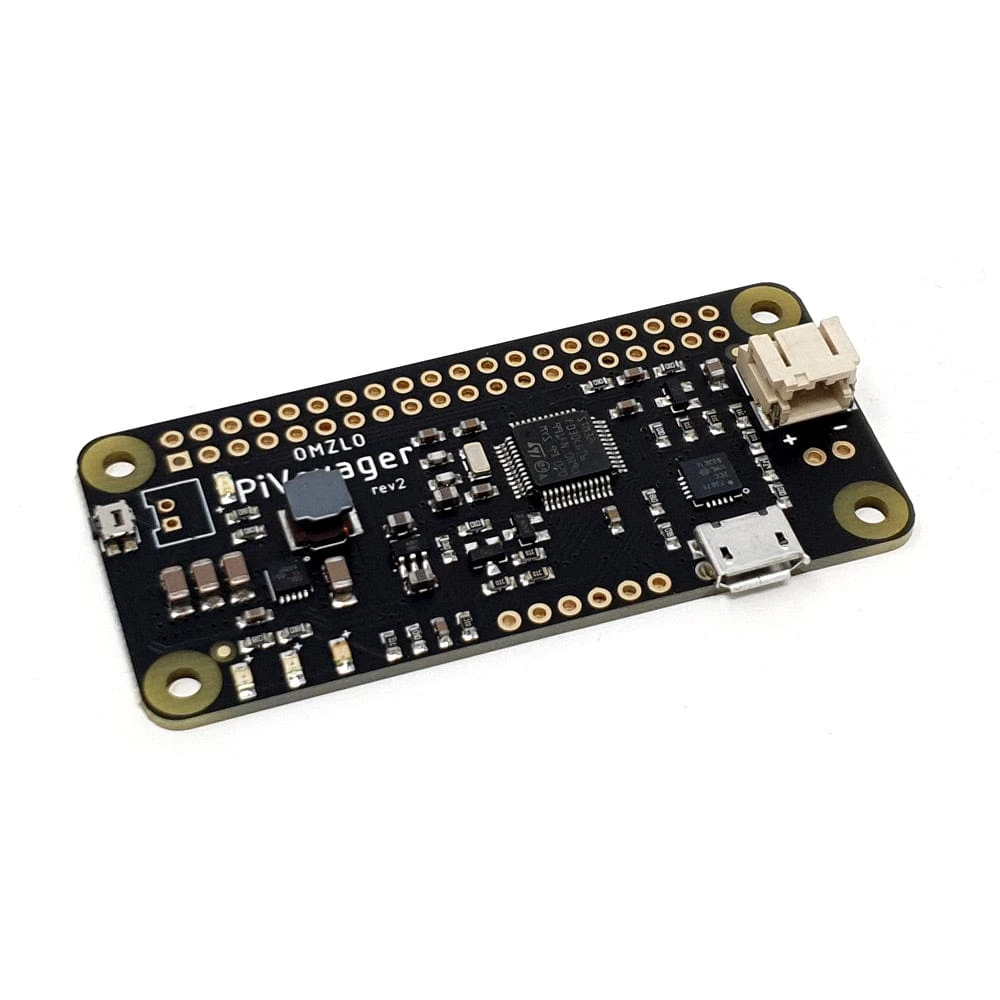

The PiVoyager has four indicator LEDs, 3 at the bottom left and 1 at the top left:

• PG: green, indicates USB power
• CH: yellow, indicates charging status
• ST: red, indicates overall status
• 5V: blue, indicates that the Raspberry Pi is currently powered

The PiVoyager has a small button. Pressing this button for more than 3 seconds will shut down the Raspberry Pi. Once shut down, the Raspberry Pi can be restarted by pressing the same button. It is possible to add a JST PH header on the PiVoyager to connect your own tact switch as an alternative to the one provided on the pHAT.

The PiVoyager does not include battery protection circuity and should be connected to Li-Ion or LiPo batteries with their own protection circuit, using the two-pin JST PH header (2.0mm pitch). An alternative 2.54mm 2-pin header is also provided for battery connection.

Charging

When the PiVoyager is plugged to a USB power source (micro-USB) and a Li-Ion/LiPo battery, it will both power your Raspberry Pi and charge the battery if needed, with a charge current of 1000mA.

If USB power is removed, the PiVoyager automatically switches to the battery and continues to power the Raspberry Pi at 5V (2.1A max), thanks to a boost converter.

RTC

The PiVoyager features a Real-Time Calendar (RTC), which can be configured to store the current date and time. The content of the RTC will be maintained for as long as there is a power source connected, even if the Raspberry Pi is powered down.

Raspberry Pi Compatibility

The PiVoyager is designed as a Pi Zero pHAT, but works on any Raspberry-Pi with a 40 pin header, including the Raspberry Pi 3B+ and the Raspberry Pi 4.

Note: The power connection on the Pi Voyager is micro-USB and will not work with the Raspberry Pi 4 USB-C power supply.

Battery Compatibility

The PiVoyager is targeted at batteries with a nominal voltage of 3.7V, a charging voltage of 4.2V and supporting a charge current of 1000mA.

The battery is considered as LOW if the voltage falls below 3.1V and will remain in LOW state until the voltage rises above 3.3V. At startup, the PiVoyager will refuse to power the Raspberry Pi when in LOW state and will wait for the battery to charge sufficiently first.

In general, in order to work reliably with a Raspberry Pi, the PiVoyager should always be connected to a battery, even if it’s not charged.

What’s Included

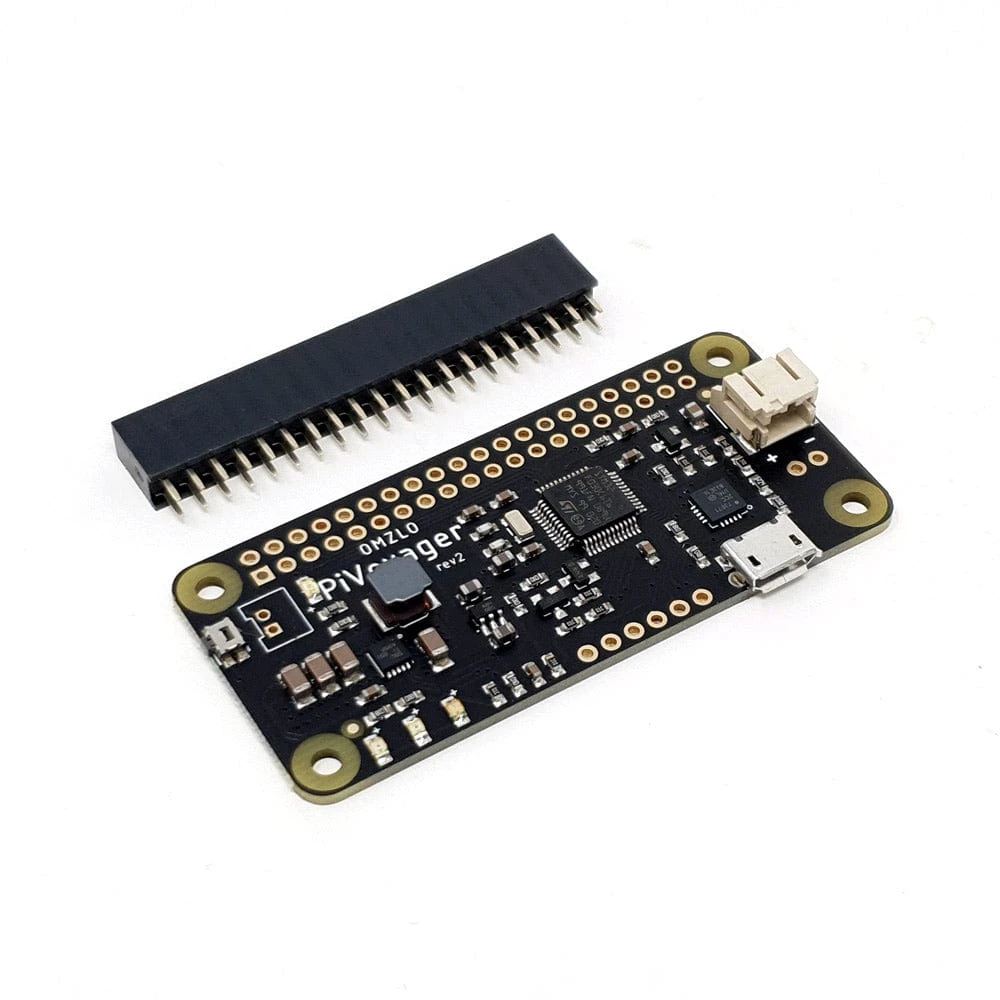

The PiVoyager comes with an unsoldered female 2×20 GPIO header with short leads. No battery or Raspberry Pi is included.

Documentation & Instructions

For more details, including software download instructions, see the full documentation here:

https://www.omzlo.com/articles/pivoyager-installation-and-tutorial
