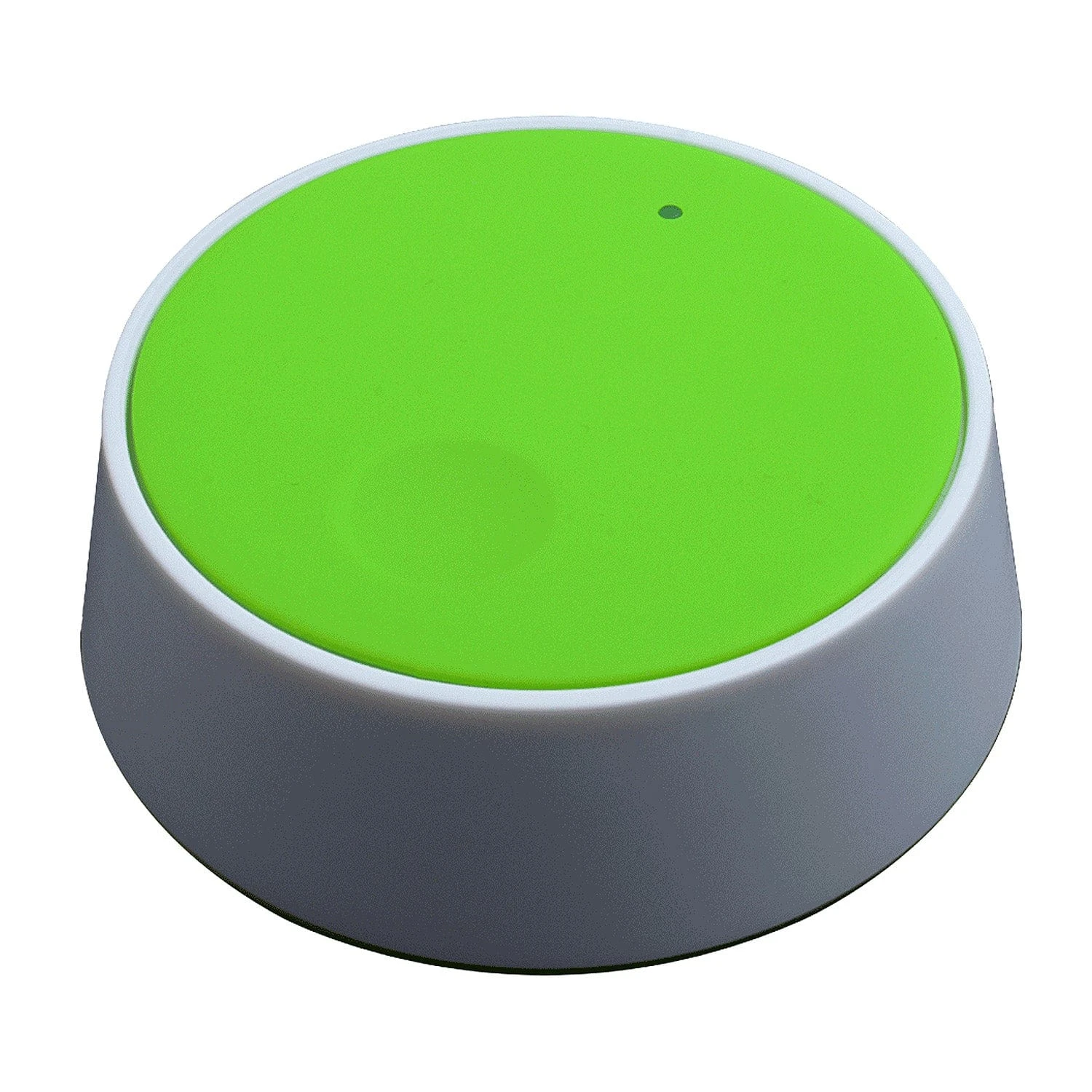

ReButton

The Seeed ReButton is a developer device for simple trigger actions, supporting multiple clicks and long presses. We provide sample firmware that triggers Azure IoT Central or Azure IoT Hub. Both firmware and hardware are open sources so you can develop your own IoT button with Arduino IDE.

Features

• Single click
• Double click
• Triple click
• Long press (>3 sec.)
• Super long press (>6sec.)

Specifications

• MCU module MXCHIP EMW3166
• Input: 1x Push button
• Output: 1x RGB led

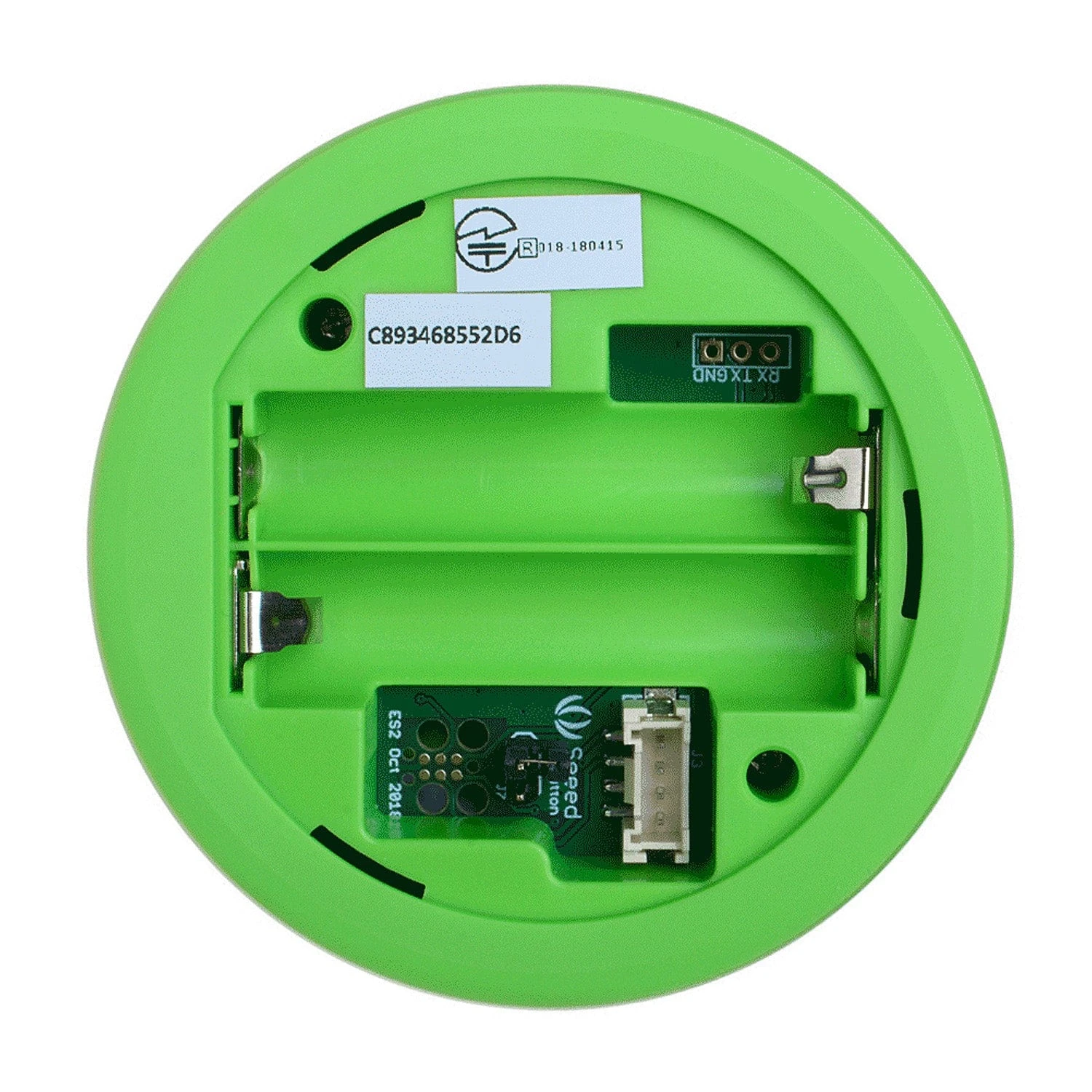

• Extension: 1x I2C Grove connector (3.3V I/O)
• Extras: 1x Jumper switch
  • 1x SWD pads
  • 1x UART for debugging
• Power supply: 2x AAA Alkaline batteries (LR03)
• Internal supply voltage: 3.3V

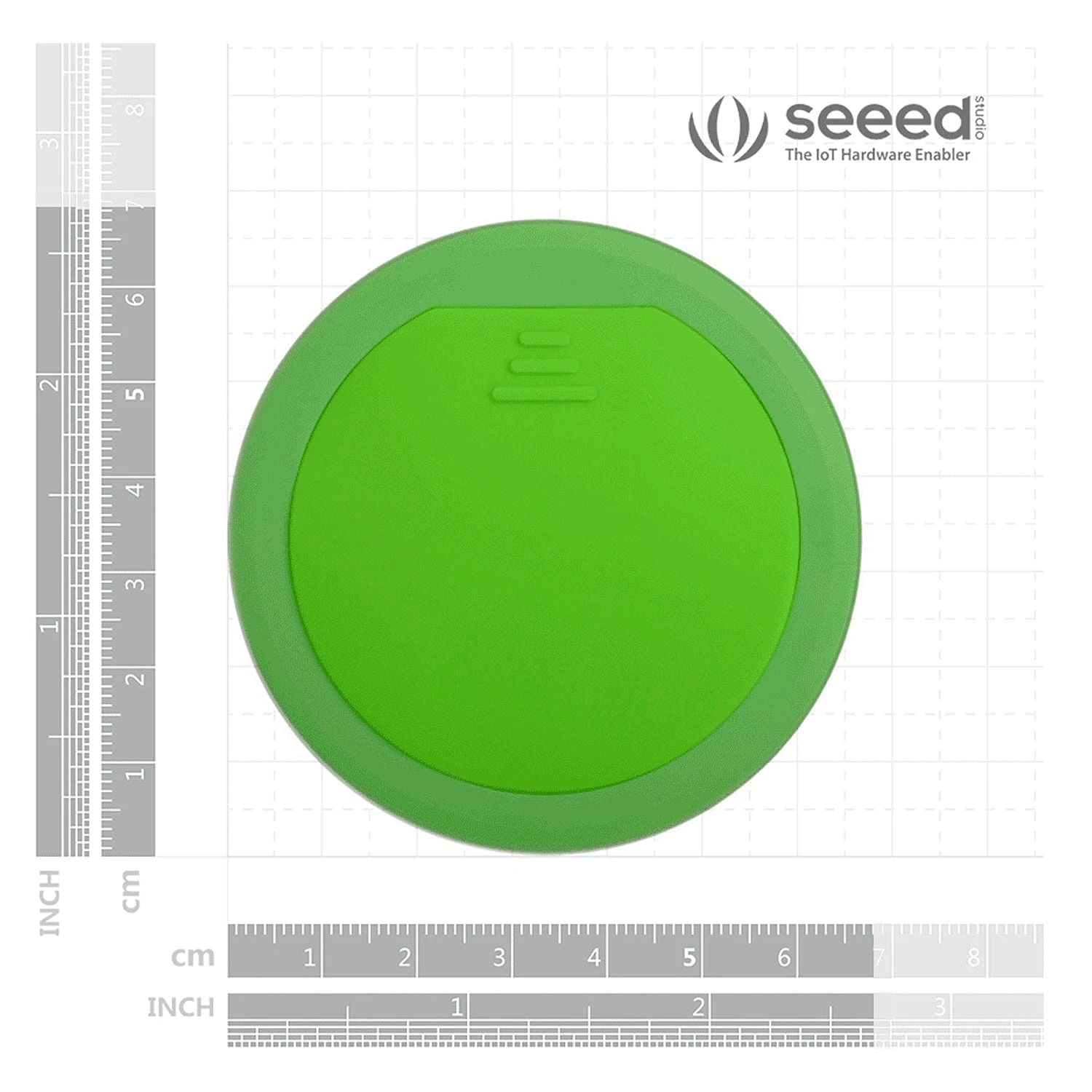

• Dimension: 70mm x 70mm x 25mm
• Product number: Seeed 114991735

Resources

• Technical Documents
