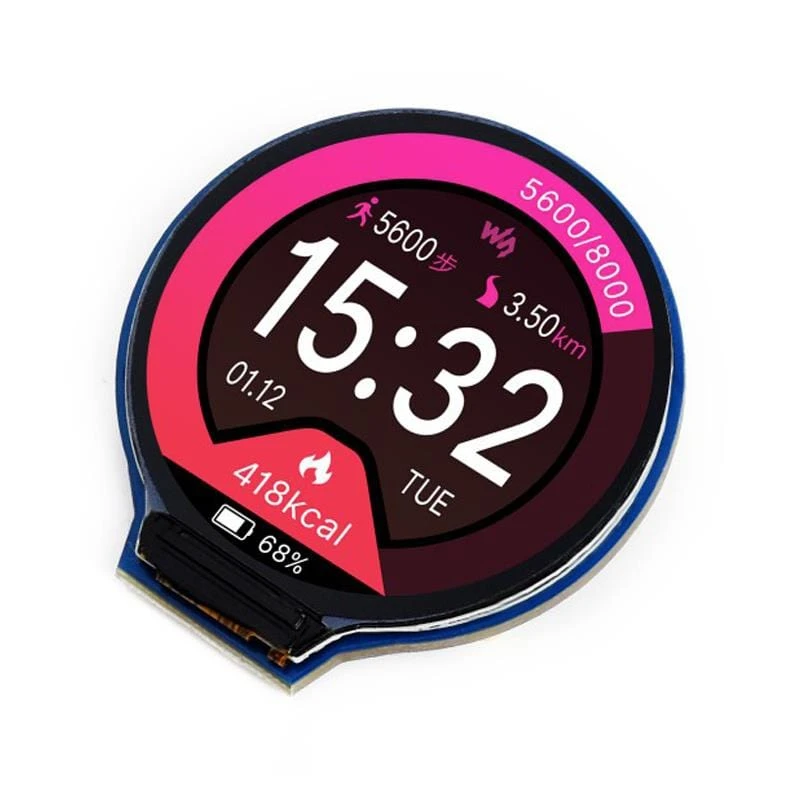

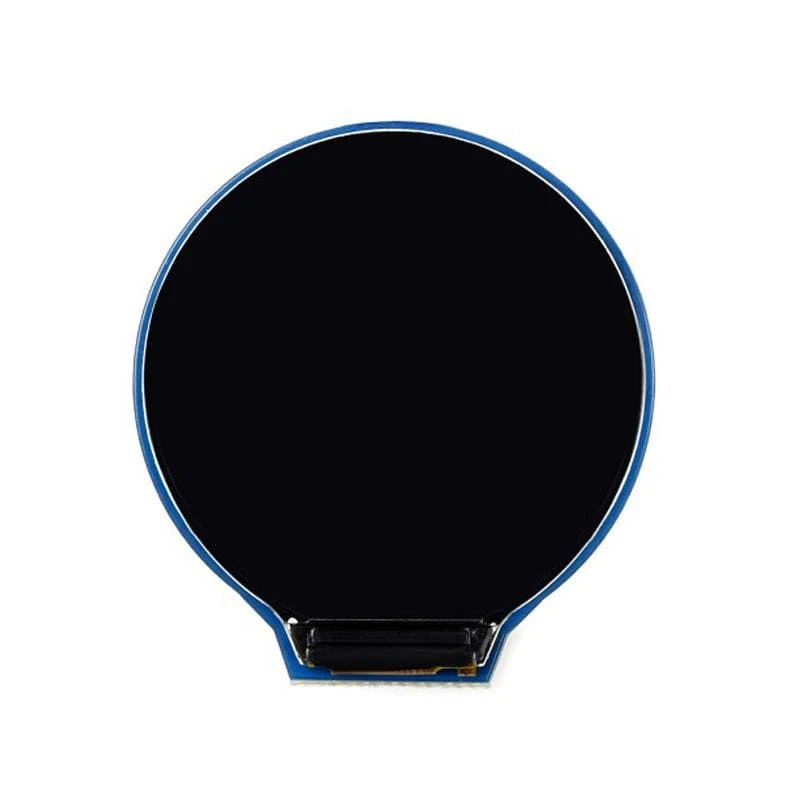

Round 1.28″ LCD Display Module (240×240 IPS 65K RGB)

Don’t be a square! Break the mould and use one of the cool round LCD displays on your next project!

This super-cool round display features a 240×240 resolution with 65K RGB colours for a clear and colourful interface. The IPS LCD uses an SPI interface meaning it can be used with a wide range of development boards and microcontrollers such as the

Raspberry Pi

,

Arduino

and more.

Online development resources are available, which include wiring guidance and example code.

We also offer a version of this display with a

touch interface

!

Specifications

• Operating Voltage: 3.3V/5V
• Communication Interface: 4-wire SPI
• Display Panel: IPS
• Driver: GC9A01
• Resolution: 240×240 pixels
• Display Size: Φ32.4mm
• Pixel Size: 0.135 × 0.135mm
• Dimensions: 40.4 × 37.5mm Φ37.5mm

Package Contents

• 1x 1.28″ LCD Module
• 1x PH2.0 8-pin 20cm cable

Resources

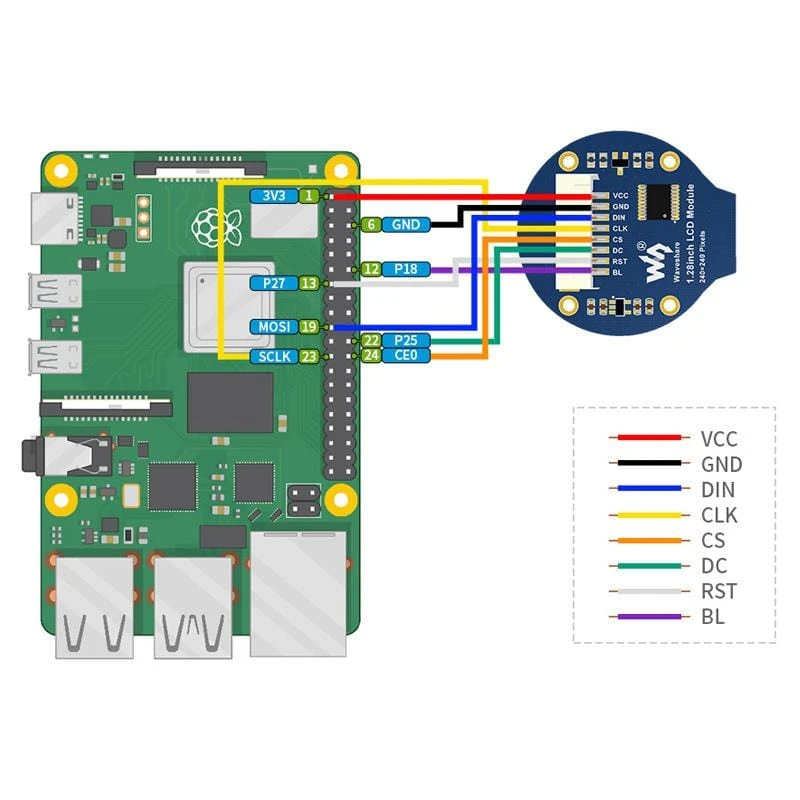

• Raspberry Pi Wiring Guide

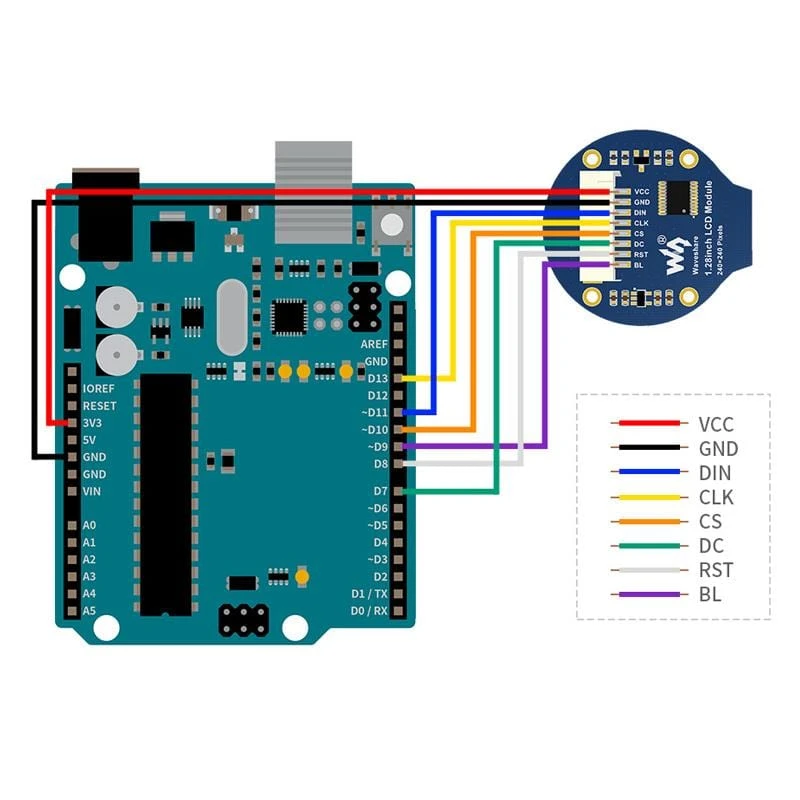

• Arduino Wiring Guide

• Product Wiki including code examples and wiring guides

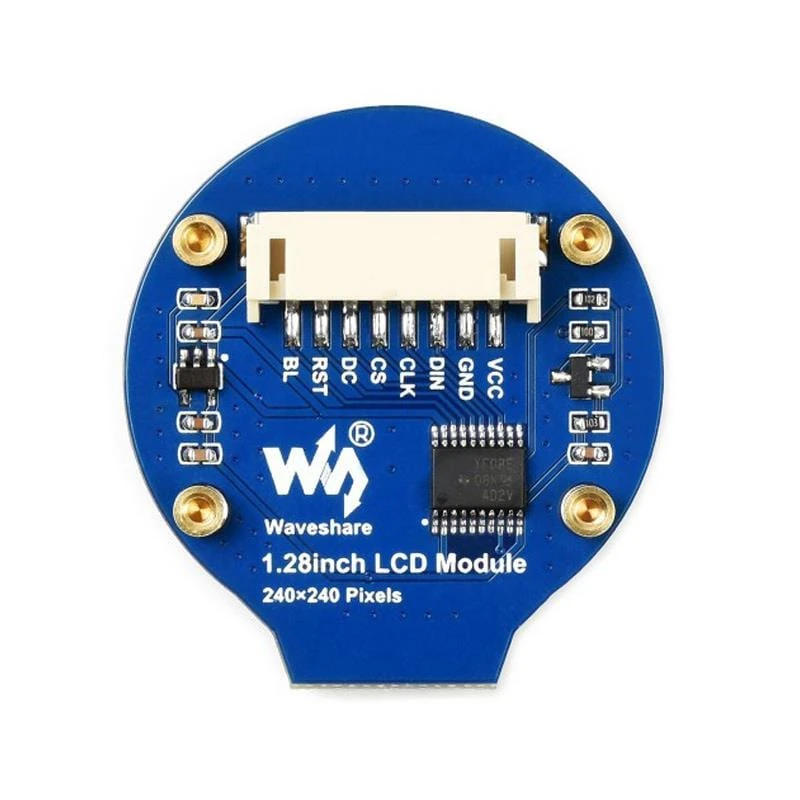

Pinout

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight
