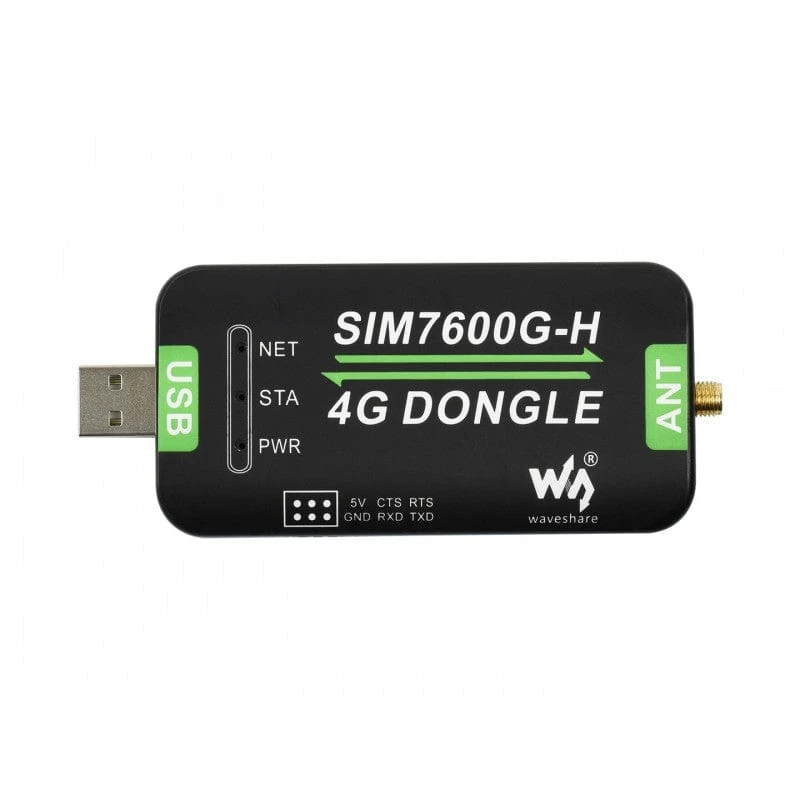

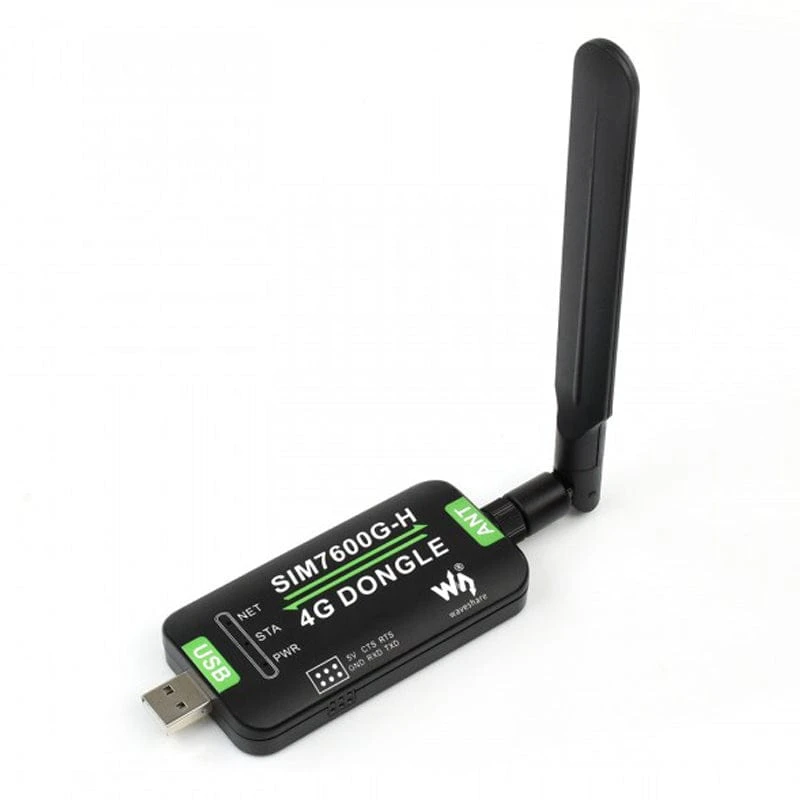

SIM7600G-H 4G USB Dongle

This is a global band industrial grade USB 4G dongle featuring the SIMcom SIM7600G-H, which supports up to 150Mbps downlink rate and 50Mbps uplink rate (depending on the network provider and conditions/signal) and is compatible with multiple operating systems including Linux, Windows and Android.

By simply connecting the dongle to a

Raspberry Pi

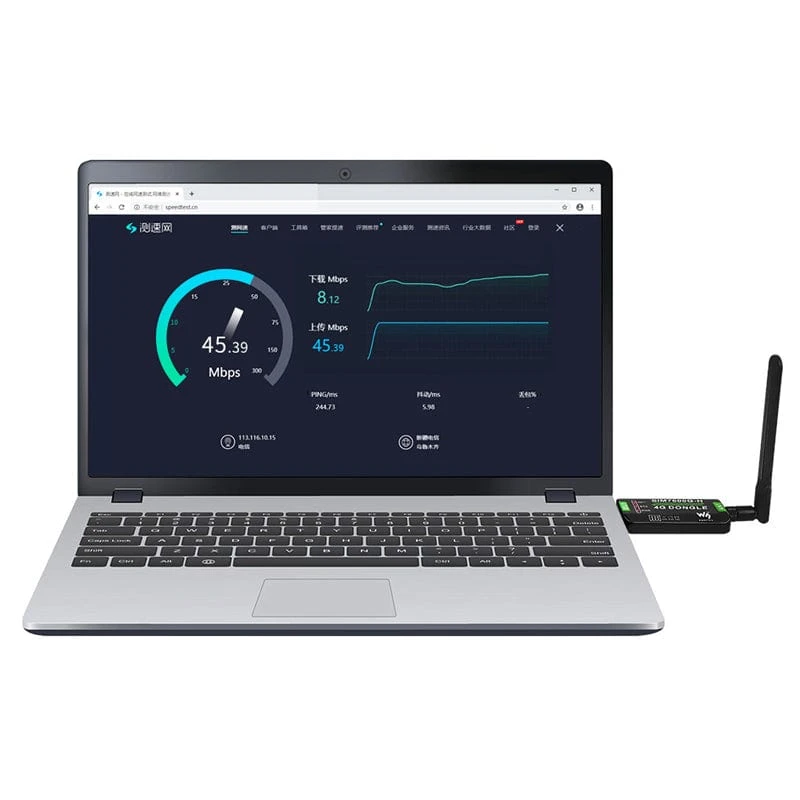

, laptop, PC, drone, industrial computer or other IoT host device, it is easy to use a 4G network connection on the go. The board accepts a 1.8V/3V Nano sim card and supports a wide range of network bands (see specification below for a full list of supported bands).

The dongle supports 4G, 3G and 2G network connections and includes onboard GNSS functionality supporting GPS, Beidou, Glonass, LBS base station positioning (for GNSS, a

GPS antenna

(and

uFL to SMA cable

) is required but NOT included).

The dongle comes complete with an LTE antenna, USB extension cable, jumper wires for manual connections and a screwdriver + screw set.

Features

• Supports 2G/3G/4G network connection, global band
• Drivers provided for operating systems including Windows/Linux/Android
• Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
• Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
• Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
• Onboard GNSS, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
• Nano SIM card slot, supports 1.8V / 3V nano SIM cards
• 3x LED indicators, easy to monitor the working status
• Portable customized enclosure
• Baudrate support: 300bps ~ 4Mbps (115200bps by default)
• Baudrate auto-negotiation: 9600bps ~ 115200bps

• Online development resources

Specifications

Band
LTE Cat-4 / LTE Cat-1	LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66
3G	UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G	GSM/GPRS/EDGE: 850/900/1800/1900MHz
GNSS	GPS, BeiDou, Glonass, LBS base station
Data Rate
LTE Cat-4	150Mbps(DL) / 50Mbps(UL)
3G (HSPA+)	42Mbps(DL) / 5.76Mbps(UL)
2G (EDGE)	236.8Kbps(DL) / 236.8Kbps(UL)
2G (GPRS)	85.6Kbps(DL) / 85.6Kbps(UL)
Software Features
Operating system	Windows/Linux/Android
Network protocol	TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Dial-up protocol	NDIS/RNDIS/PPP
SMS	Supports MT, MO, CB, Text, PDU

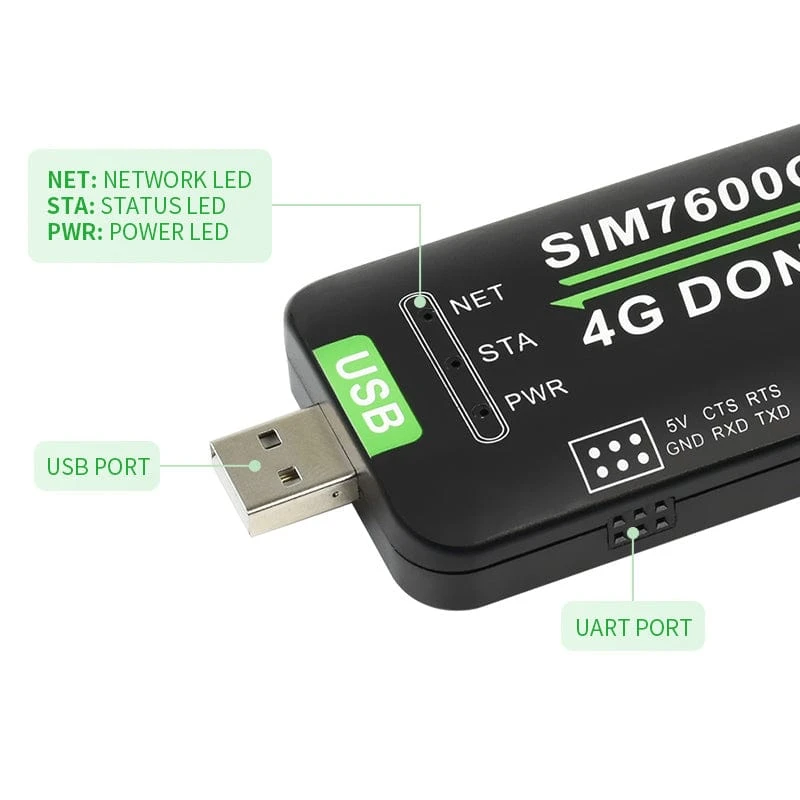

Hardware Description
Communication interface	USB / UART
UART baud rate	300bps ~ 4Mbps (115200bps by default)
Indicator	NET：network indicator
	STA：status indicator
	PWR：power indicator
SIM card support	Nano SIM card (1.8V / 3V)
Antenna connector	LTE
Power supply	5V
Logic level	3.3V

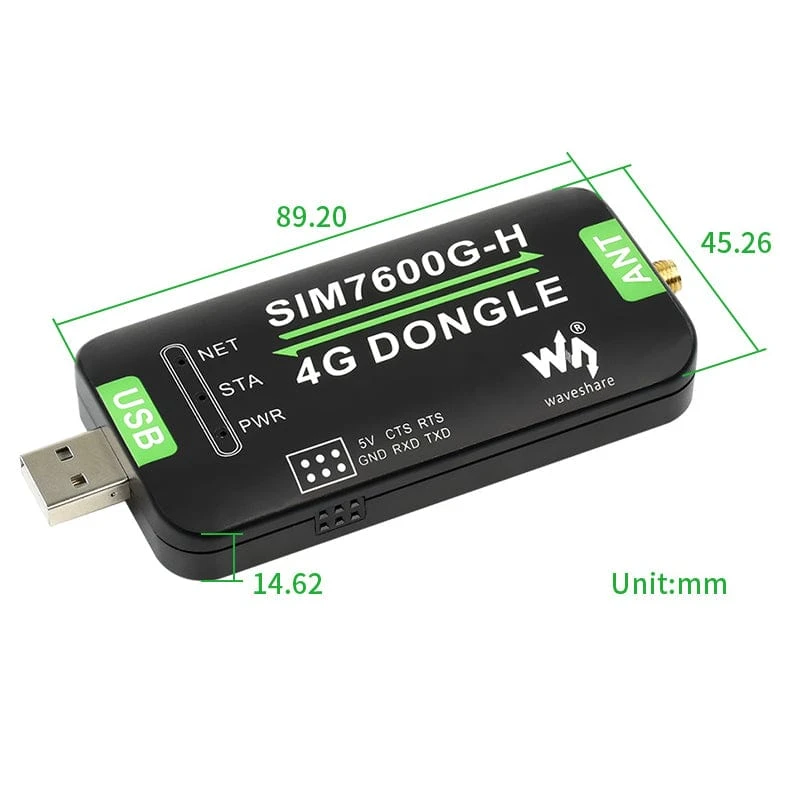

Outline dimensions	89.20 × 45.26 × 14.62mm

Resources

• Product Wiki

Package Contents

• 1x SIM7600G-H 4G Dongle

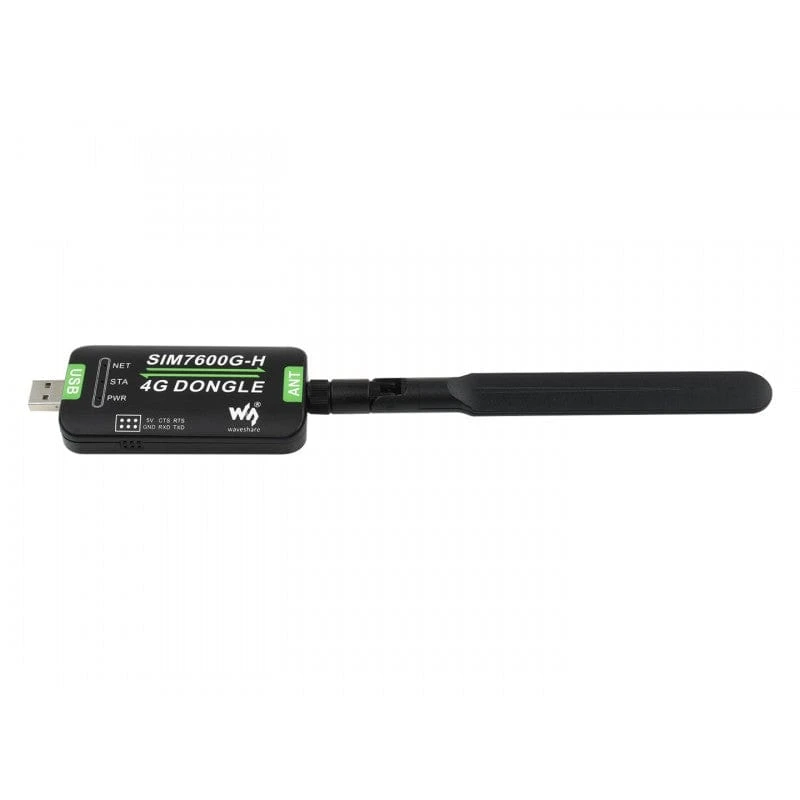

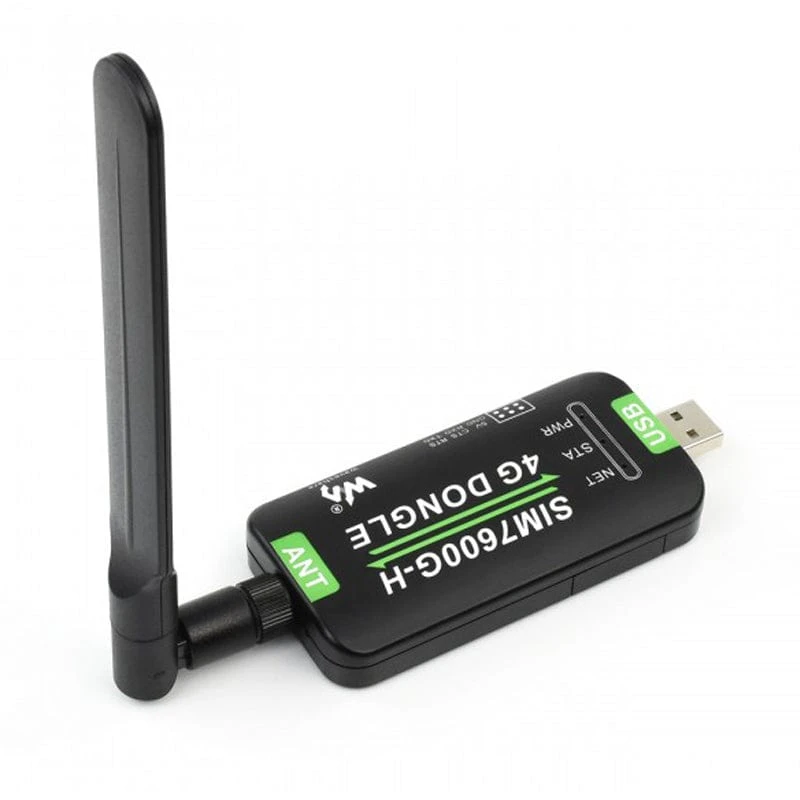

• 1x LTE Antenna (not GPS/GNSS)
• 1x USB extension cable
• 1x 6-pin jumper wire
• 1x Screws tool kit

GNSS/GPS antenna not included
