SparkFun Micro OLED Breakout (Qwiic)

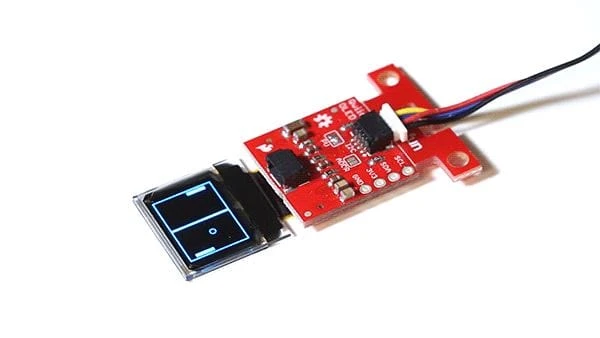

The SparkFun Qwiic Micro OLED Breakout is a Qwiic-enabled version of our popular Micro OLED display! The small monochrome, blue-on-black OLED screen presents incredibly clear images for your viewing pleasure. It’s “micro,” but it still packs a punch — the OLED display is crisp, and you can fit a deceivingly large amount of graphics on there. This breakout is perfect for adding graphics to your next project and displaying diagnostic information without resorting to a serial output, all with the ease of use of our own Qwiic Connect System!

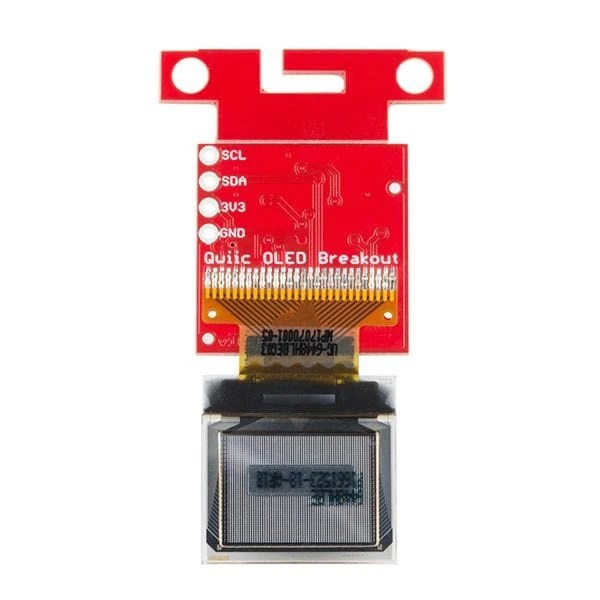

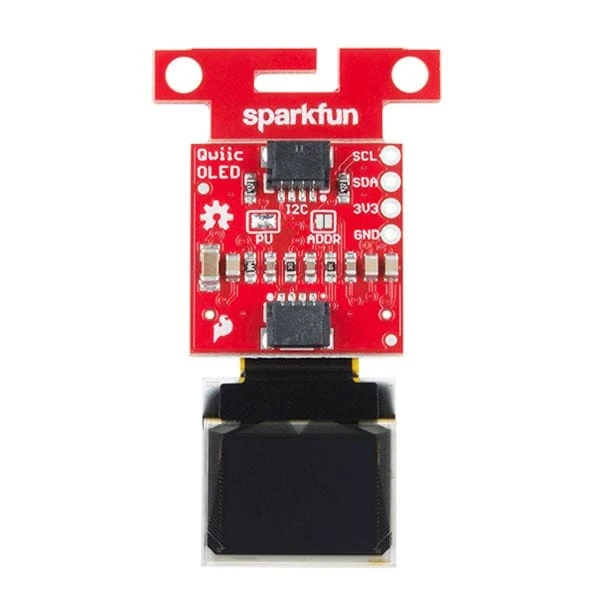

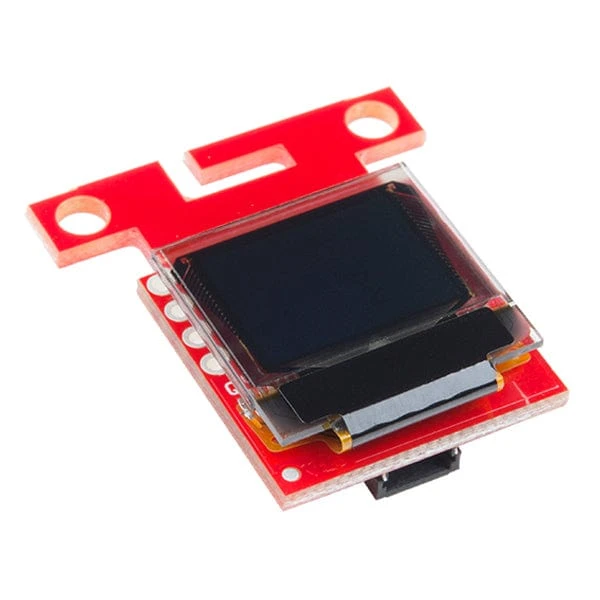

This version of the Micro OLED Breakout is exactly the size of its non-Qwiic sibling, featuring a screen that is 64 pixels wide and 48 pixels tall and measuring 0.66″ across. But it has also been equipped with two Qwiic connectors, making it ideal for I²C operations. We’ve also added two mounting holes and a convenient Qwiic cable holder incorporated into a detachable tab on the board that can be easily removed thanks to a v-scored edge. We’ve even made sure to include an I²C pull-up jumper and ADDR jumper on the back of the board, so if you have your own I²C pull-ups or need to change the I²C address of the board, you have options!

NOTE: The I²C address of the Micro OLED is 0x3D and is jumper selectable to 0x3C. A multiplexer/Mux is required to communicate to multiple Micro OLED sensors on a single bus. If you need to use more than one Micro OLED sensor consider using the

Qwiic Mux Breakout

.

Get Started with the Sparkfun Qwiic Micro OLED Breakout guide

Features

• Qwiic-Connector Enabled
• Operating Voltage: 3.3V
• Operating Current: 10mA (20mA max)
• Screen Size: 64×48 pixels (0.66″ Across)
• Monochrome Blue-on-Black
• I²C Interface

Resources

• Schematic

• Eagle Files

• Qwiic Info Page

• Hookup Guide

• Datahseet

  (SSD1306)

• GitHub
