SparkFun Qwiic Quad Solid State Relay Kit

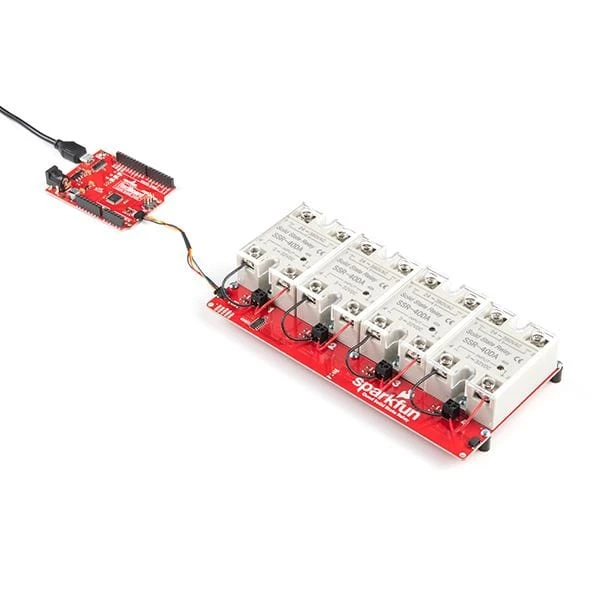

The SparkFun Qwiic Quad Solid State Relay Kit takes one of our favourite solid-state relays and lets you place up to four of them on a single PCB to control all of them via I²C from your desired microcontroller.

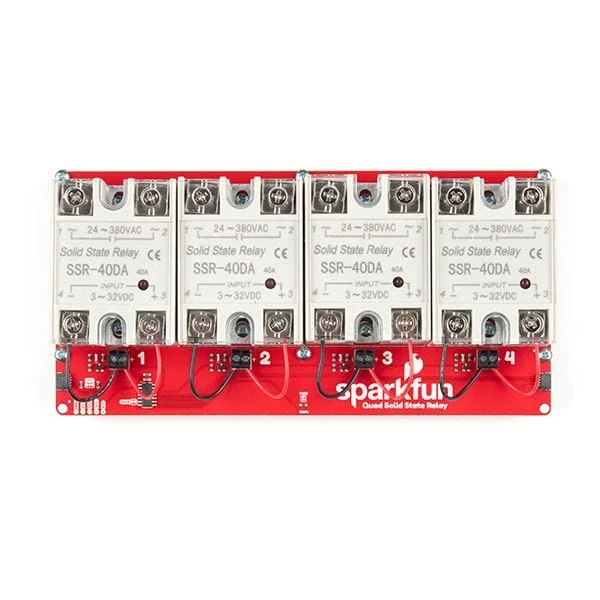

Each relay is rated to 40A @ 28-380 VAC so with all four onboard you can control some serious power all from the easy-to-use Qwiic Connect System. The kit requires no soldering but there is some minor assembly required to attach the relays to the board and to connect your AC load.

The ATTiny84 on the board comes pre-programmed to accept various commands to toggle all four relays. The I²C address of the ATTiny84 is software configurable so so if you had the desire and power, you could daisy chain over 100 Qwiic Quad Relays (but please be aware that toggling lots of relays on a 3.3V bus can cause voltage spikes so an external power supply will be required)! In addition, the address jumper can be opened to switch the I²C address from 0x08 (Default) to 0x09 (Alternate).

Messing with such high voltage is dangerous! This is a power accessory intended for users who are experienced around, and knowledgeable about, high AC voltage. Refer to the

relay datasheet

for recommended heat sink dimensions.

Note: The black standoffs and 4-40 screws used to secure them shown in some of the photos are NOT included with the kit.

Get Started with the Sparkfun Qwiic Quad Solid State Relay Kit Guide

Package Contents

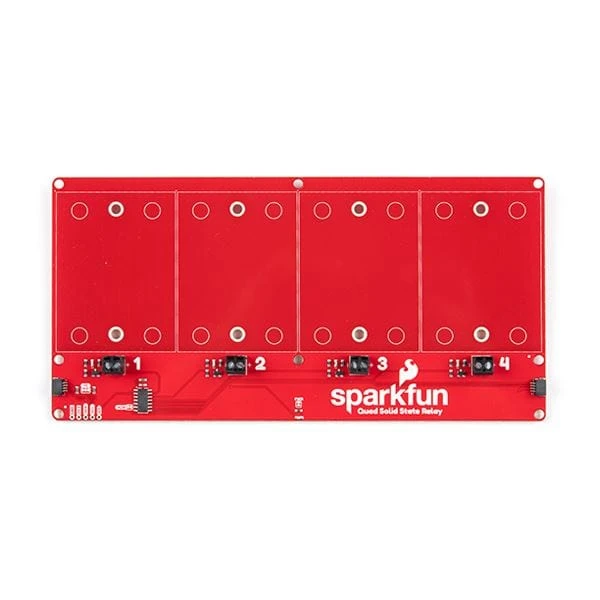

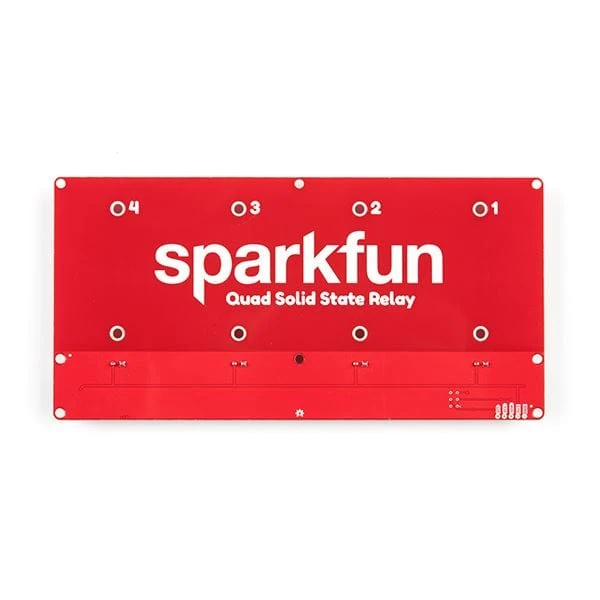

• 1x Qwiic Quad Solid State PCB

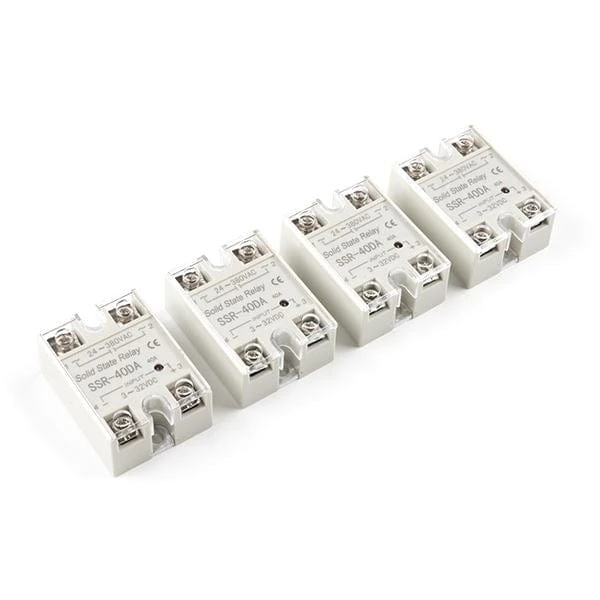

• 4x Solid State Relay – 40A (3-32V DC Input)
• 8x 4-40 Hex Nut

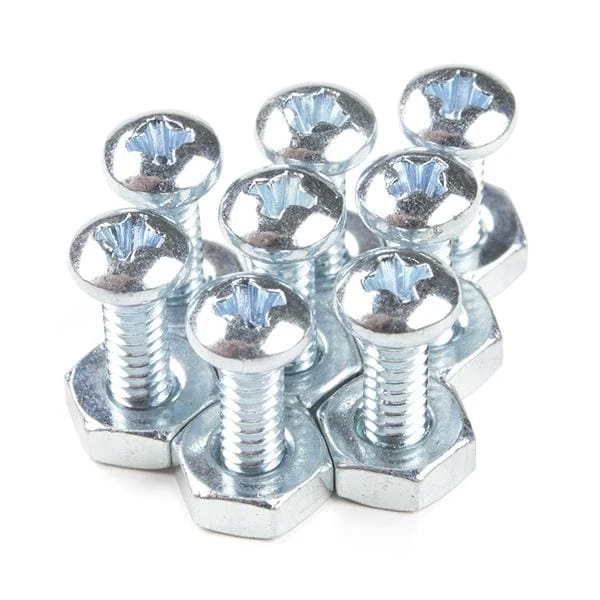

• 8x 3/8in. Phillips Machine Screw – 4-40 Thread
• 1x Pre-stripped Wires 2″ – 24AWG – 8 pack

Features

• Operating Voltage: 2.5-3.6V (3.3V recommended)
• I²C Address: 0x08 (Default), 0x09 (Alternate via jumper)
• Max Current (Through Relay): 40A (24-380VAC)
• Zero Cross Trigger
• Normally Open Circuit Only

Resources

• Schematic

• Eagle Files

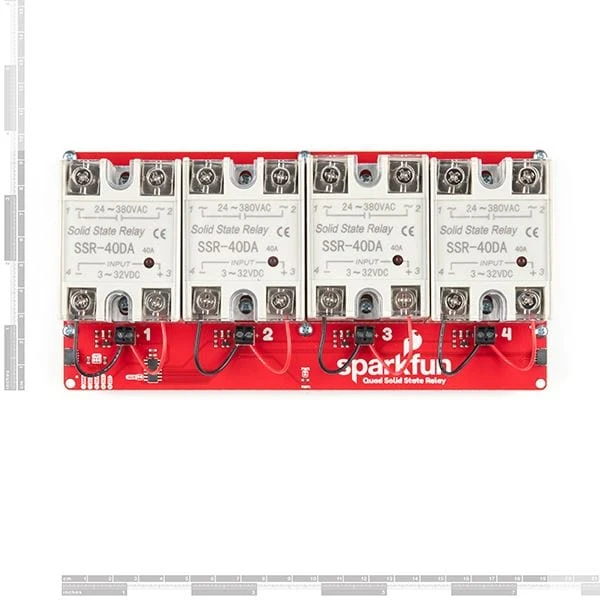

• Board Dimensions

• Hookup Guide

• Datasheet

  (Relay)

• Qwiic Resource Page

• Arduino Library

• Python Package

  • ReadtheDocs

• Hardware GitHub Repository
