SPI/I2C Monochrome 60×32 0.5″ OLED Display

OCELL is a 0.5″ micro OLED display designed for Arduino and other microcontrollers. This micro OLED display is small as the grown-up’s fingernail- 0.5″ only. It has 450cd/m^2 screen brightness with extremely high contrast and readability; moreover, it contains 60 x 32 independent white OLED pixels that each can be separately controlled by the driver chip. This means you can display any images and words on the screen . Except this, the spontaneous light OLED display does not require a backlight, which greatly reduces the power consumption.

The Oled screen supports SPI (Default setting ) and I2C interface. You could connect it to Ardunio micro directly without doing any PCB layout by yourself, also you could wire it to any other MCUs like STM series , 51 series and so on.

• Operating Voltage: 3.3V -5V
• PCB dimension: 17.8mm x 15.5mm (0.70*0.61″)
• Screen size: 0.5″ inch (W*H: 15.30×10.20 mm)
• Color: Monochrome (white)
• OLED type: PM -OLEDOLED driver: LD7032
• Pixels : 60 x 32
• Contrast: 2000: 1
• Communication: SPI, I2C

• Product Wiki

• Display Specification

• LD7032 Datasheet

• User Guide

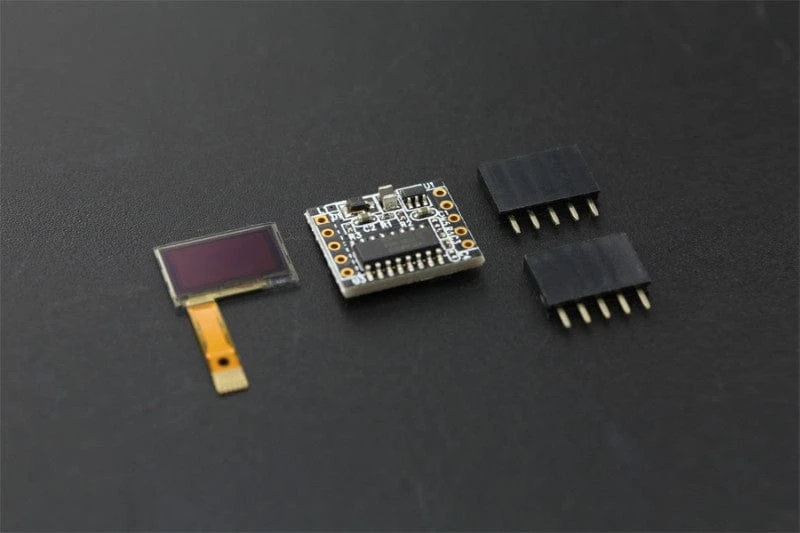

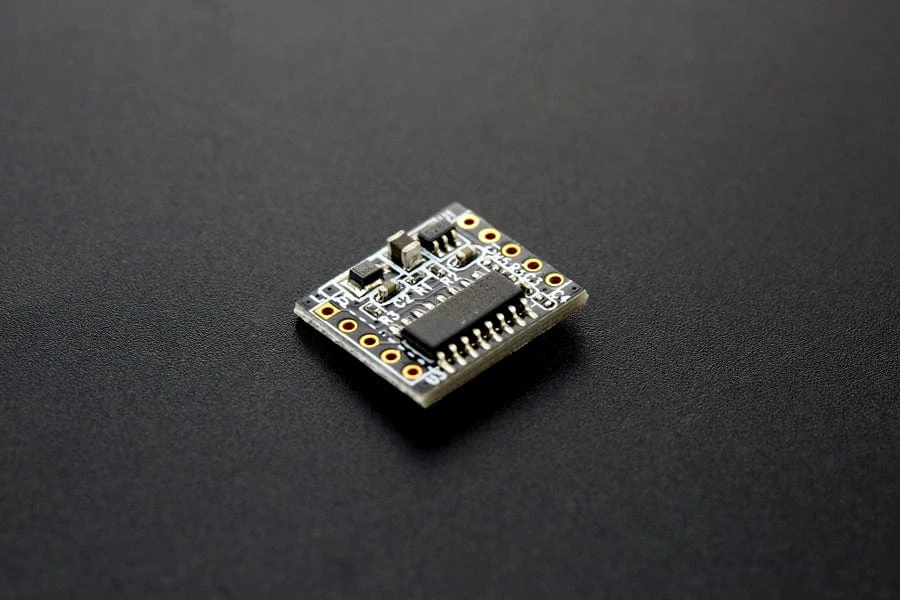

• Micro Oled driver board x1
• 0.5“ Oled Display x1
• 5 Pin header x2
