Uctronics 19″ 1U Raspberry Pi Rack Mount With SSD Mounting Brackets (Holds 4x RPi)

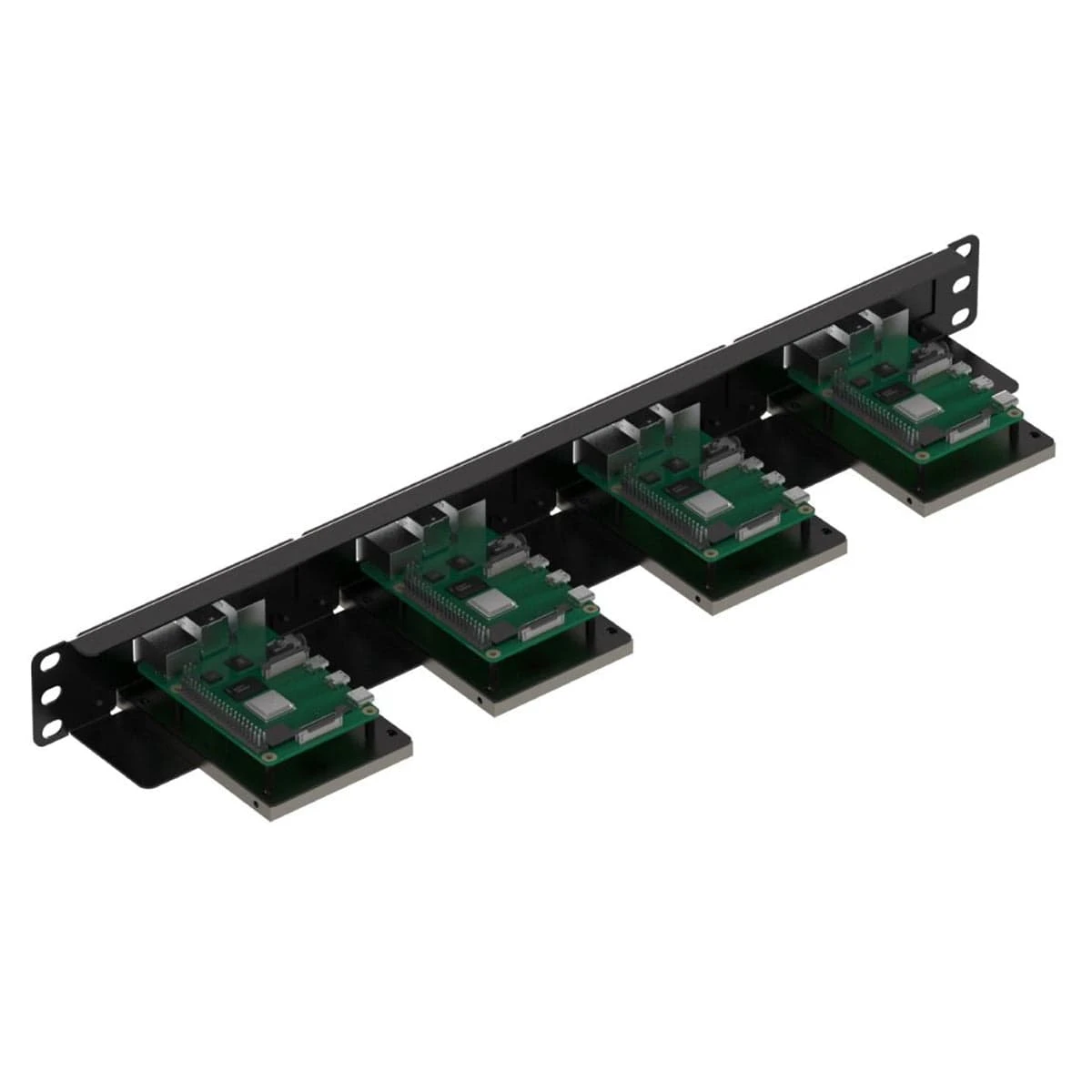

The Uctronics 1U Rack Mount is designed to house four

Raspberry Pi

boards and four

2.5” SSDs

(7mm thickness).

Your boards and SSDs are mounted in the 19″ standard 1U rack, which provides a hardware solution to optimise your workspace for a Raspberry Pi cluster, home media server, home automation system and many more projects!

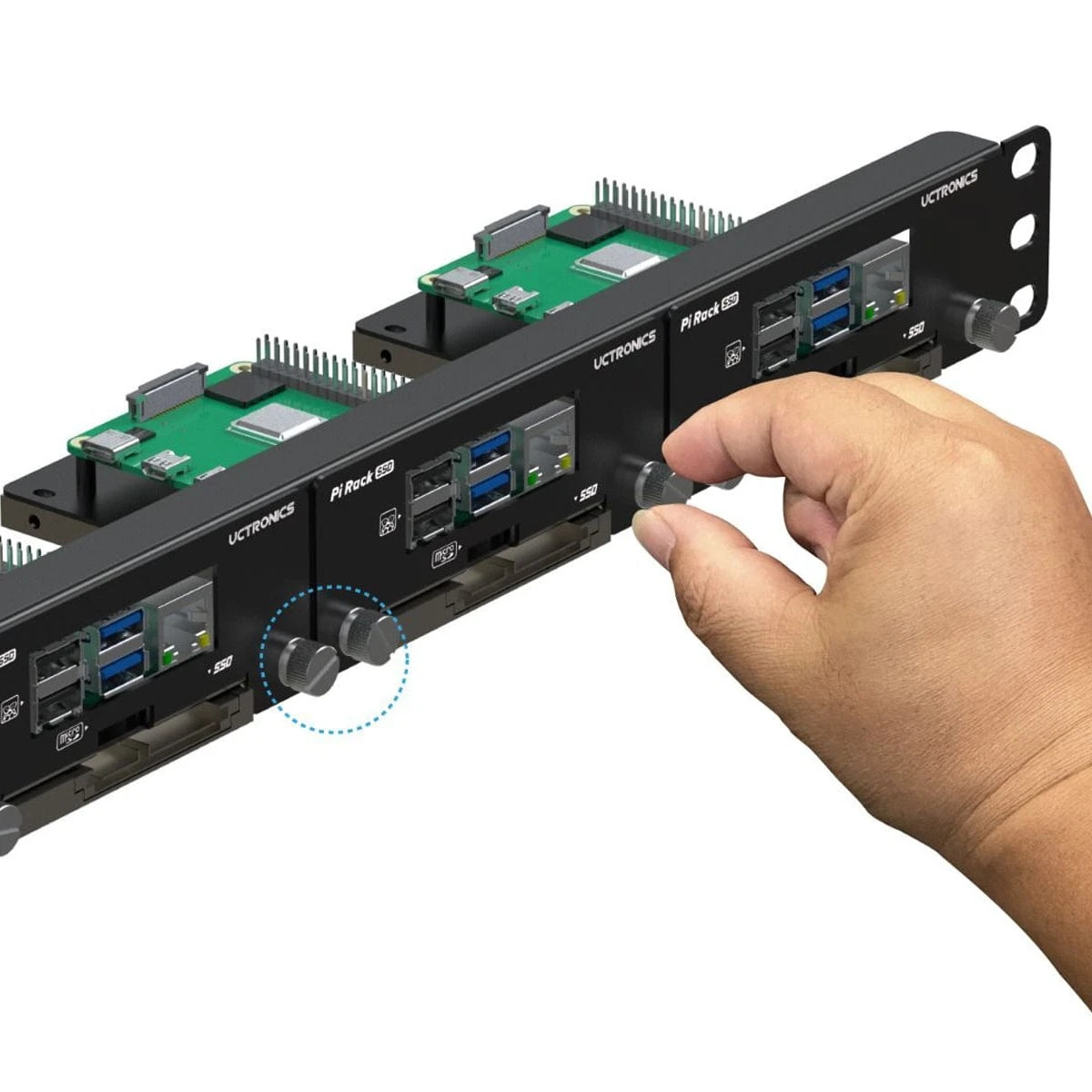

With 8 thumbscrews, each Raspberry Pi can be removed from the front without taking everything apart for maintenance. House up to four SSDs (you will need

SSD USB adapter cables

to connect them to your Raspberry Pis).

The rack is made of 1.2mm carbon steel with a matte black powder-coated finish (plate corners are rounded off smooth).

Note: the delivered product may not have white text on the front of the unit as displayed in the images.

Raspberry Pi boards, SSDs and adapters are not included.

Features

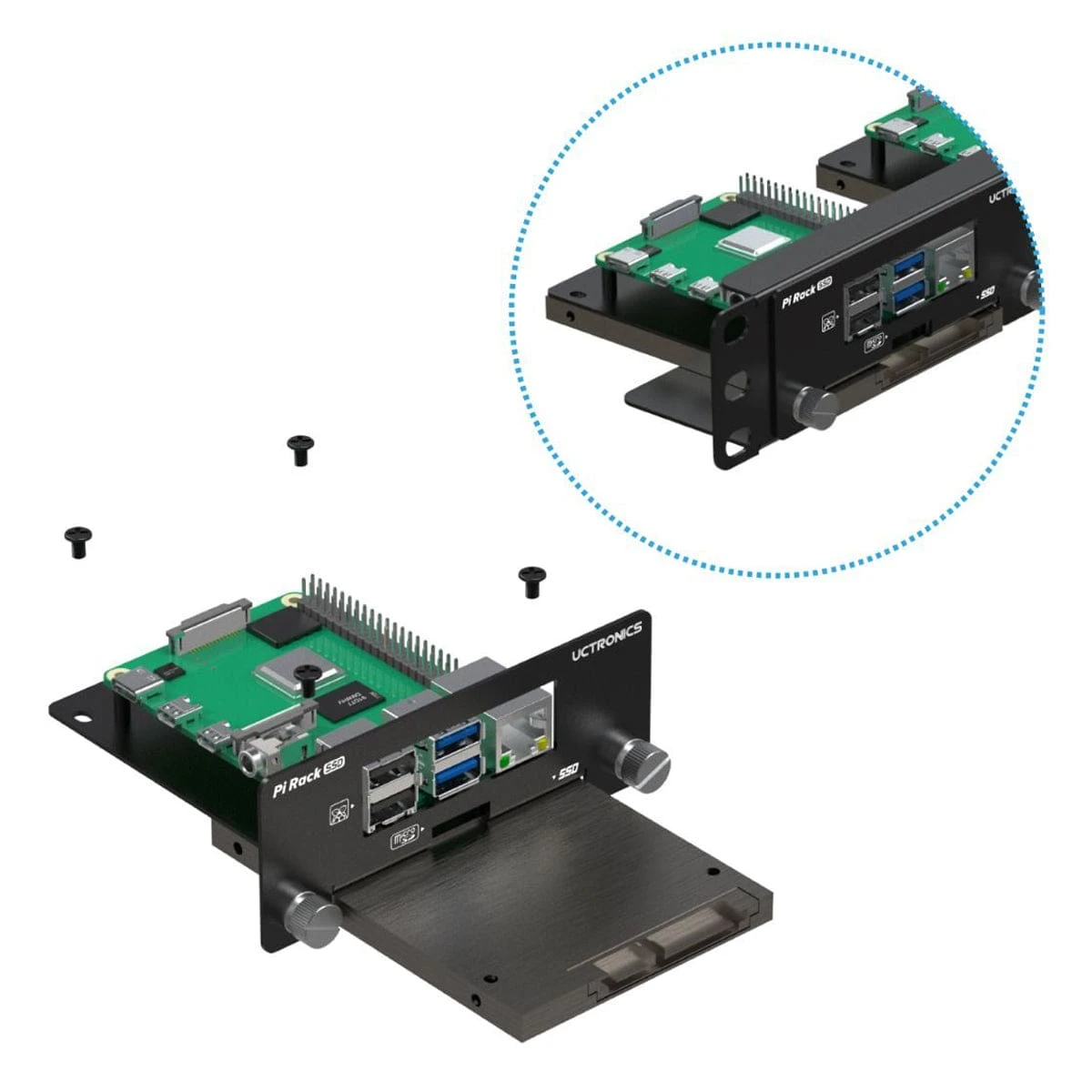

• Design for Raspberry Pi: Supports installation of 4 Raspberry Pis and 4 SSDs, compatible with any 2.5” Solid State Drive (7mm/9mm) and RPi 4B/3B+, and other B/B+ models
• The SSD mounting bracket also has two holes reserved for the optional

  SD card extension adapter

  , which allows you to access the SD card from the front of the rack

• Easy to Setup: Just use two included thumbscrews to mount the rackmount, which adopts a screw-in design, which helps you install and replace quickly and easily
• Applications: This is a hardware solution to get ingenious use of the Raspberry Pi, with this kit and open source software OpenMediaVault, you can use the Pi as a NAS Server, Surveillance station, or even a Web server
• Optional accessories:

  • Micro SD card extension adapter

    . The Raspberry Pi bracket has an opening cut specifically for this adapter, allowing you to access the SD card from the front without having to remove the mounting plate and Raspberry Pi.

  • Compatible with the

    Uctronics Mini POE HAT

• Material: Full metal, aluminium alloy
• Size: 19″ x 1.75″

• We also stock a 5-board version

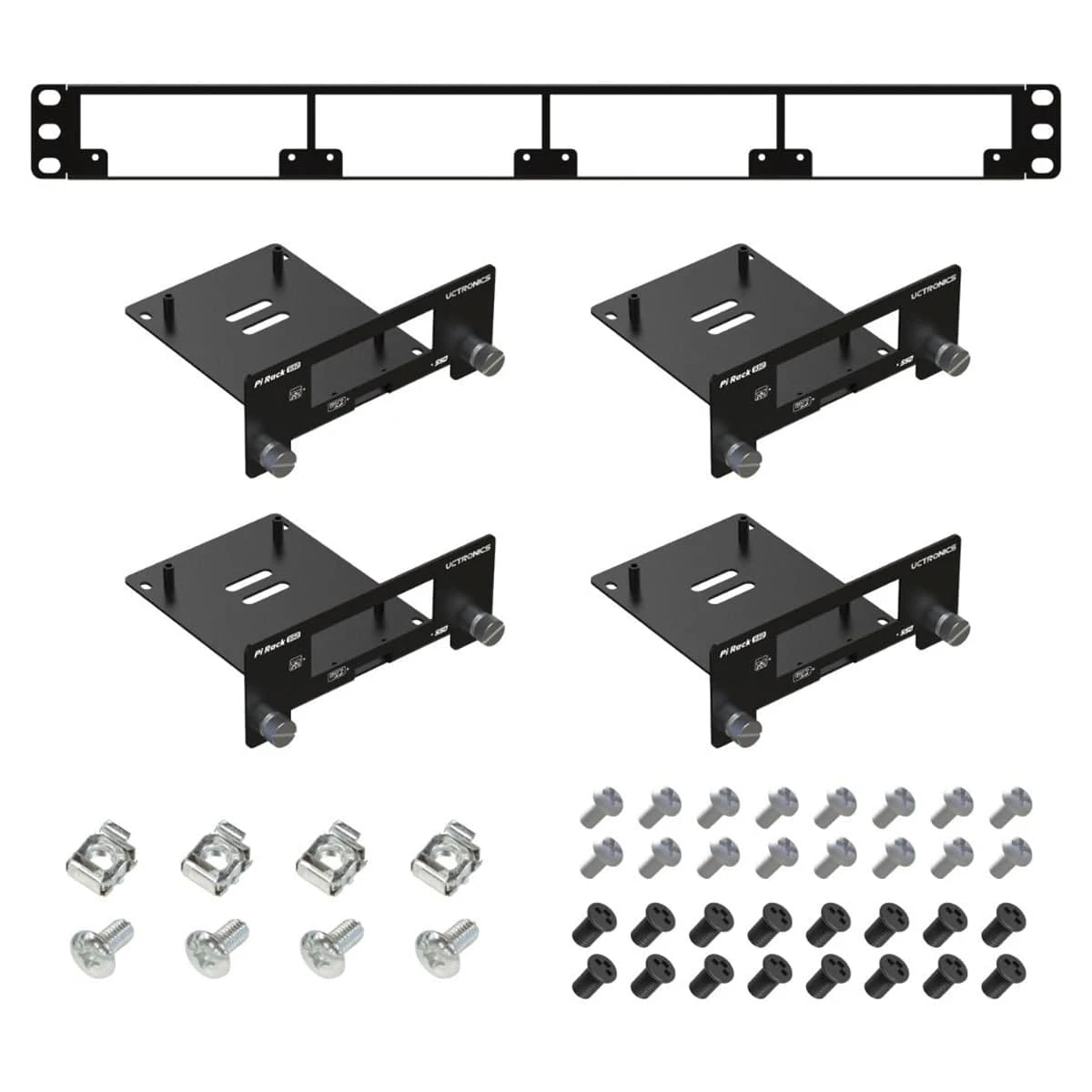

Package Contents

• 1x 1U Rackmount
• 4x Raspberry Pi mounting brackets
• 8x M4 thumbscrews
• 16x M2.5×5 countersunk screws
• 16x SSD screws

Raspberry Pi boards, SSDs and adapters are not included.
