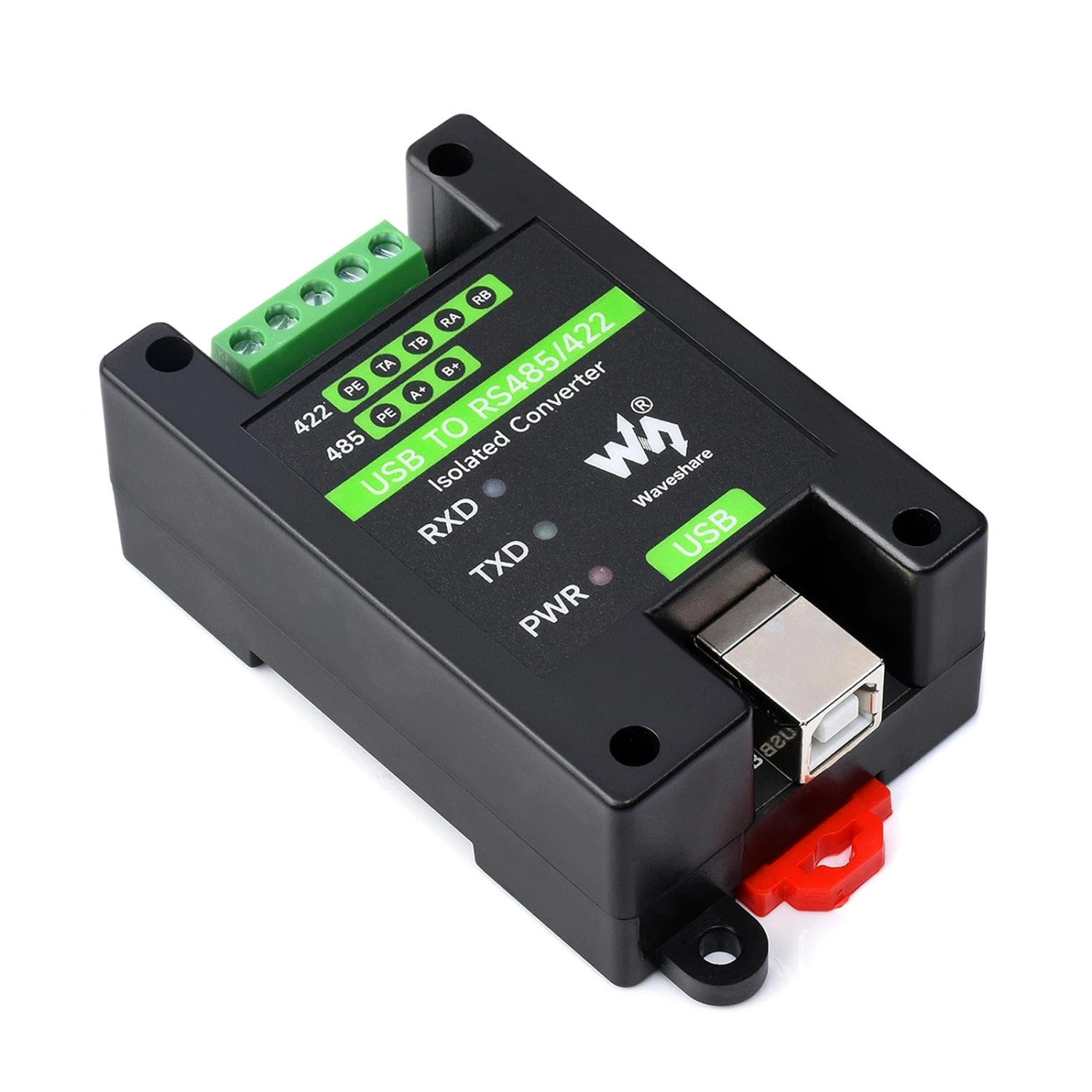

USB To RS485/422 Industrial Grade Isolated Converter

This USB To RS485/422 converter has an FT232RNL and SP485EEN chip solution that provides stable communication and compatibility with built-in galvanic isolation that makes it lightning-proof and offers anti-electrostatic protection. It offers unibody digital isolation that gives signal isolation, high reliability, strong anti-interference, and low power consumption. Offering stability and safety with its multiple protection, using TVS (Transient Voltage Suppressor) it suppresses surge voltage and transient spike voltage in the circuit, while also being lightning-proof and having ESD protection.

With a transmission distance of up to 1.2km (Transmission Distance Is About 1.2km For RS485/422 and about 5 Meters For USB) its 32-device support (it is recommended to use repeaters for more than 16 devices) multi-system support (Mac, Linux, Android, WinCE, Win11/10/8.1/8/7 and XP) and a wall and rail mount support, this versatile and easy to install converter is the one you need!

Features

• Original FT232RL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
• Unibody power supply isolation, provides stable isolated voltage, and needs no extra power supply for the isolated terminal
• Unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
• Self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
• 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
• 120R terminal resistor on the RS485/RS422 ports, enable by default, configurable by jumper
• 3 LEDs for indicating the power and transceiver status
• Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

What’s on Board

Sorry, your browser doesn’t support embedded videos.

1. RXD: Blinking Blue (Data Receiving)

2. TXD: Blinking Green (Data Transmitting)

3. PWR: Light up Red (Power Connected)

4. USB & Power: Connecting to the USB port of the host

Specifications

Baud Rate	FT232RNL	300bps ~ 3Mbps
Host Port	USB
Device Port	RS485/422
USB	Operating voltage	5V
	Connector	USB-B
	Protection	200mA self-recovery fuse, ESD protection
	Transmission distance	About 5m
RS485/422	Connector	Screw terminal
	Pins	A+, B-, PE
	Direction control	Hardware automatic control
	Protection	600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
	Transmission distance	About 1.2km(low rate)
	Transmission mode	Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED Indicators	PWR	Red power indicator, light up when there is USB connection and voltage is detected
	TXD	Green TX indicator, light up when the USB port sends data
	RXD	Blue RX indicator, light up when the device ports send data back
Operating Enviroment	Temperature	-15℃ ~ 70℃
	Humidity	5%RH ~ 95%RH
Operating System	Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP
Appearance	Enclosure	Rail-mount ABS case, suitable for 35mm DIN rail
Dimensions	81.9 × 54.0 × 32.0mm

Resources

• Product Wiki

Package Contents

• 1x USB TO RS485/422
• 1x USB-A male to USB-B male cable 1.2m
• 1x Screwdriver
